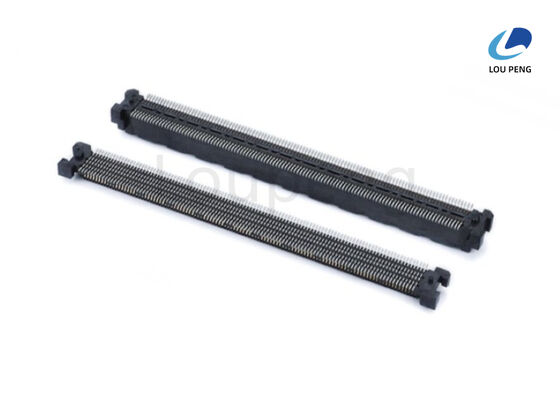

Copper Alloy Terminal And Post Material Board To Board Connector Signal Pin Contact Resistance 50mΩ Max Automated Pick And Place Embossed Tape Packaging

Product Description:

The Board To Board Connector is a high-performance, reliable solution designed for seamless interconnection between printed circuit boards in various electronic applications. As a High Density Board Connector, it offers exceptional space-saving capabilities without compromising on electrical integrity or mechanical stability. This product is ideal for engineers and designers seeking a compact yet robust connection system that supports complex circuitry in a minimal footprint.

One of the standout features of this Stackable Board Connector Assembly is its impressive insertion force specification. The connector requires a maximum insertion force of only 1.5N per pin, with a total maximum force of 40N, ensuring easy and secure mating during assembly. This low insertion force minimizes wear and tear on the connector and the mating boards, enhancing the longevity and reliability of the connection. The careful balance between ease of use and secure engagement makes it particularly suited for applications where frequent mating and unmating are necessary.

Designed to withstand a wide range of environmental conditions, the Board To Board Connector operates efficiently within an ambient temperature range of -55ºC to +125ºC. This broad temperature tolerance ensures the connector performs reliably in extreme conditions, whether in industrial machinery, automotive electronics, or aerospace systems. The use of high-quality polyester as the insulator material contributes significantly to this durability. Polyester insulators provide excellent thermal stability, electrical insulation, and resistance to moisture and chemical exposure, making the connector suitable for demanding environments.

The Right Angle Board Connector configuration enhances versatility by allowing connections between boards mounted at 90 degrees to each other. This form factor is especially useful in compact assemblies where vertical and horizontal board interconnections are required. Its right-angle design supports efficient use of PCB real estate and simplifies the routing of signals between boards, contributing to cleaner, more organized layouts.

Furthermore, the connector is designed with stackability in mind, enabling multiple connectors to be layered to achieve the desired board-to-board spacing. This Stackable Board Connector Assembly capability facilitates flexible design options and customization, accommodating various application requirements without the need for additional mounting hardware. Whether in telecommunications equipment, consumer electronics, or industrial control systems, this connector adapts seamlessly to varying design constraints.

To ensure timely and secure delivery, the Board To Board Connector is available for shipment via multiple reliable methods, including Air Shipment, Sea Shipment, UPS, FEDEX, and DHL. This variety of delivery options allows customers to select the most suitable and cost-effective logistics solution for their needs, ensuring rapid availability for production schedules and project timelines.

Pricing for the Board To Board Connector is competitive and transparent, with the FOB price available upon request. Customers are encouraged to contact the supplier directly to obtain the latest pricing information tailored to their order volume and specific requirements. This approach provides flexibility and supports bulk purchasing decisions while maintaining cost-effectiveness.

In summary, this Board To Board Connector combines the advantages of a High Density Board Connector design with the flexibility of a Stackable Board Connector Assembly and the practicality of a Right Angle Board Connector form factor. Its low insertion force, broad ambient temperature range, and durable polyester insulator material make it a dependable choice for sophisticated electronic assemblies. Coupled with versatile delivery options and customizable pricing, it stands out as a premium connector solution for modern electronic devices.

Features:

• Product Name: Board To Board Connector
• Trial Order Quantity: 2000 Pcs
• Terminal and Post Material: Copper Alloy with Gold Plating over Nickel
• Delivery Methods: Air Shipment, Sea Shipment, UPS, FEDEX, DHL
• Voltage Rating: 50V
• Packing Method: Reel
• Features:
  • High Density Board Connector for compact and efficient design
  • Dual Row Board Connector for enhanced connectivity
  • Right Angle Board Connector suitable for space-saving PCB layouts

Technical Parameters:

Applications:

The LP Board To Board Connector, model number LP-BTB013, is a highly reliable and efficient solution designed for various electrical board connection interface applications. Manufactured in China and certified under ISO-9001:2000 standards, this connector ensures superior quality and performance, making it an ideal choice for modern electronic devices requiring robust board mount connector systems.

With a voltage rating of up to 250V and an insulation resistance of 1000MΩ minimum, the LP-BTB013 connector guarantees safe and stable electrical connections, suitable for use in a wide range of industrial and consumer electronics. Its two-row design and a minimum withdrawal force of 0.15N per pin provide secure mating and easy disconnection when necessary, optimizing both durability and serviceability in electrical board connection interface scenarios.

The LP-BTB013 is particularly suited for automated manufacturing environments due to its embossed tape packaging, which facilitates automated pick and place assembly processes. Packaging options including reel, tube, and tray enhance flexibility in handling and integrating the connector into various production lines. This makes it an excellent choice for mass production with a supply ability of up to 100,000 pieces, meeting the needs of large-scale manufacturing projects.

Applications for the LP Board To Board Connector span numerous occasions and scenarios. It is widely used in telecommunications equipment, computer hardware, industrial control systems, and consumer electronics where reliable board mount connector systems are critical. Its compact design and efficient electrical board connection interface support high-density circuit board configurations, enabling designers to save space without compromising performance.

Moreover, the connector's competitive pricing at $0.06 per piece, with a minimum order quantity of 1000PCS, offers cost-effective solutions for OEMs and contract manufacturers. The delivery time of 7 to 10 days coupled with flexible payment terms including T/T, Western Union, and L/C ensures prompt and convenient procurement.

In summary, the LP-BTB013 Board To Board Connector is a versatile, high-quality component tailored for diverse electrical board connection interface needs. Its robust specifications, efficient packaging, and scalable supply capacity make it a preferred choice across various industries that demand reliable and efficient board mount connector systems.

Customization:

LP offers customized Board To Board Connector solutions under model number LP-BTB013, originating from China and certified with ISO-9001:2000 to ensure quality and reliability. Our Electrical Board Connection Interface is designed with high precision, featuring a PCB Board Interconnect Connector that supports a high density board connector layout for enhanced performance.

The connector terminal and post material use copper alloy with gold plating over nickel, providing excellent conductivity and durability. The insulator is made of polyester, supporting a voltage rating of up to 250V, making it suitable for various electronic applications requiring reliable electrical connections.

We provide flexible packaging options including reel, tube, and tray to meet your specific needs. The minimum order quantity is 1000PCS with a competitive price of $0.06 per piece. Our supply ability can reach up to 100,000PCS with a delivery time of 7 to 10 days.

For your convenience, we accept payment terms such as T/T, Western Union, and L/C. Delivery methods include air shipment, sea shipment, UPS, FEDEX, and DHL to ensure timely and secure delivery worldwide.

Choose LP's Board To Board Connector for a reliable, high density board connector solution that enhances your PCB board interconnect connector applications with superior electrical board connection interface performance.
