Plastic High 3.0mm Dual Row Board Connector Designed for Durable Electronic Assembly Quick Shipping through DHL Service

Product Description:

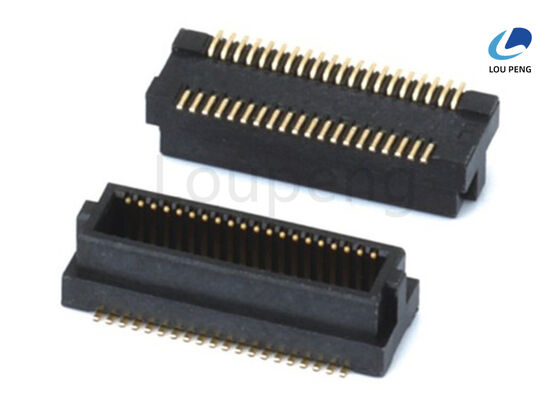

The Board To Board Connector is a high-performance Stackable Board Connector Assembly designed for reliable and efficient electrical interconnections between printed circuit boards (PCBs). This PCB Board Interconnect Connector is engineered to meet the demanding requirements of modern electronic applications, providing superior mechanical and electrical performance in a compact form factor. With its robust construction and precise design, this connector ensures secure and stable connections, making it an ideal choice for various industrial, automotive, and consumer electronics applications.

One of the key features of this Board To Board Connector is its housing material, made from Liquid Crystal Polymer (LCP) with a UL94V-0 flammability rating. The use of LCP not only ensures excellent mechanical strength and dimensional stability but also offers outstanding resistance to heat and flame. This makes the connector highly durable and capable of operating safely in environments with high-temperature conditions. The connector's ambient temperature range spans from -55ºC to +125ºC, allowing it to perform reliably under extreme thermal stress without compromising its functionality or integrity.

The PCB Board Interconnect Connector is designed with user convenience and reliability in mind. It features a low insertion force of 1.5N per pin, with a maximum total insertion force of 40N, facilitating easy and smooth mating and unmating processes. This low insertion force minimizes wear and tear on the connector and the mating boards, extending the lifespan of the components and reducing maintenance needs. The connector’s precise contact design ensures consistent electrical connections while maintaining low contact resistance, which is crucial for signal integrity and power transmission.

In terms of electrical performance, this Stackable Board Connector Assembly is rated to handle a current of 3A per power pin and 0.3A per signal pin, with a maximum total contact current of 5A. This rating makes it suitable for applications requiring both power and signal transmission within a single connector, enhancing design flexibility and reducing the need for multiple connectors. The combination of power and signal pins within one connector streamlines the PCB layout and assembly process, contributing to overall system efficiency and reliability.

The connector is available for trial orders starting at 2000 pieces, offering businesses an opportunity to evaluate its performance and compatibility within their specific applications before committing to large-scale production. This trial order quantity is ideal for prototype development, testing, and initial production runs, ensuring that the connector meets all technical and operational requirements.

Designed with stackability in mind, this PCB Board Interconnect Connector enables multiple boards to be securely connected in a compact stack, saving valuable space in electronic assemblies. Its modular design supports various stacking heights and configurations, allowing engineers to customize their systems according to specific design needs. This adaptability makes the connector a versatile solution for complex electronic systems where space efficiency and reliable interconnections are paramount.

Overall, the Board To Board Connector combines robust material selection, excellent electrical characteristics, and practical design features to deliver a dependable and efficient solution for PCB interconnect needs. Its compliance with stringent safety and performance standards, coupled with its ease of use and adaptability, makes it a preferred choice for engineers and designers looking to enhance the reliability and performance of their electronic systems. Whether used in industrial machinery, automotive electronics, telecommunications, or consumer devices, this PCB Board Interconnect Connector provides a high-quality interconnection solution that meets the demands of modern electronics.

Features:

• Product Name: Board To Board Connector
• Type: Through Hole Board Connector
• Configuration: Dual Row Board Connector
• Application: PCB Board Interconnect Connector
• Embossed Tape Packaging suitable for Automated Pick And Place
• Packing: Reel
• Current Rating: Up to 3A per Power Pin Contact
• Signal Pin Current Rating: 0.3A per Contact (Maximum 5A at Total Contact)
• Trial Order Quantity: 2000 Pcs

Technical Parameters:

Applications:

The LP Board To Board Connector, model number LP-BTB012, is a high-quality, reliable connector designed and manufactured in China. Certified with ISO-9001:2000, this product ensures stringent quality control and consistency, making it an ideal choice for various electronic applications. With a pitch of 0.5mm, 0.8mm, and 1.0mm, it caters to diverse design requirements, offering flexibility and precision in electronic assembly processes.

This Stackable Board Connector Assembly is widely used in industries where compact and efficient electronic connections are essential. Its low insertion force of 1.5N per pin (maximum 40N total) guarantees easy and secure connections without damaging sensitive components. The insulator material made of durable polyester ensures excellent electrical insulation and mechanical stability, supporting long-term reliability in demanding environments.

The LP-BTB012 Through Hole Board Connector is perfectly suited for applications requiring robust mechanical and electrical connections between stacked printed circuit boards (PCBs). It is commonly used in telecommunications equipment, industrial automation, consumer electronics, and computing devices where multiple boards need to be interconnected vertically or horizontally without compromising signal integrity or structural strength.

Thanks to its efficient packaging options—reel, tube, and tray—the connector is compatible with automated pick and place machinery, enhancing manufacturing efficiency and reducing assembly time. The embossed tape packaging facilitates smooth robotic handling, making it an excellent choice for high-volume production lines with a supply ability of up to 100,000 pieces.

With a minimum order quantity of 1000PCS and a competitive price of 0.06 per piece, the LP-BTB012 connector offers great value for manufacturers looking to optimize cost without sacrificing quality. Delivery time ranges between 7 to 10 days, with flexible payment terms including T/T, Western Union, and L/C, ensuring a smooth procurement process. The product can be shipped via air shipment, sea shipment, UPS, FedEx, or DHL, providing versatile logistics options to meet various customer needs.

In summary, the LP Stackable Board Connector Assembly LP-BTB012 is an excellent solution for electronic designers and manufacturers seeking a reliable, cost-effective, and easy-to-integrate board-to-board interconnection solution. Its combination of quality, flexibility, and efficient delivery makes it a preferred choice in modern electronic device assembly.

Customization:

LP presents the Board To Board Connector model LP-BTB012, a high-quality Electrical Board Connection Interface designed to meet your precise needs. Manufactured in China and certified under ISO-9001:2000, this High Density Board Connector ensures reliable performance with a voltage rating of 50V and a dielectric withstanding voltage of 250V AC for one minute.

Our product customization services offer flexible packaging options including Reel, Tube, and Tray to suit your logistics preferences. With a minimum order quantity of 1000PCS and a competitive price of $0.06 per unit, we guarantee both affordability and quality. The connector features two rows and a minimum withdrawal force of 0.15N per pin, ensuring secure and stable Electrical Board Connection Interface applications.

We maintain a strong supply ability of 100,000PCS with a delivery time of 7 to 10 days, supported by convenient payment terms such as T/T, Western Union, and L/C. Contact us to get the latest FOB price and experience customized solutions tailored to your electrical connection requirements.
