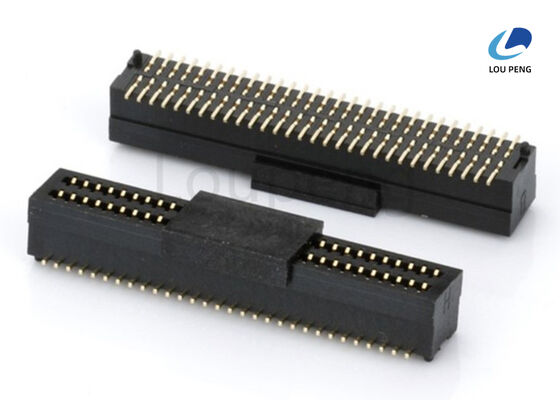

LCP UL94V0 Housing Material Board To Board Connector Rated Up To 3A Per Contact With 50V Voltage Rating Ideal For Electronic Connections

Product Description:

The Board To Board Connector is an advanced Board Mount Connector System designed to provide reliable and efficient electrical connections between printed circuit boards. Engineered with precise specifications and high-quality materials, this connector ensures optimal performance in various electronic applications. It is an ideal choice for industries requiring compact, durable, and high-performance interconnections.

One of the standout features of this Printed Circuit Board Connector is its availability in multiple pitch sizes, including 0.5mm, 0.8mm, and 1.0mm. This range of pitches allows designers and engineers to select the most suitable connector for their specific application, balancing space constraints and electrical requirements. The variety in pitch sizes makes the Board To Board Connector highly versatile and adaptable to a wide array of electronic devices and systems.

In terms of mechanical performance, the Board To Board Connector boasts an insertion force of 1.5N per pin maximum, with a total insertion force not exceeding 40N. This ensures that the connector can be easily mated without requiring excessive force, reducing the risk of damage to the connector or the printed circuit boards during assembly. Additionally, the withdrawal force is carefully calibrated at a minimum of 0.15N per pin, providing a secure connection that resists accidental disconnection while still allowing for straightforward disengagement when necessary.

The contact plating options available for this Board Mount Connector System include both gold plating and tin plating. Gold plated contacts offer superior corrosion resistance and excellent conductivity, making them suitable for high-reliability applications where signal integrity and long-term durability are critical. Tin plating, on the other hand, provides a cost-effective alternative that still maintains good electrical performance and corrosion protection. These plating choices enable customers to tailor the connector to their budget and performance needs without compromising on quality.

Designed with precision and quality in mind, the Board To Board Connector supports seamless integration into various electronic assemblies. It facilitates efficient signal transmission and power delivery between printed circuit boards, contributing to the overall reliability and functionality of the final product. Its compact size and robust construction make it an excellent solution for applications ranging from consumer electronics and telecommunications to industrial equipment and automotive systems.

Furthermore, the connector's design emphasizes ease of use and assembly. The controlled insertion and withdrawal forces help minimize assembly time and reduce wear on both the connector and the mating boards, ensuring a longer service life. This Printed Circuit Board Connector is engineered to meet stringent industry standards, making it a trusted component in demanding environments where performance and reliability are paramount.

In summary, the Board To Board Connector stands out as a high-quality Board Mount Connector System that combines versatility, durability, and precision. With pitch options of 0.5mm, 0.8mm, and 1.0mm, controlled insertion and withdrawal forces, and the choice between gold plated and tin plated contacts, it is perfectly suited for a wide range of electronic applications. Whether used in compact consumer devices or complex industrial systems, this connector ensures secure and reliable connections between printed circuit boards, enhancing the overall performance and longevity of electronic assemblies.

Features:

• Product Name: Board To Board Connector
• Dual Row Board Connector design for reliable electrical connections
• Electrical Board Connection Interface ensuring stable signal and power transfer
• High Density Board Connector suitable for compact electronic assemblies
• Current Rating: Up to 3A per power pin contact and 0.3A per signal pin contact (maximum 5A total contact)
• Voltage Rating: Up to 250V for various applications
• Housing Material: Made from LCP with UL94V-0 flame retardant rating
• Contact Plating Options: Gold Plated or Tin Plated for enhanced conductivity and corrosion resistance

Technical Parameters:

Applications:

The LP-BTB011 Board To Board Connector, manufactured by LP in China, is a versatile and reliable component designed to meet a wide range of electronic assembly needs. Certified under ISO-9001:2000, this connector ensures high quality and consistency, making it an ideal choice for various industrial and consumer applications. With a supply ability of 100,000 PCS and a minimum order quantity of 1000 PCS, the LP-BTB011 is readily available for mass production, offering competitive pricing at just $0.06 per unit.

This connector is engineered with a polyester insulator material, which provides excellent durability and thermal stability. Its contact plating options include both gold plated and tin plated finishes, ensuring optimal conductivity and corrosion resistance. Available in multiple plastic heights ranging from 1.28mm up to 14.5mm, it caters to different design requirements and board spacing needs. The LP-BTB011 supports a voltage rating of 50V and a current rating of up to 3A per contact, making it suitable for low to moderate power applications.

In terms of mounting styles, the LP-BTB011 Board To Board Connector is available as a Right Angle Board Connector, Surface Mount Board Connector, and Through Hole Board Connector. This flexibility allows it to be used in a variety of PCB layouts and configurations, whether space-saving right-angle connections, surface-mounted assemblies, or more robust through-hole installations are needed. The packaging options of reel, tube, or tray further facilitate efficient assembly line processes and storage.

Typical application occasions for the LP-BTB011 include consumer electronics such as laptops, smartphones, and tablets where compact, reliable inter-board connections are essential. It is also widely used in industrial control systems, automotive electronics, and communication devices, where stable electrical performance and ease of assembly are critical. Additionally, the connector is well-suited for use in medical devices and instrumentation, offering dependable connectivity in sensitive equipment.

With a delivery time of 7 to 10 days and flexible payment terms including T/T, Western Union, and L/C, LP ensures a smooth procurement process for manufacturers. Overall, the LP-BTB011 Board To Board Connector stands out as a high-quality, cost-effective solution for various electronic applications requiring robust and adaptable board-to-board connectivity, whether through right angle, surface mount, or through hole configurations.

Customization:

Introducing the LP Board To Board Connector, model number LP-BTB011, proudly made in China and certified with ISO-9001:2000. This product is designed to provide reliable and efficient connections for your electronic devices, featuring a right angle board connector configuration that is ideal for various applications.

The LP-BTB011 serves as a versatile PCB board interconnect connector, offering multiple plastic heights including 1.28mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.3mm, 3.7mm, 4.0mm, 5.0mm, 6.0mm, 6.5mm, 6.6mm, 7.0mm, 7.7mm, 7.8mm, 9.75mm, and 14.5mm to suit different design requirements. Its stackable board connector assembly capability enhances modularity and space-saving in your PCB layouts.

This connector maintains high performance with an insertion force of 1.5N per pin max (40N max total), and a withdrawal force of 0.15N per pin minimum, ensuring secure and stable connections. The durability is rated for a minimum of 30 cycles, providing long-lasting usage in demanding environments.

With a minimum order quantity of 1000PCS and a competitive price of $0.06 per piece, the LP-BTB011 is packaged conveniently in reel, tube, or tray formats to meet your production needs. Our supply ability reaches up to 100,000PCS, ensuring timely fulfillment.

Delivery time is estimated between 7 to 10 days, and we accept flexible payment terms including T/T, Western Union, and L/C. Trust the LP Board To Board Connector for your next project requiring a reliable right angle board connector, PCB board interconnect connector, or stackable board connector assembly solution.

Support and Services:

Our Board To Board Connector product is supported by a dedicated technical support team to ensure seamless integration and optimal performance. We provide comprehensive assistance including product selection guidance, design-in support, and troubleshooting to address any challenges you may encounter during development and production.

Technical documentation such as datasheets, application notes, and design guidelines are readily available to help you understand product specifications and implementation details. For complex applications, our experts offer personalized consulting to tailor solutions that meet your specific requirements.

We also provide after-sales services including warranty support and replacement policies to guarantee the reliability of your projects. Our commitment is to deliver timely and effective support to maximize the value and functionality of your Board To Board Connector installations.

For additional resources and updates, please refer to our online technical library and support forums where you can find FAQs, troubleshooting tips, and user community discussions.

Packing and Shipping:

Our Board To Board Connectors are carefully packaged to ensure maximum protection during transit. Each connector is placed in anti-static bags to prevent electrostatic discharge damage, followed by secure cushioning materials to avoid physical impact. The connectors are then packed in sturdy, labeled boxes to maintain product integrity and facilitate easy identification.

For shipping, we offer various options to accommodate your delivery needs, including standard, expedited, and overnight services. All shipments are tracked with a unique tracking number to provide real-time updates. We work with trusted carriers to ensure timely and safe delivery of your Board To Board Connectors worldwide.
