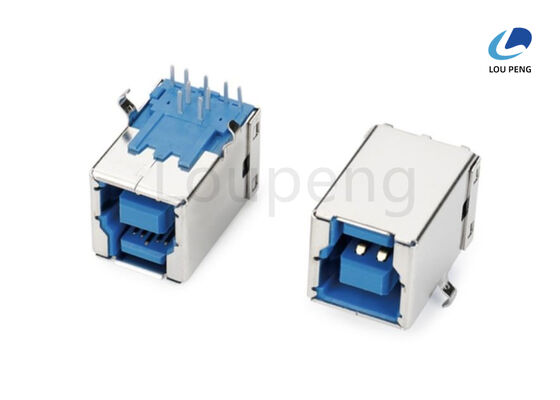

Current Rating 1.5A To 5A USB Connector Featuring IP68 Level Protection and Pressure Resistance Test 250V AC for Outdoor

Product Description:

The Universal Serial Bus Connector is an essential component widely used in various electronic devices to facilitate seamless data transfer and power supply. Designed to meet rigorous industry standards, this USB Data Transfer Connector ensures reliable and efficient connectivity across multiple USB types, including USB 2.0, USB 3.0, USB 3.1, Micro USB, and MINI USB. Its versatility and compatibility make it an indispensable accessory for both personal and professional applications, supporting a wide range of devices such as computers, smartphones, tablets, and peripheral equipment.

One of the standout features of this Universal Serial Bus Connector is its exceptional electrical performance, reflected in its contact resistance specifications. The contact resistance is maintained at a maximum of 40 milliohms for VBUS and GND contacts, ensuring minimal power loss and optimal electrical conductivity. For other contacts, the resistance is capped at 50 milliohms max, which guarantees stable signal transmission and reduces the likelihood of data errors. This low contact resistance is crucial for maintaining the integrity of high-speed data transfer, especially with USB 3.0 and USB 3.1 standards that demand faster and more reliable connectivity.

Another critical aspect of this USB Data Transfer Connector is its mechanical durability and ease of use. The connector insertion force ranges between 5 to 20 Newtons, tested at a maximum rate of 12.5mm per minute. This range ensures that the connector can be inserted smoothly without requiring excessive force, preventing damage to both the connector and the device port. The optimal insertion force contributes to a user-friendly experience, making it easy to connect and disconnect devices repeatedly without wear and tear.

In addition to the insertion force, the overall pull-out force of this Universal Serial Bus Connector is designed to be robust, with a minimum rating of 1.02 kgf. This means the connector remains securely attached during use, preventing accidental disconnections that could interrupt data transfer or power supply. The strong pull-out force enhances the reliability of the connection, which is especially important in environments where devices are frequently moved or handled.

To ensure safety and compliance with electrical standards, the connector undergoes a pressure resistance test at 250V AC. This testing verifies the connector’s ability to withstand high voltage conditions without failure or degradation, providing an added layer of protection against electrical hazards. Such rigorous testing guarantees that the Universal Serial Bus Connector performs reliably under various operating conditions and meets the safety requirements necessary for consumer and industrial electronics.

Overall, this USB Data Transfer Connector offers a perfect balance of electrical performance, mechanical durability, and safety compliance. Its compatibility with multiple USB standards, including USB 2.0, USB 3.0, USB 3.1, Micro USB, and MINI USB, makes it a versatile solution for diverse connectivity needs. Whether you are transferring data, charging devices, or establishing a stable communication link between peripherals, this Universal Serial Bus Connector provides the reliability and efficiency required for modern electronic applications.

In conclusion, investing in this high-quality Universal Serial Bus Connector means ensuring consistent data integrity, robust mechanical stability, and adherence to safety standards. Its low contact resistance, optimal insertion and pull-out forces, and rigorous pressure resistance testing make it an ideal choice for anyone looking to enhance their device connectivity experience. Whether for everyday consumer electronics or demanding industrial setups, this USB Data Transfer Connector stands out as a dependable and efficient component that supports seamless and secure communication between devices.

Features:

• Product Name: USB Connector
• Universal USB Interface Connector
• USB Data Transfer Connector
• Compact USB Connection Interface
• Insulator Resistance: 1000MΩ Min
• Recommended Process: IR Reflow 260°C / 3~5 Seconds
• Mounting Type: Through Hole / Surface Mount / SMT
• Insulator Material: PBT / LCP+30%G.F UL94V-0
• Shell Plated: Ni Plated

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U037, is a high-quality and reliable solution designed for various application occasions and scenarios. Manufactured in China and certified with ISO-9001:2000, this product ensures superior quality and consistency for industrial and commercial use. With a minimum order quantity of 1000PCS and a competitive price of 0.01 per unit, the LP-U037 USB Connector is an excellent choice for businesses seeking cost-effective, high-performance components.

This USB connector serves as a Universal USB Interface Connector, enabling seamless connectivity between devices and peripherals. It is ideal for use in computers, laptops, printers, external hard drives, and other USB peripheral connection interfaces. Its RoHS compliant and halogen-free construction makes it an environmentally friendly option that meets global safety and sustainability standards. The connector's assembly is achieved through soldering, ensuring a strong and durable electrical connection suitable for demanding environments.

The LP-U037 model supports high-speed data transmission, making it a High Speed USB Connector perfect for applications requiring fast and stable data exchange. The connector features gold-plated contacts available in 1U, 15U, or 30U thickness, which enhance conductivity and reduce signal loss. Its insulation impedance is rated at 100MΩ minimum at 250V DC, providing excellent electrical isolation and protection against interference.

Packaging options for the LP-U037 connector include reel, tube, and tray formats, accommodating different production line requirements and ensuring safe transportation. With a supply ability of 100,000PCS and a delivery time frame of 7 to 10 days, this product can support large-scale manufacturing and timely project execution. Payment terms such as T/T, Western Union, and L/C are accepted, offering flexibility and convenience to global customers.

In summary, the LP-U037 USB Connector is perfectly suited for various application occasions, including consumer electronics manufacturing, computer hardware assembly, industrial automation systems, and any scenario requiring a reliable USB peripheral connection interface. Its universal design, high-speed performance, and compliance with international standards make it an indispensable component in modern electronic device connectivity solutions.

Customization:

Brand Name: LP

Model Number: LP-U037

Place of Origin: China

Certification: ISO-9001:2000

Minimum Order Quantity: 1000PCS

Price: $0.01 per unit

Packaging Details: Reel / Tube / Tray

Delivery Time: 7~10 days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 100000PCS

Mounting Type: Through Hole / Surface Mount / SMT

Shell plated: Ni Plated

Dielectric withstanding voltage: 100 VRMS AC Min.

Durability: 10000 Cycles

Plated: 1 U

Our USB Connector model LP-U037 by LP offers a compact USB connection interface designed for reliable and efficient data transfer. This standard USB plug connector is ideal for various applications requiring a USB peripheral connection interface. With options for through hole, surface mount, and SMT mounting types, it ensures versatile integration into your electronic devices. Certified with ISO-9001:2000, this high-quality connector features Ni plated shells for enhanced durability and a dielectric withstanding voltage of 100 VRMS AC minimum, guaranteeing safety and performance. Available in packaging formats of reel, tube, or tray, the LP-U037 meets the needs of mass production with a supply ability of 100,000 pieces and a minimum order quantity of 1000 units. Fast delivery within 7 to 10 days and flexible payment terms including T/T, Western Union, and L/C are offered to support your business requirements.
