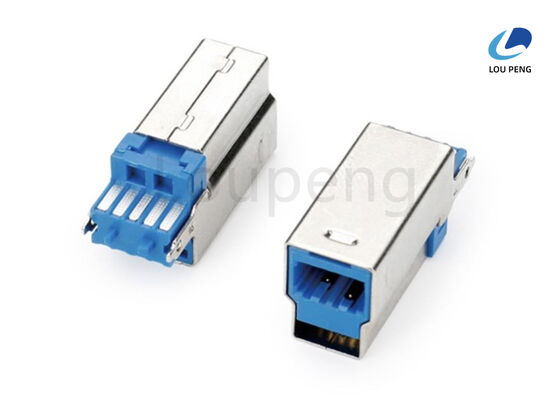

Selective Plating Contact High Speed USB Connector Ni Plated Shell Connector Designed for Data Transfer and Power Supply

Product Description:

The High Speed USB Connector is an essential component designed to deliver reliable and efficient connectivity for a wide range of electronic devices. Engineered with precision and durability in mind, this USB connector offers outstanding performance that caters to both everyday users and professionals who demand high-speed data transfer and robust physical endurance. Its compact USB connection interface makes it an ideal choice for modern devices where space saving without compromising functionality is crucial.

One of the standout features of this USB connector is its impressive data transfer speed. Supporting speeds of up to 10 Gbps with the USB 3.1 standard, it ensures rapid and seamless transmission of large files, high-definition videos, and extensive data sets. This high-speed capability significantly reduces waiting times and enhances the overall efficiency of data handling, making it perfect for USB peripheral connection interfaces in devices such as external hard drives, flash drives, printers, and other peripherals.

Durability is another key attribute of this USB connector. It is designed to withstand up to 10,000 cycles of plug and unplug operations, providing long-lasting reliability even in environments where frequent connections and disconnections are necessary. This remarkable durability minimizes wear and tear, ensuring that the connector maintains a secure and stable connection over time. Users can trust that their devices remain connected without interruption, contributing to a smooth and hassle-free user experience.

The connecting mode of this USB connector is simple and user-friendly, based on a plug/unplug mechanism. This intuitive design allows for quick and easy connection or disconnection of devices without the need for additional tools or complicated setups. It is perfect for users who require fast access to their USB peripherals, making it highly versatile for both personal and professional use.

In terms of construction, the shell of the USB connector is plated with nickel (Ni), which provides enhanced resistance against corrosion and physical damage. This Ni plating not only improves the aesthetic appeal of the connector but also extends its lifespan by protecting the internal components from environmental factors such as moisture and dust. The robust shell plating contributes to the overall reliability of the compact USB connection interface, ensuring consistent performance over prolonged periods.

Moreover, the USB connector has undergone rigorous pressure resistance testing to guarantee its safety and operational integrity. It has been tested to withstand up to 250V AC, ensuring that it can handle electrical stress without compromising the safety or performance of the connected devices. This high standard of pressure resistance makes it suitable for use in a variety of applications where electrical safety is paramount.

In summary, the High Speed USB Connector combines advanced technology, durable construction, and user-friendly design to provide an exceptional USB peripheral connection interface. Its ability to support data transfer speeds up to 10 Gbps, coupled with a sturdy Ni-plated shell and impressive durability of 10,000 plug/unplug cycles, makes it a reliable choice for anyone seeking a compact and efficient USB connection solution. Whether you are connecting external storage devices, peripherals, or other USB-enabled gadgets, this connector offers a seamless and secure connection that caters to modern connectivity demands.

With its compact form factor, high-speed data capabilities, and robust build, the High Speed USB Connector stands out as a vital component for enhancing device connectivity and performance in today’s fast-paced digital world.

Features:

• Product Name: USB Connector
• Type: Universal Serial Bus Connector
• Overall pull-out force: 1.02kgf MIN
• Insulator material: PBT / LCP+30%G.F UL94V-0
• Connector extraction force: 8~20N at a maximum rate of 12.5mm per minute
• Contact resistance: 40 milliohms max for VBUS and GND contacts; 50 milliohms max for other contacts
• Overall insertion force: 3.57kgf MAX
• Compatible with Universal USB Interface Connector standards
• Reliable Universal Serial Bus Connector for various electronic devices

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U036, is a highly reliable and versatile Standard USB Plug Connector designed and manufactured in China. Certified with ISO-9001:2000, this connector ensures high-quality standards suitable for a wide range of electronic applications. Its robust design supports a high-speed data transfer rate, making it an ideal choice for devices requiring efficient and stable USB connections.

This Universal USB Interface Connector is widely used in various electronic devices including computers, laptops, printers, external hard drives, and other peripheral equipment. Thanks to its plug/unplug connecting mode, it provides convenient and secure connections for both personal and professional usage scenarios. The connector insertion force ranges from 5 to 20N at a maximum rate of 12.5mm per minute, ensuring a smooth and reliable connection process without damaging the ports or cables.

With a contact current rating of 3.0A for the VBUS pin and its corresponding GND pin, and a minimum of 0.25A for all other contacts, the LP-U036 USB connector guarantees stable power delivery to connected devices. It also withstands a pressure resistance test of 250V AC, ensuring durability and safety under different operating conditions. The recommended manufacturing process involves IR Reflow at 260°C for 3 to 5 seconds, which supports efficient and high-quality assembly.

This High Speed USB Connector is especially suitable for manufacturing environments needing bulk orders, with a minimum order quantity of 1000PCS and a supply ability of up to 100,000PCS. Packaging options include reel, tube, or tray, catering to various logistics and handling preferences. The delivery time is typically between 7 to 10 days, making it a dependable option for timely production schedules. Payment terms are flexible, accepting T/T, Western Union, and L/C, facilitating smooth international transactions.

In summary, the LP-U036 USB connector is an essential component for any electronics manufacturer or repair professional seeking a dependable, high-performance, and cost-effective USB connector solution. Its universal compatibility, high-speed capability, and robust construction make it ideal for diverse applications ranging from consumer electronics to industrial devices.

Customization:

Introducing the LP USB Connector, model number LP-U036, a high-quality USB Peripheral Connection Interface designed and manufactured in China. This USB Communication Port Connector is certified with ISO-9001:2000, ensuring top-notch quality and reliability for your USB Power and Data Connector needs.

Constructed from premium copper alloy with gold or nickel plating, the connector offers excellent conductivity and durability. It features a robust protection level of IP67, making it resistant to dust and water ingress, ideal for various industrial and consumer applications.

The insulator material is made from PBT / LCP with 30% glass fiber, rated UL94V-0 for flame retardancy, ensuring safe and stable performance. With a contact resistance of 40 milliohms max for VBUS and GND contacts and 50 milliohms max for other contacts, this connector guarantees efficient power and data transmission.

The dielectric withstanding voltage is AC 100V, providing secure insulation under operating conditions. Available packaging options include reel, tube, and tray to suit different assembly requirements.

With a supply ability of 100,000 PCS and a minimum order quantity of 1000 PCS, we offer competitive pricing at 0.01 per unit. Delivery time is typically 7 to 10 days, and payment terms include T/T, Western Union, and L/C to facilitate smooth transactions.

Choose the LP-U036 USB Connector for your USB Peripheral Connection Interface, USB Communication Port Connector, and USB Power and Data Connector requirements, combining quality, performance, and reliability.
