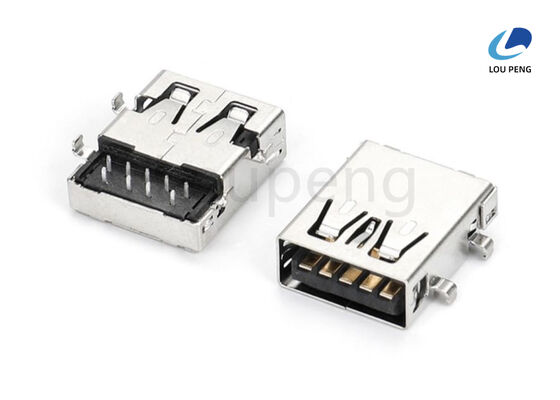

Pressure resistance test 250V AC USB Connector made with Copper Alloy and Steel Shell and Insulation Impedance 100MΩ MIN 250V DC ensuring performance

Product Description:

The USB Connector is a versatile and reliable solution designed to meet the demanding needs of modern electronic devices. Engineered with precision, this connector ensures seamless data transmission and robust physical performance, making it an ideal choice for various applications requiring a dependable USB interface. Whether you are integrating it into consumer electronics, industrial equipment, or communication devices, this USB Data Transfer Connector offers exceptional functionality and durability.

One of the key features of this USB Connector is its flexible mounting options. It supports Through Hole, Surface Mount, and SMT (Surface Mount Technology) mounting types, providing adaptability for different PCB designs and manufacturing processes. This flexibility allows engineers and designers to choose the most suitable mounting method to optimize assembly efficiency and product reliability.

In terms of electrical performance, this connector is rated to handle current loads ranging from 1.5A to 5A. This wide current rating range caters to various power requirements, ensuring the connector can reliably support everything from low-power USB devices to more demanding peripherals. The connector's design ensures stable electrical contact and minimal resistance, contributing to efficient power delivery and consistent signal integrity.

Durability and reliability are further enhanced by the connector's overall insertion force, which has a maximum rating of 3.57kgf. This ensures that the connector can be securely mated and unmated multiple times without compromising the mechanical or electrical performance. The precise engineering behind the insertion force guarantees a firm connection while maintaining ease of use for the end-user.

Protection against environmental factors is a critical consideration for many applications. This USB Connector boasts an impressive IP67 protection level, making it resistant to dust ingress and capable of withstanding immersion in water up to a depth of 1 meter for 30 minutes. This high level of protection ensures reliable operation even in harsh or challenging environments, extending the lifespan of the device and reducing maintenance needs.

Safety and insulation are paramount in connector design. This USB Connector features a dielectric withstanding voltage of AC 100V, which provides excellent insulation between contacts and protects against electrical breakdowns or shorts. This characteristic is essential for maintaining signal quality and ensuring user safety, especially in environments where electrical interference or surges may occur.

Designed to support high-speed data communication, this product qualifies as a High Speed USB Connector, facilitating rapid and stable data transfers. It is fully compatible with standard USB protocols, making it suitable for use with a broad range of devices including computers, smartphones, external storage, and peripherals. Its efficient signal transmission capabilities minimize data loss and interference, ensuring a smooth user experience.

The Standard USB Plug Connector design adheres to industry norms, ensuring compatibility with a wide array of USB cables and ports. This standardization simplifies integration into existing systems and guarantees interoperability across devices from different manufacturers. The connector’s robust construction and precise dimensions make it a reliable component in any USB-based application.

In summary, this USB Connector is a high-quality, adaptable, and durable component that combines flexible mounting options, a broad current rating, secure mechanical connections, and excellent environmental protection. With its IP67 rating, dielectric strength, and support for high-speed data transfer, it stands out as an ideal choice for engineers seeking a dependable USB Data Transfer Connector. Whether you require a connector for consumer electronics, industrial machinery, or communication devices, this Standard USB Plug Connector delivers reliable performance and long-lasting service, ensuring your projects meet the highest standards of quality and functionality.

Features:

• Product Name: USB Connector
• Connecting Mode: Plug/unplug for easy and reliable connections
• Contact Impedance: 30mΩ MAX ensuring stable signal transmission
• Insulator Resistance: 1000MΩ Min for excellent electrical insulation
• Mounting Type: Through Hole, Surface Mount, and SMT options available
• Insulator Material: PBT / LCP+30%G.F with UL94V-0 flame retardant rating
• Featuring a Universal USB Interface Connector design for broad compatibility
• Durable and high-quality Universal USB Interface Connector suitable for various applications
• Reliable Universal USB Interface Connector ensuring consistent performance

Technical Parameters:

Applications:

The LP brand USB Connector, model number LP-U035, is a high-quality Standard USB Plug Connector designed and manufactured in China. Certified with ISO-9001:2000, this product ensures reliability and superior performance for a wide range of applications. With a current rating ranging from 1.5A to 5A and a dielectric withstanding voltage of AC 100V, the LP-U035 is perfect for establishing secure and efficient USB Peripheral Connection Interfaces in various electronic devices.

Thanks to its durable construction, which uses copper alloy with gold or nickel plating and contacts plated with Au in thicknesses of 1U, 15U, or 30U, the LP-U035 guarantees excellent conductivity and corrosion resistance. This makes it ideal for use in both consumer electronics and industrial equipment where a Universal Serial Bus Connector is required for reliable data transfer and power delivery.

The LP-U035 USB Connector is widely applied in occasions such as computer peripherals, mobile devices, digital cameras, printers, and gaming consoles. Its packaging options, including reel, tube, or tray, cater to different production needs, while the recommended IR Reflow process at 260°C for 3 to 5 seconds ensures optimal soldering quality during assembly. With a supply ability of 100,000 pieces and a minimum order quantity of 1000 pieces, the product supports large-scale manufacturing projects efficiently.

In addition to consumer electronics manufacturing, the LP-U035 is suitable for use in automotive electronics, medical devices, and communication equipment where a reliable USB interface is essential. Its design supports quick and secure connections, making it a preferred choice for engineers and manufacturers aiming to enhance device connectivity and user experience.

With a competitive price of 0.01 per piece and flexible payment terms including T/T, Western Union, and L/C, the LP-U035 USB Connector is an economical yet high-quality solution. Delivery times range from 7 to 10 days, ensuring prompt supply to meet urgent production schedules. Overall, the LP-U035 Standard USB Plug Connector stands out as a versatile and dependable component for various USB Peripheral Connection Interface applications across multiple industries.

Customization:

LP offers high-quality USB Connector products, model number LP-U035, originating from China and certified with ISO-9001:2000. Our USB Connectors serve as reliable External Device Connection Ports and USB Data Transfer Connectors, ensuring seamless connectivity for various applications.

Designed as a Universal Serial Bus Connector, the LP-U035 supports multiple types including USB 2.0, USB 3.0, USB 3.1, Micro USB, and MINI USB. It is RoHS Compliant and Halogen Free Compliant, promoting environmental safety and sustainability.

The product features flexible mounting types including Through Hole, Surface Mount, and SMT, with recommended IR Reflow process at 260°C for 3 to 5 seconds. It also boasts a dielectric withstanding voltage of 100 VRMS AC minimum, ensuring durability and reliability in operation.

We offer packaging options such as Reel, Tube, or Tray to suit different manufacturing needs. With a minimum order quantity of 1000PCS, a competitive price of 0.01 per unit, and a supply ability of 100,000PCS, we ensure timely delivery within 7 to 10 days.

Payment terms include T/T, Western Union, and L/C, providing convenient and secure transaction methods. Choose LP's USB Connector LP-U035 for your External Device Connection Port needs and experience superior performance in USB Data Transfer Connectors.

Support and Services:

For technical support and services related to USB Connector products, please refer to the product documentation provided with your purchase. Our support team is dedicated to assisting you with installation, troubleshooting, and maintenance to ensure optimal performance of your USB Connector.

We offer comprehensive resources including user manuals, FAQs, and software updates to help you get the most out of your USB Connector. If you encounter any issues, please make sure to check these resources first as they cover the most common problems and solutions.

In case you need further assistance, our technical support specialists are available to guide you through advanced troubleshooting steps and provide replacement services if necessary, subject to the terms and conditions of your product warranty.

Regular maintenance and proper usage of your USB Connector will enhance its longevity and reliability. Please follow the guidelines outlined in the user manual to avoid damage and ensure safe operation.

We are committed to providing high-quality support and services to meet your needs and ensure your satisfaction with our USB Connector products.

Packing and Shipping:

Each USB Connector is carefully packaged in a protective blister pack to prevent damage during transit. The packaging includes a clear window to showcase the product and detailed instructions for easy installation.

For shipping, all USB Connectors are securely boxed with cushioning materials to ensure they arrive in perfect condition. We offer various shipping options to meet your delivery needs, including standard and expedited services.
