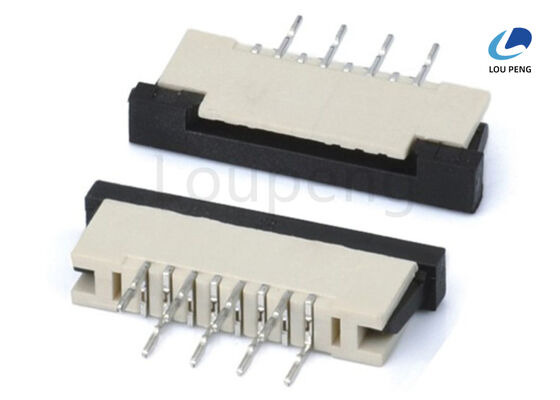

Dielectric Withstanding AC 500V Flexible Printed Circuit Connector Sample Free Ensuring Connection Performance and Long Service Life

Product Description:

The FPC / FFC Connector is a highly reliable and versatile solution designed for connecting Flexible Printed Circuit (FPC) boards and Flat Flexible Cables (FFC) in various electronic applications. This connector is available in two primary types: Zero Insertion Force (ZIF) and Low Insertion Force (LIF), providing users with options that best suit their specific assembly and operational needs. These connector types ensure ease of installation and removal, minimizing the risk of damage to the delicate FPC and FFC components during mating and unmating processes.

Constructed with premium materials, the insulation of this FPC / FFC Connector is made from Liquid Crystal Polymer (LCP) or Nylon 6T, both of which comply with UL94V-0 flammability standards and RoHS regulations. LCP is known for its excellent mechanical strength, thermal stability, and chemical resistance, making it an ideal choice for high-performance electronic connectors. Nylon 6T offers exceptional durability and flame retardancy, ensuring the connector maintains its integrity even under demanding environmental conditions.

This connector is specifically designed to operate reliably within a wide temperature range of -40°C to +105°C, making it suitable for use in diverse industrial, automotive, and consumer electronics applications. The ability to function across such a broad temperature spectrum guarantees stable electrical performance and mechanical connection in both extreme cold and high-heat environments.

A standout feature of this FPC / FFC Connector is its impressive durability, rated for up to 20,000 mating cycles. This high mating cycle count ensures long-lasting performance and reliability, reducing the need for frequent replacements or maintenance. This durability is particularly beneficial for applications that require frequent disconnections and reconnections, such as testing equipment, modular devices, and prototyping setups.

Additionally, the product offering includes free samples, allowing engineers and designers to evaluate the connector’s compatibility and performance within their specific applications before committing to larger orders. This facilitates smoother product development cycles and minimizes the risk of procurement errors.

As an essential component in electronic assemblies, this FPC / FFC Connector serves as a critical interface for FFC Cable Assembly Connector solutions. It provides a secure and stable connection between FPC Board to Board Connector configurations, enabling efficient signal transmission and power delivery in compact and complex electronic systems. Its robust design and reliable performance make it a preferred choice for manufacturers seeking high-quality connectors that meet stringent industry standards.

In summary, the FPC / FFC Connector combines advanced material engineering with thoughtful design to offer a dependable connection solution for FFC Cable Assembly Connector and FPC Board to Board Connector applications. Its ZIF and LIF connector types, high-grade insulation materials, wide operating temperature range, exceptional durability, and availability of free samples make it an indispensable component in modern electronic device manufacturing. Whether used in consumer electronics, automotive systems, industrial equipment, or telecommunications, this connector exemplifies the perfect balance of functionality, durability, and ease of use.

Features:

• Product Name: FPC / FFC Connector
• Compatible with FFC Flexible Flat Cable Connector and Flexible Printed Circuit Connector applications
• Provides reliable Flexible Flat Cable Interface solutions
• Maximum processing temperature: 230°C for 30 to 60 seconds, and 260°C for 10 seconds
• Insulator resistance: Minimum 500 Megohms
• Available pitch options: 0.5mm, 1.0mm, 1.25mm, and 1.27mm
• Durability: Supports up to 20,000 mating cycles
• Locker material made of PPS with UL94V-0 rating, compliant with RoHS standards

Technical Parameters:

Applications:

The Loupeng LP-FPC046 is a high-quality FPC Board to Board Connector designed to meet the demanding needs of modern electronic applications. Manufactured in China and certified under ISO-9001:2000, this Flat Flexible Cable Connector offers reliable performance with an insulator resistance of 500 megohms minimum and an operating temperature range from -40°C to +105°C. Its gray or black color options and gold plating or tin plating ensure durability and excellent conductivity, making it an ideal choice for various industrial and consumer electronics.

This FPC Electronic Connector Type is widely used in scenarios where compact, efficient, and reliable connections are essential. For instance, it is commonly employed in consumer electronics such as smartphones, tablets, and laptops, where space-saving and high-density connections between FPC boards are critical. The LP-FPC046 supports both Surface Mount Technology (SMT) and Through Hole Technology (THT), providing versatile mounting options to suit different manufacturing processes and design requirements.

In addition to consumer electronics, the LP-FPC046 Flat Flexible Cable Connector is also highly suitable for automotive electronics, medical devices, and industrial equipment. Its robust construction and reliable performance under harsh environmental conditions, including extreme temperatures, make it perfect for automotive control systems, diagnostic instruments, and portable medical devices. The connector’s ability to maintain stable electrical contact under vibration and thermal stress ensures long-term reliability in these critical applications.

The packaging details, available in reels or tubes, facilitate efficient assembly line integration, while the minimum order quantity of 1000PCS and competitive pricing at $0.03 per piece make it an economical choice for large-scale production. With a supply ability of 100,000PCS and a delivery time of 8 to 12 days, Loupeng ensures timely availability to meet urgent project deadlines. Payment terms such as T/T and L/C provide flexible options to accommodate different business needs.

Overall, the Loupeng LP-FPC046 FPC Board to Board Connector is a versatile and dependable solution for any application requiring secure, high-density connections between flat flexible cables and printed circuit boards. Whether it’s in consumer electronics, automotive systems, medical devices, or industrial controls, this FPC Electronic Connector Type delivers consistent performance and long-lasting reliability.

Customization:

Loupeng offers high-quality FPC / FFC Connectors under model number LP-FPC046, originating from China and certified with ISO-9001:2000. Our Flat Printed Cable Connector is designed to meet diverse customization needs with a minimum order quantity of 1000PCS and a competitive price of $0.03 per unit.

The Flexible Flat Cable Interface features reliable insulation materials such as LCP (Liquid Crystal Polymer) and Nylon 6T, both UL94V-0 and RoHS compliant, ensuring safety and environmental standards. The connector housing is made from durable PPS material, also UL94V-0 and RoHS certified, providing excellent performance and longevity.

This FPC Electronic Connector Type supports various pitch options including 0.5mm, 1.0mm, 1.25mm, and 1.27mm, with a current rating of 0.5 Amps and maximum contact resistance of 20 milliohms, making it ideal for precision electronic applications.

Packaging is available in reels or tubes, facilitating efficient handling and assembly. We guarantee a delivery time of 8 to 12 days and support flexible payment terms including T/T and L/C. With a supply ability of 100,000PCS, Loupeng ensures timely fulfillment of your bulk orders.

Choose Loupeng’s LP-FPC046 for your custom FPC / FFC Connector requirements, combining quality, reliability, and excellent service tailored to your electronic connectivity needs.
