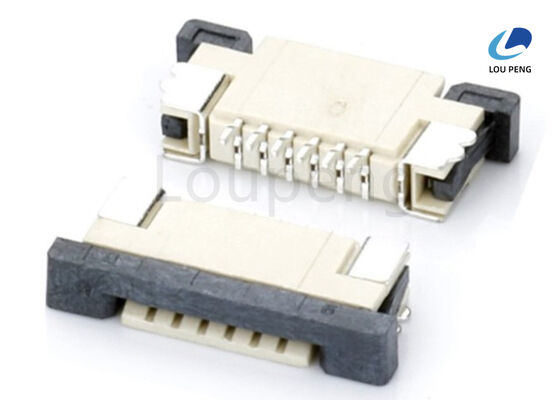

Tin Plated Flat Flexible Cable Connector Contact Resistance 20max Ensuring Stable Electrical Performance in Flexible Circuit Assemblies

Product Description:

The FPC / FFC Connector is a highly reliable and versatile component designed to provide seamless connections in various electronic applications. Known for its exceptional durability, this connector supports up to 20,000 mating cycles, ensuring long-lasting performance and consistent connectivity over extended periods of use. Its robust design makes it ideal for devices and systems that require frequent mating and unmating without compromising connection integrity.

This connector is available in two primary colors, gray and black, allowing for easy identification and integration into different design schemes. Whether your project demands a subtle, professional look or a distinct visual cue, the color options cater to various aesthetic and functional requirements. The choice of colors also helps in minimizing errors during assembly and maintenance, enhancing overall operational efficiency.

One of the key features of this product is its connector type, offering both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) variants. The ZIF connectors are designed to minimize the force needed for insertion and removal, protecting delicate flat printed cables from potential damage during installation. On the other hand, LIF connectors provide a reliable and secure connection with slightly higher insertion force, suitable for applications where mechanical stability is paramount. This flexibility in connector types ensures compatibility with a wide range of flexible flat cable interfaces and user preferences.

The FPC / FFC Connector supports multiple pitch sizes, including 0.5mm, 1.0mm, 1.25mm, and 1.27mm. This variety allows engineers and designers to select the most appropriate pitch according to their specific space constraints and electrical requirements. Whether the application demands a compact solution with fine pitch spacing or a more robust connection with wider pitch, this connector range accommodates those needs effortlessly.

In addition to its technical specifications, the product offers free samples, enabling potential users to evaluate the connector’s performance and compatibility with their flexible flat cable interface before making a purchase commitment. This sample provision underscores the manufacturer’s confidence in the product’s quality and suitability across diverse applications.

As a flat printed cable connector, this product is engineered to deliver superior electrical performance and mechanical reliability. It plays a crucial role in ensuring signal integrity and stable connections within various electronic assemblies. The connector is particularly effective in bridging flexible flat cables to printed circuit boards or other electronic components, facilitating compact and efficient device designs.

Furthermore, the FPC / FFC Connector is an excellent choice for FFC cable assembly connector applications, where flexibility, durability, and ease of use are critical. Its design accommodates the dynamic nature of flexible cables, reducing stress and potential damage during operation. This results in improved product lifespan and reduced maintenance costs over time.

Overall, the FPC / FFC Connector stands out as a dependable, adaptable, and user-friendly solution for connecting flat printed cables in modern electronic devices. Its combination of high durability, multiple pitch options, connector type versatility, and color choices makes it a preferred component among engineers and manufacturers aiming for optimal performance and reliability in their flexible flat cable interface projects.

Features:

• Product Name: FPC / FFC Connector
• Insulation Material: LCP (Liquid Crystal Polymer) / Nylon 6T UL94V-0 RoHS compliant
• Contact Resistance: 20mΩ max.
• Operating Temperature Range: -40°C to +105°C
• Durability: Up to 20,000 mating cycles
• Number of Positions: 2 to 50 pins
• Designed for Flexible Flat Cable Interface applications
• Compatible with FFC Flexible Flat Cable Connector standards
• Suitable for FFC Flexible Circuit Connector implementations

Technical Parameters:

This Flexible Flat Cable Interface is designed as an FPC Electronic Connector Type, ideal for use as an FPC Board to Board Connector.

Applications:

The Loupeng LP-FPC044 FPC Board to Board Connector is an essential component designed for reliable and efficient connections in modern electronic devices. Manufactured in China and certified under ISO-9001:2000 standards, this Flat Flexible Cable Connector offers exceptional performance and durability, making it ideal for various application occasions and scenarios.

One of the primary applications of the LP-FPC044 is in consumer electronics, where compact and flexible connections are crucial. It is widely used in smartphones, tablets, laptops, and wearable devices to connect flexible printed circuits (FPC) with other circuit boards. The connector’s excellent contact materials, including copper alloy and phosphor bronze, ensure stable electrical conductivity and resistance to corrosion, which is vital for maintaining device reliability over time.

In the automotive industry, this FPC Electronic Connector Type is utilized in infotainment systems, dashboard displays, and advanced driver-assistance systems (ADAS). Its durability, rated up to 20,000 mating cycles, ensures long-lasting performance even under frequent assembly and disassembly. The solder tab made from phosphor bronze supports high-temperature processing up to 230°C for 30 to 60 seconds, and even up to 260°C for 10 seconds, providing flexibility during manufacturing and repair.

Medical devices also benefit from the LP-FPC044 connector due to its compact size and robust construction. It facilitates reliable connections in diagnostic equipment, portable monitors, and other sensitive instruments where space constraints and high reliability are critical.

The packaging options of reel or tubes make it convenient for automated assembly lines, supporting efficient mass production with a minimum order quantity of 1000PCS and a supply ability of 100,000PCS. With a competitive price of $0.03 per unit and flexible payment terms including T/T and L/C, Loupeng offers an economical solution without compromising quality.

Furthermore, the delivery time of 8 to 12 days ensures timely availability for production schedules. Free samples are also available, allowing engineers and designers to evaluate the connector’s performance before bulk purchasing.

In summary, the Loupeng LP-FPC044 FPC Board to Board Connector is ideal for electronics manufacturing environments requiring reliable, high-durability Flat Flexible Cable Connectors. Its versatile application spans consumer electronics, automotive systems, medical devices, and other high-tech industries, making it a preferred choice for designers and manufacturers seeking quality and cost-efficiency.

Customization:

Introducing the Loupeng LP-FPC044, a high-quality Flexible Flat Cable Interface designed for reliable and efficient electronic connections. This FPC Electronic Connector Type is manufactured in China and certified with ISO-9001:2000, ensuring superior quality and performance.

The LP-FPC044 model supports a number of positions ranging from 2 to 50 pins, accommodating various application needs. With pitch options of 0.5mm, 1.0mm, 1.25mm, and 1.27mm, this Flexible Flat Cable Interface offers versatile compatibility for your projects.

Constructed with phosphor bronze solder tabs, the connector guarantees excellent conductivity and durability. It operates efficiently within a temperature range of -40°C to +105°C, making it suitable for a wide range of environments.

We offer a minimum order quantity of 1000PCS at a competitive price of $0.03 per piece. Packaging is available in reels or tubes for easy handling and storage. Our supply ability reaches up to 100,000PCS, ensuring timely fulfillment of your orders.

Delivery time ranges from 8 to 12 days, and we accept payment terms including T/T and L/C for your convenience. Additionally, free samples are available to help you evaluate the product before making a purchase.

Choose the Loupeng LP-FPC044 Flexible Flat Cable Interface for your next project and benefit from a reliable, certified, and customizable FPC electronic connector solution.
