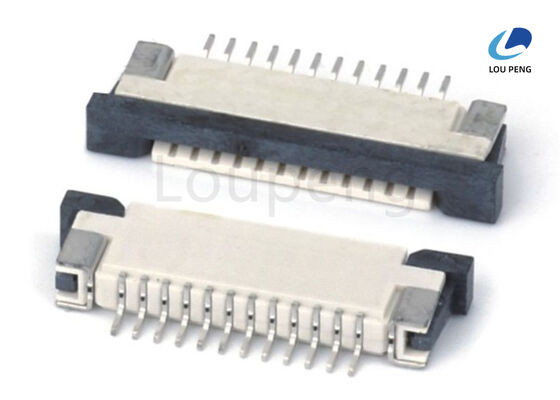

2 To 50 Pins FFC Flexible Flat Cable Connector Designed With Surface Mount Technology SMT And Through Hole Technology THT For Assembly

Product Description:

The FPC / FFC Connector is an essential component designed to provide reliable and efficient connections for Flat Printed Cable Connectors and Flat Flexible Cable Connectors. Engineered with high-performance materials and precision manufacturing processes, this connector delivers exceptional durability and electrical performance, making it ideal for a wide range of electronic applications.

One of the standout features of this FPC / FFC Connector is its remarkable durability, capable of withstanding up to 20,000 mating cycles. This impressive longevity ensures consistent connectivity and reduces the need for frequent replacements, which is critical in both consumer electronics and industrial equipment where reliability is paramount. Whether used in compact devices or complex assemblies, this connector maintains stable electrical contact throughout its lifecycle.

The insulation material used in the construction of this Flat Printed Cable Connector is primarily Liquid Crystal Polymer (LCP) and Nylon 6T, both of which comply with UL94V-0 flammability standards and RoHS regulations. LCP is known for its excellent mechanical strength, thermal stability, and chemical resistance, making it ideal for high-performance connectors. Nylon 6T further enhances the connector's robustness by providing flexibility and resistance to environmental factors. Together, these materials ensure that the connector can operate safely and reliably even in demanding conditions.

This product supports multiple mounting types, including Surface Mount Technology (SMT) and Through Hole Technology (THT), offering versatility in PCB assembly. The SMT option facilitates automated assembly processes and allows for compact and lightweight designs, while the THT option provides strong mechanical stability for applications subjected to mechanical stress or vibration. This flexibility makes the Flat Flexible Cable Connector suitable for a broad spectrum of electronic devices and systems.

The solder tabs are fabricated from phosphor bronze, a material renowned for its excellent electrical conductivity and mechanical resilience. Phosphor bronze solder tabs contribute to the connector's overall reliability by ensuring secure and stable solder joints. Additionally, the connector’s plating options include high-quality gold plating and tin plating. Gold plating provides superior corrosion resistance and excellent conductivity, which is vital for maintaining signal integrity over time. Tin plating, on the other hand, offers cost-effective protection while maintaining good solderability and durability.

Designed with precision and engineered to meet the highest industry standards, this Flat Printed Cable Connector is ideal for applications requiring compact, reliable, and efficient cable interconnections. Its combination of durable materials, versatile mounting options, and robust electrical contacts makes it an excellent choice for manufacturers seeking to optimize performance and longevity in their electronic products.

Whether you are integrating Flat Flexible Cable Connectors in consumer electronics, automotive systems, medical devices, or industrial equipment, this FPC / FFC Connector provides the perfect balance of durability, performance, and ease of assembly. It is a trusted solution that supports the evolving demands of modern electronic connectivity while ensuring compliance with environmental and safety standards.

Features:

• Product Name: FPC / FFC Connector
• Type: FPC Ribbon Cable Connector, Flat Printed Cable Connector, Flexible Flat Cable Interface
• Maximum Processing Temperature: 230°C for 30~60 seconds, 260°C for 10 seconds
• Dielectric Withstanding Voltage: AC 500V
• Insulator Resistance: Minimum 500 Megohms
• Operating Temperature Range: -40°C to +105°C
• Available Colors: Gray and Black

Technical Parameters:

Applications:

The Loupeng LP-FPC040 FPC / FFC Connector is a highly reliable and versatile component designed for a wide range of applications in modern electronic devices. Manufactured in China and certified under ISO-9001:2000, this connector ensures superior quality and performance. Its robust construction, featuring contact materials made of copper alloy and phosphor bronze with gold or tin plating, guarantees excellent conductivity and durability. The connector housing is made from PPS with UL94V-0 rating, meeting RoHS compliance and ensuring safety and environmental standards.

This FFC Flexible Flat Cable Connector is ideal for use in compact electronic assemblies where space-saving and flexible connections are paramount. It supports both Surface Mount Technology (SMT) and Through Hole Technology (THT) mounting types, providing versatility for various PCB designs. With a dielectric withstanding voltage of AC 500V, this connector offers high electrical insulation and reliability, making it suitable for demanding environments.

The Loupeng LP-FPC040 is widely applied in the manufacturing of FFC Cable Assembly Connectors used in consumer electronics such as laptops, smartphones, tablets, and cameras. Its ability to facilitate flexible flat cable connections makes it indispensable in automotive electronics, medical devices, industrial automation, and communication equipment. The connector’s design ensures stable signal transmission and mechanical stability, which is crucial for maintaining device performance over time.

Packaging options including reels and tubes cater to both automated production lines and manual assembly processes, making it convenient for large-scale manufacturing. Loupeng guarantees a supply ability of 100,000 PCS with a minimum order quantity of 1000 PCS, priced competitively at $0.03 per unit. The delivery time ranges from 8 to 12 days, and payment terms such as T/T and L/C provide flexible purchasing options for global clients.

In summary, the Loupeng LP-FPC040 FFC Flexible Flat Cable Connector is an excellent choice for engineers and manufacturers looking for a dependable, high-quality connector for flexible cable assemblies. Its certification, material quality, and design specifications ensure it meets the rigorous demands of modern electronic applications, providing a reliable connection solution in various industries and scenarios.

Customization:

Loupeng offers high-quality Flexible Printed Circuit Connectors, model number LP-FPC040, designed and manufactured in China with ISO-9001:2000 certification. Our FFC Flexible Circuit Connectors are available with connector types ZIF and LIF, supporting 2 to 50 pins to meet various application needs.

These connectors feature excellent dielectric withstanding capability of AC 500V and a current rating of 0.5 Amps, ensuring reliable performance in flexible printed circuit applications. The insulation materials used include LCP (Liquid Crystal Polymer) and Nylon 6T UL94V-0, compliant with RoHS standards for safety and environmental protection.

We offer competitive pricing at $0.03 per unit with a minimum order quantity of 1000PCS. Packaging options include reels or tubes to suit your handling and assembly processes. Our supply ability reaches up to 100,000PCS, ensuring timely fulfillment of your orders.

The typical delivery time is 8 to 12 days, with flexible payment terms including T/T and L/C. Choose Loupeng’s Flexible Printed Circuit Connector products for reliable, certified, and customizable FFC Flexible Circuit Connectors tailored to your specific requirements.

Support and Services:

Product Technical Support and Services for FPC / FFC Connectors include comprehensive assistance to ensure optimal performance and reliability. Our support team provides detailed product information, application guidance, and troubleshooting help to address any technical inquiries you may have.

We offer design support to help integrate FPC / FFC connectors into your projects efficiently, including recommendations on connector selection, mounting techniques, and compatibility considerations.

Additionally, our services include customization options to meet specific requirements, quality assurance processes to guarantee product durability, and prompt resolution of any issues encountered during usage.

For ongoing support, we provide access to technical documentation, installation manuals, and application notes to aid in proper handling and maintenance of FPC / FFC connectors.

Our commitment is to deliver reliable technical support and services that enhance your experience and ensure the successful implementation of FPC / FFC connectors in your applications.
