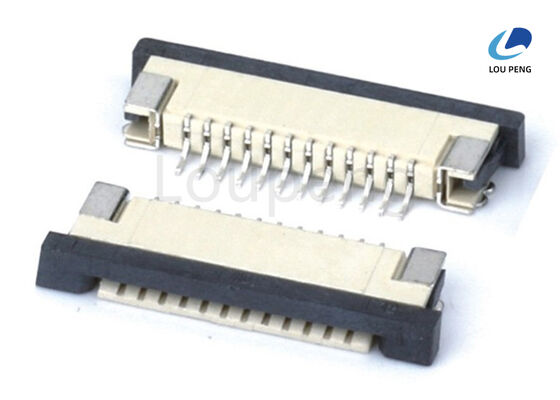

0.5Amps Current Rating FPC FFC Connector ZIF LIF Type Max Processing Temp 230°C 30~60 Seconds Compact Electrical Connector

Product Description:

The FPC / FFC Connector is an essential component designed to provide reliable and efficient connections in various electronic applications. This connector is specifically engineered to accommodate Flat Flexible Cable Connectors, FFC Cable Assembly Connectors, and FPC Ribbon Cable Connectors, making it a versatile solution for modern electronic device assembly. Offering a combination of advanced features and superior materials, this connector ensures high performance, durability, and ease of installation.

One of the key attributes of this FPC / FFC Connector is its dual mounting capability. It supports both Surface Mount Technology (SMT) and Through Hole Technology (THT), allowing for flexible integration into different circuit board designs. The SMT option provides a low-profile, space-saving mounting solution ideal for high-density applications, while the THT version offers robust mechanical strength and enhanced durability, which is particularly beneficial for applications subjected to mechanical stress or vibration.

Durability is a critical factor in connector performance, and this FPC / FFC Connector excels with a remarkable endurance of up to 20,000 mating cycles. This high mating durability ensures long-term reliability and reduces the need for frequent replacements, making it suitable for devices that require repeated assembly and disassembly or frequent maintenance. The connector’s robust construction helps maintain consistent electrical contact and signal integrity throughout its lifespan.

The plating of the connector contacts is available in both Gold Plating and Tin Plated finishes. Gold plating is renowned for its excellent corrosion resistance, low contact resistance, and superior conductivity, which contribute to enhanced signal quality and reliability in critical applications. Tin plating, on the other hand, offers a cost-effective alternative with good solderability and corrosion resistance, making it suitable for a wide range of standard electronic applications. Customers can choose the plating option that best meets their performance requirements and budget considerations.

In terms of insulation, the connector is made from high-quality materials such as Liquid Crystal Polymer (LCP) and Nylon 6T UL94V-0, both of which comply with RoHS standards. LCP is known for its excellent mechanical strength, thermal stability, and chemical resistance, making it ideal for connectors exposed to demanding environmental conditions. Nylon 6T UL94V-0 provides flame retardancy and durability, ensuring safety and compliance with industry regulations. These insulation materials contribute to the overall robustness and reliability of the connector in various operating environments.

The solder tab of the FPC / FFC Connector is constructed from Phosphor Bronze, a material prized for its excellent electrical conductivity, mechanical strength, and resistance to fatigue and corrosion. This ensures a secure and stable solder connection, which is crucial for maintaining signal integrity and mechanical stability in electronic assemblies. The use of phosphor bronze also facilitates efficient soldering processes, contributing to manufacturing efficiency and reducing the risk of connection failures.

Overall, the FPC / FFC Connector stands out as a high-quality, durable, and versatile component ideal for use with Flat Flexible Cable Connectors, FFC Cable Assembly Connectors, and FPC Ribbon Cable Connectors. Its combination of SMT and THT mounting options, exceptional durability of up to 20,000 mating cycles, choice of gold or tin plating, and premium insulation materials like LCP and Nylon 6T UL94V-0 ensures that it meets the demanding requirements of modern electronic devices. Whether used in consumer electronics, automotive systems, or industrial equipment, this connector delivers reliable performance and long-lasting service life.

Features:

• Product Name: FPC / FFC Connector
• Current Rating: 0.5 Amps
• Operating Temperature Range: -40°C to +105°C
• Dielectric Withstanding Voltage: AC 500V
• Contact Resistance: 20mΩ max
• Sample Availability: Free samples provided
• Suitable for Flat Printed Cable Connector applications
• Ideal as a Flexible Printed Circuit Connector
• Designed for FPC Ribbon Cable Connector usage

Technical Parameters:

Applications:

The Loupeng LP-FPC041 is a versatile Flexible Printed Circuit Connector designed to meet the demanding requirements of modern electronic applications. As a high-quality FPC / FFC Connector originating from China and certified under ISO-9001:2000, it ensures reliability and consistent performance. This connector supports 2 to 50 pins, providing flexibility for various circuit designs and configurations. Its Zero Insertion Force (ZIF) and Low Insertion Force (LIF) locking mechanisms make it easy to install and remove without damaging the delicate Flexible Flat Cable Interface, making it ideal for applications where frequent connections and disconnections are required.

One of the primary application occasions for the LP-FPC041 model is in consumer electronics, such as smartphones, tablets, laptops, and digital cameras, where compact and reliable interconnections are crucial. The connector’s ability to handle current ratings up to 0.5 Amps and its phosphor bronze solder tabs ensure stable electrical performance even in compact spaces. With a minimum order quantity of 1000PCS and a competitive price of $0.03 per unit, it is suitable for both prototype development and large-scale manufacturing. The packaging options of reel or tubes offer convenience for automated assembly lines and manual handling alike.

In addition to consumer electronics, the LP-FPC041 Flexible Printed Circuit Connector is widely used in automotive electronics, medical devices, and industrial equipment. Its robust design and supply ability of up to 100,000PCS enable manufacturers to maintain steady production cycles. The FFC Cable Assembly Connector is ideal for connecting flexible printed circuits in tight or moving parts, such as automotive dashboard modules, medical monitoring devices, and industrial control panels. The delivery time of 8 to 12 days ensures timely procurement for project schedules, with flexible payment terms including T/T and L/C to accommodate different buyer preferences.

Overall, the Loupeng LP-FPC041 serves as an essential component in any application requiring a reliable and efficient Flexible Flat Cable Interface. Its broad range of pin positions, locking options, and durable materials make it a go-to choice for engineers and manufacturers looking to enhance connectivity in compact and flexible electronic assemblies. Whether used in consumer gadgets, automotive systems, or industrial machines, this FPC / FFC Connector offers excellent performance, ease of use, and cost-effectiveness, making it an integral part of modern electronic design and production.

Customization:

Loupeng offers high-quality product customization services for the FPC / FFC Connector, model number LP-FPC041. As a trusted brand originating from China and certified with ISO-9001:2000, we ensure reliable and efficient solutions tailored to your needs.

Our Flexible Flat Cable Interface connectors are designed with superior materials, including copper alloy and phosphor bronze for contacts, and PPS UL94V-0 RoHS compliant lockers, providing excellent durability and electrical performance. Available in gray and black colors, these connectors support a dielectric withstanding voltage of AC 500V.

The FPC Ribbon Cable Connector is packaged in reels or tubes for easy handling and shipping. We maintain a supply ability of 100,000PCS with a minimum order quantity of 1000PCS, priced competitively at $0.03 per unit. Delivery time ranges from 8 to 12 days, ensuring timely fulfillment of your orders.

Flexible payment terms including T/T and L/C are accepted to accommodate your purchasing preferences. Additionally, we provide free samples to help you evaluate the FFC Flexible Flat Cable Connector before making a bulk purchase.

Choose Loupeng for customized FPC / FFC Connector solutions that combine quality, reliability, and excellent service.
