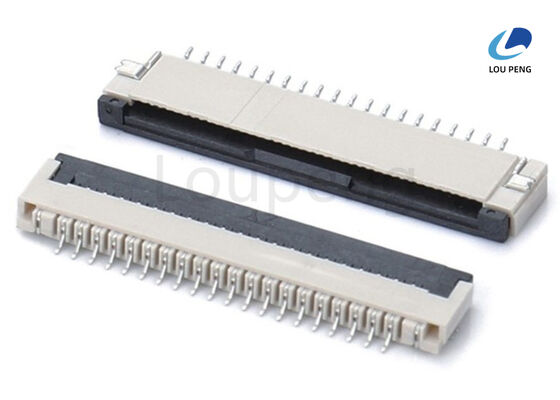

Surface Mount Technology SMT FPC FFC Connector ZIF Type Operating Temperature Range Minus 40 Celsius To Plus 105 Celsius

Product Description:

The FPC / FFC Connector is a high-performance Flat Printed Cable Connector designed to provide reliable and durable connections in a wide range of electronic applications. Known for its exceptional build quality and robust design, this connector is ideal for use with Flexible Flat Cable Interfaces and FFC Flexible Circuit Connectors, ensuring seamless integration with flexible printed circuits and flat cables. Its construction is tailored to meet the stringent demands of modern electronic devices, where space-saving and flexibility are crucial.

One of the standout features of this FPC / FFC Connector is its outstanding durability, offering up to 20,000 mating cycles. This exceptional endurance makes it suitable for applications that require frequent connection and disconnection without compromising performance or reliability. Whether used in consumer electronics, automotive systems, or industrial equipment, this connector guarantees long-lasting service life and consistent electrical performance.

The connector is engineered to operate efficiently within a wide temperature range, specifically from -40°C to +105°C. This broad operating temperature range ensures that it can perform reliably in harsh environmental conditions, including extreme cold and heat. Such versatility makes it an excellent choice for applications exposed to fluctuating temperatures or demanding operational environments.

In terms of thermal resistance, the FPC / FFC Connector can withstand maximum processing temperatures of up to 230°C for 30 to 60 seconds, as well as 260°C for 10 seconds. This capability facilitates various soldering and assembly processes without risking damage to the connector or its components. The high-temperature tolerance ensures compatibility with reflow soldering techniques often used in modern manufacturing, contributing to efficient production workflows.

The insulation material used in this connector is of premium quality, comprising Liquid Crystal Polymer (LCP) and Nylon 6T with UL94V-0 flame retardant rating. This combination not only provides excellent electrical insulation but also enhances mechanical strength and flame resistance. Both LCP and Nylon 6T comply with RoHS standards, ensuring that the connector meets environmental and safety regulations, making it a responsible choice for manufacturers and end-users alike.

Electrical performance is another critical aspect of this Flat Printed Cable Connector. It boasts a maximum contact resistance of 20 milliohms, ensuring stable and efficient electrical connectivity with minimal signal loss. This low contact resistance is essential for maintaining signal integrity and reliable data transmission, which is particularly important for sensitive electronic circuits and high-speed data interfaces.

The FPC / FFC Connector’s design and material selection make it an excellent solution for Flexible Flat Cable Interfaces, providing a secure and efficient connection that supports the flexibility and compactness of modern electronic designs. Its compatibility with FFC Flexible Circuit Connectors further enhances its versatility, allowing it to be used in a variety of applications ranging from consumer gadgets to industrial control systems.

In summary, this FPC / FFC Connector combines durability, thermal resilience, and electrical reliability into a compact and efficient package. Its ability to endure up to 20,000 mating cycles, operate across a wide temperature range, withstand high processing temperatures, and provide low contact resistance makes it a superior choice for engineers and designers seeking dependable Flat Printed Cable Connectors. With high-quality insulation materials that comply with RoHS standards, this connector delivers both performance and safety, ensuring long-term operational success in diverse electronic applications.

Features:

• Product Name: FPC / FFC Connector
• Color: Gray / Black
• Insulator Resistance: 500 Megohms Min.
• Mounting Type: Surface Mount Technology (SMT) / Through Hole Technology (THT)
• Solder Tab Material: Phosphor Bronze
• Connector Type: ZIF (Zero Insertion Force) / LIF (Low Insertion Force)
• Compatible with FFC Flexible Flat Cable Connector applications
• Designed as FPC Electronic Connector Type for reliable connections
• Suitable for Flat Flexible Cable Connector usage in various electronic devices

Technical Parameters:

Applications:

The Loupeng LP-FPC039 is a high-quality Flexible Printed Circuit Connector designed to meet the demanding needs of modern electronic applications. Manufactured in China and certified under ISO-9001:2000, this connector guarantees reliability and performance in various environments. With a minimum order quantity of 1000PCS and a competitive price of just 0.03 per unit, it offers excellent value for manufacturers and designers.

This Flat Flexible Cable Connector is ideal for applications requiring secure and efficient connections between flexible printed circuits and other electronic components. Its versatile connector type, available in both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) variants, ensures easy and reliable cable insertion and removal, making it suitable for repeated assembly and maintenance tasks.

Thanks to its robust construction featuring gold plating or tin plating options, the LP-FPC039 provides superior conductivity and corrosion resistance. The locking mechanism is made from PPS material rated UL94V-0, ensuring flame retardancy and compliance with RoHS environmental standards. This makes it perfect for use in consumer electronics, automotive systems, medical devices, and industrial equipment where safety and durability are paramount.

With a wide operating temperature range from -40°C to +105°C, this FPC Ribbon Cable Connector can withstand harsh environmental conditions, including temperature fluctuations commonly found in automotive or outdoor applications. It supports both Surface Mount Technology (SMT) and Through Hole Technology (THT) mounting methods, providing flexibility in PCB design and assembly processes.

The LP-FPC039 is packaged carefully in reels or tubes to protect the connectors during transportation and storage, ensuring they arrive in perfect condition. With a supply ability of 100,000PCS and a delivery time of just 8 to 12 days, Loupeng is well-equipped to meet large-scale production demands efficiently. Payment terms include T/T and L/C, accommodating international business transactions smoothly.

In summary, the Loupeng LP-FPC039 Flexible Printed Circuit Connector is an excellent choice for applications requiring reliable, durable, and easy-to-install Flat Flexible Cable Connectors or FPC Ribbon Cable Connectors. Whether used in consumer electronics, automotive, medical devices, or industrial controls, it provides excellent performance, safety, and cost-effectiveness.

Customization:

Introducing the Loupeng LP-FPC039, a premium FPC / FFC connector designed to meet diverse electronic connectivity needs. This FFC Flexible Circuit Connector is crafted with high-quality copper alloy or phosphor bronze contact materials, ensuring excellent conductivity and durability. With plating options including gold plating and tin plated finishes, it guarantees reliable performance and corrosion resistance.

The LP-FPC039 model supports 2 to 50 pins, making it versatile for various applications such as FPC Board to Board Connector and FPC Ribbon Cable Connector solutions. It has a current rating of 0.5 Amps and offers durability of up to 20,000 mating cycles, ensuring long-lasting and stable connections.

Manufactured in China under the ISO-9001:2000 certification, Loupeng assures high-quality standards and consistent supply ability of up to 100,000 PCS. The minimum order quantity is 1000 PCS, with a competitive price of $0.03 per unit. Packaging is available in reels or tubes to suit your handling preferences.

Delivery time ranges from 8 to 12 days, with flexible payment terms including T/T and L/C. Choose the LP-FPC039 for your next project requiring reliable FFC Flexible Circuit Connector, FPC Board to Board Connector, or FPC Ribbon Cable Connector solutions.
