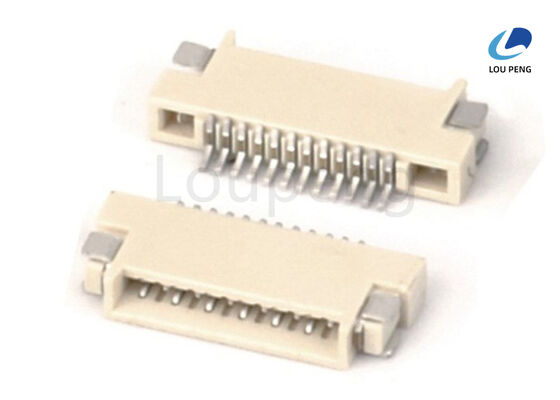

LIF Locking Mechanism FPC Board to Board Connector Featuring Tin Plated Contacts Durable and Interconnection for Circuit Boards

Product Description:

The FPC / FFC Connector is a highly reliable and versatile component designed to ensure secure and efficient connections in a wide range of electronic applications. Available in elegant gray and black colors, this connector is engineered to accommodate various design preferences and requirements. Its dual connector type options, Zero Insertion Force (ZIF) and Low Insertion Force (LIF), provide flexibility and ease of use, making it a preferred choice for many engineers and manufacturers.

As an essential interface component, the FPC Ribbon Cable Connector is specifically designed to connect flat flexible cables to printed circuit boards with minimal insertion force and maximum reliability. The ZIF type allows for effortless insertion and removal of the cable without damaging delicate contacts, while the LIF type offers a balanced approach with moderate insertion force suitable for applications where some retention is necessary. These connector types ensure that the FFC Flexible Circuit Connector can be utilized in a variety of environments, from consumer electronics to industrial devices.

One of the standout features of this Flat Flexible Cable Connector is its impressive thermal resistance. It can withstand a maximum processing temperature of 230°C for 30 to 60 seconds, as well as brief exposures up to 260°C for 10 seconds. This capability makes it ideal for soldering processes and assembly lines where high temperatures are common. The robust thermal tolerance guarantees that the connector maintains its integrity and performance during manufacturing and operation, providing long-lasting reliability.

The plating options of this FPC / FFC Connector further enhance its durability and conductivity. Available in gold plating and tin plating, the connectors are designed to resist corrosion and wear, ensuring consistent electrical performance and a stable connection over time. Gold plating offers superior conductivity and resistance to oxidation, making it suitable for high-performance applications, while tin plating provides a cost-effective and reliable alternative for less demanding environments.

Durability is a critical factor in connector performance, and this product excels with a mating cycle life of up to 20,000 cycles. Such longevity ensures that the connector can endure repeated connections and disconnections without degradation in performance, which is essential for repairable and reusable electronic assemblies. This high durability also reduces maintenance costs and downtime, contributing to overall system efficiency and reliability.

In summary, the FPC / FFC Connector combines aesthetic appeal, functional versatility, and robust performance. Whether chosen as an FPC Ribbon Cable Connector, Flat Flexible Cable Connector, or FFC Flexible Circuit Connector, it offers excellent thermal tolerance, durable plating options, and exceptional mating cycle life. Its availability in both ZIF and LIF types, along with color options of gray and black, makes it a flexible solution tailored to meet diverse application demands. This connector is an ideal choice for manufacturers seeking reliable, high-quality connections in compact electronic designs.

Features:

• Product Name: FPC / FFC Connector
• Connector Type: ZIF (Zero Insertion Force) / LIF (Low Insertion Force)
• Contact Material: Copper Alloy / Phosphor Bronze
• Number of Positions: 2 to 50 Pins
• Durability: Up to 20,000 Mating Cycles
• Mounting Type: Surface Mount Technology (SMT) / Through Hole Technology (THT)
• Compatible with FFC Flexible Flat Cable Connector applications
• Designed as a Flat Printed Cable Connector for reliable connections
• Suitable as an FPC Electronic Connector Type for various electronic devices

Technical Parameters:

Applications:

The Loupeng LP-FPC038 is a high-quality Flat Printed Cable Connector designed to meet the demanding needs of modern electronic applications. Manufactured in China and certified under ISO-9001:2000, this connector ensures superior reliability and performance. With a minimum order quantity of 1000PCS and a competitive price of 0.03 per unit, it offers excellent value for manufacturers and designers alike.

This Flexible Printed Circuit Connector is ideal for use in various electronic devices where compact, flexible, and reliable connections are essential. Its availability in gray or black color, along with gold plating or tin plating options, enhances both its aesthetic appeal and corrosion resistance. The connector’s insulation materials, including LCP (Liquid Crystal Polymer) and Nylon 6T UL94V-0 compliant with RoHS standards, provide excellent durability and safety under different environmental conditions.

The LP-FPC038 supports both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) connector types, making it versatile for various application scenarios. It is especially suited for use in consumer electronics such as smartphones, tablets, laptops, and wearable devices where space-saving and reliable connections between flexible printed circuits and rigid boards are critical. Additionally, it can be applied in automotive electronics, medical devices, and industrial equipment where durability and high mating cycles—up to 20,000—are required.

With a supply ability of 100,000PCS and packaging options including reels or tubes, Loupeng ensures timely delivery within 8 to 12 days. The payment terms are flexible, offering options such as T/T and L/C to accommodate different business needs. This FFC Flexible Circuit Connector is designed to withstand rigorous use, making it an excellent choice for engineers and manufacturers aiming for long-term performance and reliability in their electronic assemblies.

In summary, the Loupeng LP-FPC038 Flat Printed Cable Connector, FFC Flexible Circuit Connector, and Flexible Printed Circuit Connector are perfect for a wide range of applications—from consumer electronics to industrial systems—providing dependable connectivity with exceptional durability and compliance to international quality standards.

Customization:

The Loupeng LP-FPC038 is a high-quality FPC Electronic Connector Type designed to meet diverse application needs. Originating from China and certified with ISO-9001:2000, this Flexible Printed Circuit Connector ensures reliable performance and durability.

Available in gray and black colors, the LP-FPC038 features a locking mechanism that supports both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) options, providing flexibility and ease of use. It supports various pitch sizes including 0.5mm, 1.0mm, 1.25mm, and 1.27mm, making it compatible with a wide range of flexible flat cable interfaces.

With a current rating of 0.5 Amps, the connector uses high-quality insulation materials such as LCP (Liquid Crystal Polymer) and Nylon 6T UL94V-0 RoHS compliant materials, ensuring safety and environmental compliance.

The minimum order quantity for this product is 1000PCS, priced competitively at $0.03 per piece. Packaging is available in reels or tubes to suit different handling and assembly requirements. Delivery time ranges from 8 to 12 days, supported by flexible payment terms including T/T and L/C.

Loupeng offers a robust supply ability of 100,000PCS, making the LP-FPC038 an ideal choice for businesses requiring a reliable and efficient Flexible Printed Circuit Connector for their Flexible Flat Cable Interface needs.

Support and Services:

Our FPC/FFC Connector product is designed to deliver reliable and high-performance connections for flexible printed circuits and flexible flat cables. We provide comprehensive technical support and services to ensure optimal integration and functionality of our connectors in your applications.

Technical support includes assistance with product selection, design-in guidance, and troubleshooting to help you achieve the best electrical and mechanical performance. Our engineering team is available to offer recommendations on mating connectors, cable compatibility, and PCB layout considerations.

We also provide custom solutions tailored to specific requirements, including variations in pitch, pin count, and connector orientation. Customization services help meet unique application demands while maintaining the highest quality standards.

For quality assurance, our connectors undergo rigorous testing to comply with industry standards, ensuring durability, signal integrity, and resistance to environmental factors. We offer detailed datasheets, application notes, and installation instructions to support your design and manufacturing processes.

Our commitment to customer satisfaction includes prompt response to inquiries, efficient handling of orders, and after-sales support to address any issues that may arise during the product lifecycle. We strive to build long-term partnerships by providing reliable products and exceptional service.

Packing and Shipping:

Product Packaging:

Each FPC/FFC connector is carefully packaged to ensure protection against damage during transit. The connectors are placed in anti-static bags to prevent electrostatic discharge, then securely packed in sturdy cardboard boxes. Inner cushioning materials such as foam or bubble wrap are used to minimize movement and impact. Packaging quantities vary based on customer requirements and product specifications.

Shipping:

We offer flexible shipping options to meet your needs, including air freight, sea freight, and courier services. All shipments are tracked and insured for your convenience and security. Shipping times depend on the destination and selected shipping method. We ensure timely dispatch and proper documentation to facilitate smooth customs clearance and delivery.
