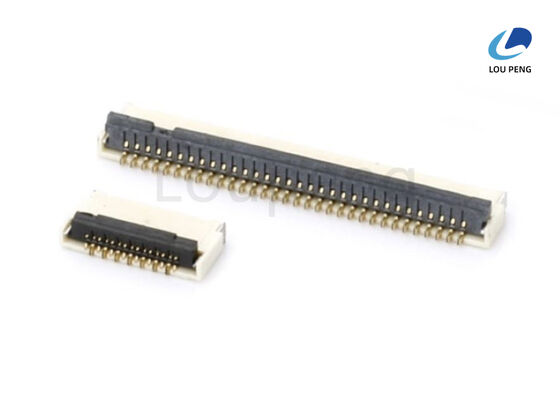

Operating Temp Negative 40 Celsius to Positive 105 Celsius FPC FFC Connector Contact Resistance 20max Dielectric Withstanding AC 500V

Product Description:

The FPC / FFC Connector is a high-quality and reliable solution designed for connecting flexible printed circuits and ribbon cables in various electronic applications. This connector is commonly referred to as an FPC Board to Board Connector, Flexible Printed Circuit Connector, or FPC Ribbon Cable Connector, highlighting its versatility and suitability for a wide range of flexible circuit interconnection needs.

One of the key features of this FPC / FFC Connector is its ability to withstand high processing temperatures. The connector can endure a maximum processing temperature of 230°C for 30 to 60 seconds, ensuring robust performance during soldering and reflow processes. Additionally, it can tolerate a peak temperature of 260°C for up to 10 seconds, making it compatible with various manufacturing environments and techniques. This thermal resilience ensures that the connector maintains its structural integrity and electrical performance even under demanding assembly conditions.

The connector is available in two distinct types: Zero Insertion Force (ZIF) and Low Insertion Force (LIF). The ZIF type allows for easy insertion and removal of the FPC ribbon cable without applying significant force, reducing the risk of damage to the flexible printed circuit or the connector itself. The LIF type, while requiring slightly more force during insertion, offers a secure and reliable connection suitable for applications where moderate insertion force is acceptable. Both connector types provide excellent contact stability and signal integrity, essential for maintaining reliable data transmission and power delivery in modern electronic devices.

Mounting options for this FPC / FFC Connector include Surface Mount Technology (SMT) and Through Hole Technology (THT). The SMT variant is designed for automated assembly processes, providing a compact and efficient mounting solution on printed circuit boards. This makes it ideal for high-density electronic devices where space savings are critical. On the other hand, the THT version offers a robust mechanical connection by inserting the connector pins through holes in the PCB and soldering them on the opposite side. This mounting method ensures strong mechanical retention and is often preferred in applications subject to mechanical stress or vibration.

In terms of electrical performance, the FPC / FFC Connector is rated to handle a current of up to 0.5 Amps. This current rating is suitable for a variety of low-power electronic applications, including consumer electronics, medical devices, automotive systems, and industrial equipment. The connector’s design ensures minimal contact resistance and reliable electrical continuity, which is essential for maintaining consistent performance and preventing signal loss or power fluctuations.

The connector is available in two color options: gray and black. These color choices not only provide aesthetic flexibility but also assist in visual identification and differentiation during assembly and maintenance. The neutral gray and classic black finishes complement various PCB designs and electronic device enclosures, enhancing the overall appearance and professionalism of the final product.

Overall, the FPC / FFC Connector offers a comprehensive solution for connecting flexible printed circuits and ribbon cables, combining thermal durability, versatile connector types (ZIF / LIF), multiple mounting options (SMT / THT), and reliable electrical performance. Its robust design and adaptability make it an excellent choice for engineers and manufacturers seeking dependable FPC Board to Board Connectors, Flexible Printed Circuit Connectors, or FPC Ribbon Cable Connectors for their electronic assemblies.

Features:

• Product Name: FPC / FFC Connector
• Color: Gray / Black
• Number Of Positions: 2 To 50 Pins
• Insulation Material: LCP (Liquid Crystal Polymer) / Nylon 6T UL94V-0 RoHS compliant
• Sample: Free
• Dielectric Withstanding Voltage: AC 500V
• Type: Flexible Flat Cable Interface
• Compatible with Flat Printed Cable Connector applications
• FPC Electronic Connector Type designed for reliable connections

Technical Parameters:

Applications:

The Loupeng LP-FPC037 is a high-quality Flexible Printed Circuit Connector designed to meet the demanding needs of modern electronic applications. As an FPC Electronic Connector Type, it offers reliable performance and superior durability, making it an ideal choice for a wide range of industries. Manufactured in China under strict ISO-9001:2000 certification, this connector ensures consistent quality and exceptional electrical characteristics, including an insulator resistance of 500Megohms minimum and a contact resistance of 20 milliohms max.

This Flexible Flat Cable Interface is widely used in consumer electronics, automotive electronics, medical devices, and industrial equipment. Its ability to operate efficiently within a temperature range of -40°C to +105°C makes it suitable for applications exposed to varying environmental conditions. The dielectric withstanding voltage of AC 500V ensures excellent insulation and safety in high-voltage scenarios, further expanding its usability in critical systems.

In consumer electronics, the LP-FPC037 connector is commonly applied in smartphones, tablets, laptops, and other portable devices where space-saving and flexibility are paramount. Its compact design and reliable contact resistance facilitate seamless signal transmission and power connectivity between flexible printed circuits and main boards. In automotive electronics, it supports infotainment systems, dashboard displays, and sensor connections, where vibration resistance and stable electrical performance are crucial.

Medical devices benefit from this connector’s robust construction and dependable electrical properties, allowing for precise data transmission in diagnostic equipment and monitoring instruments. Furthermore, industrial automation systems utilize the LP-FPC037 Flexible Printed Circuit Connector for connecting sensors, controllers, and display units, ensuring efficient and uninterrupted operation in harsh environments.

The Loupeng LP-FPC037 connector comes with convenient packaging options such as reels or tubes, facilitating easy handling and assembly during production. With a minimum order quantity of 1000PCS and a competitive price of $0.03 per unit, it offers excellent value for large-scale manufacturing. The supply ability of 100,000PCS and a delivery time of 8 to 12 days guarantee timely fulfillment of orders. Payment terms include T/T and L/C, providing flexibility to customers.

Additionally, Loupeng offers free samples of the LP-FPC037, allowing customers to evaluate the product before committing to bulk purchases. This Flexible Printed Circuit Connector is an optimal solution for engineers and manufacturers seeking a reliable, cost-effective FPC Electronic Connector Type that performs consistently across various application scenarios.

Customization:

Loupeng offers high-quality FPC / FFC Connector products, model number LP-FPC037, manufactured in China with ISO-9001:2000 certification. Our FPC Electronic Connector Type is designed to meet diverse application needs with excellent performance and reliability.

We specialize in customizing FFC Cable Assembly Connectors with a minimum order quantity of 1000PCS. The connectors feature an insulator resistance of 500Megohms minimum and are made with PPS UL94V-0 RoHS compliant loeker material, ensuring durability and safety.

The Flexible Flat Cable Interface supports a wide operating temperature range from -40°C to +105°C, with a maximum processing temperature of 230°C for 30 to 60 seconds or 260°C for 10 seconds. Our connectors come with options for gold plating or tin plating to suit different electrical and environmental requirements.

We package the connectors in reels or tubes to ensure safe delivery, with a supply ability of 100,000PCS and a delivery time of 8 to 12 days. Pricing starts at 0.03 USD per piece, and we accept payment terms via T/T or L/C.

Choose Loupeng’s customized FPC / FFC Connector solutions for reliable Flexible Flat Cable Interface products that meet your specific design and production needs.

Support and Services:

Our FPC/FFC connectors are designed to provide reliable and high-performance connections in a variety of electronic applications. To ensure optimal performance and longevity of the connectors, please follow the recommended handling and installation guidelines.

Before installation, verify that the connector type and specifications match your application requirements. Handle the connectors with care to avoid damage to the contacts and housing. Avoid excessive force when inserting or removing the flexible printed circuit (FPC) or flexible flat cable (FFC) to prevent deformation or breakage.

When assembling the connector, ensure that the FPC/FFC is properly aligned and fully inserted into the connector’s contact area. Secure the connector locking mechanism firmly to maintain a stable connection. Improper insertion or locking may result in intermittent connections or signal loss.

For soldering processes, follow the recommended temperature profiles and avoid prolonged exposure to high temperatures to prevent damage to the connector’s plastic components. Use appropriate soldering equipment and techniques to maintain the integrity of the contacts.

If cleaning is necessary, use only approved solvents that do not degrade the connector materials. Avoid using abrasive tools or excessive mechanical force during cleaning.

Regular inspection and testing of the connectors in your application can help identify potential issues early and ensure continued reliable operation. Should you encounter any performance issues or require technical assistance, please refer to the product documentation or seek support from our technical service team.

Our commitment is to provide high-quality connectors and comprehensive support to help you achieve the best results in your electronic designs.

Packing and Shipping:

Product Packaging:

The FPC/FFC Connector is carefully packaged to ensure protection during transportation and storage. Each connector is placed in an anti-static bag to prevent electrostatic discharge damage. Multiple units are then organized into sturdy, cushioned boxes to avoid mechanical damage. The packaging is clearly labeled with product specifications, quantity, and handling instructions to facilitate easy identification and inventory management.

Shipping:

We offer reliable shipping options to deliver FPC/FFC Connectors efficiently and securely worldwide. All orders are processed promptly, with tracking information provided upon dispatch. Shipping methods are selected based on customer preference and destination, including standard, expedited, and express services. We ensure that all packages comply with international shipping regulations and are insured against loss or damage during transit.
