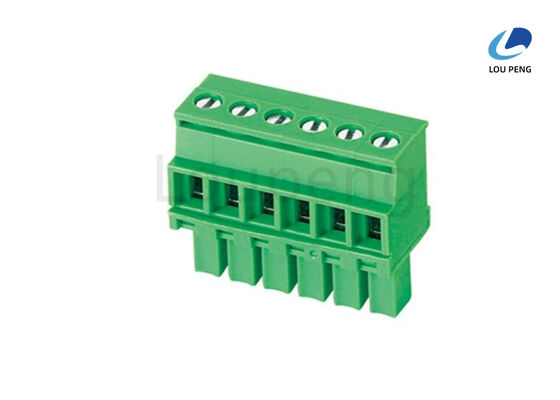

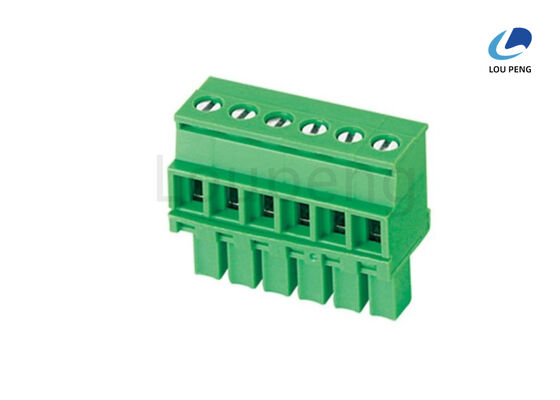

Rated voltage 300V Terminal Blocks offering Max Soldering temperature 250 degrees Celsius for 5 seconds and Insulation resistance 5000Mohm 1000V connection solution

Product Description:

The Terminal Blocks product is a highly versatile and reliable solution designed to meet the demanding requirements of modern electrical and electronic applications. Engineered with precision and quality materials, this product offers excellent performance and durability, making it an ideal choice for various industrial and commercial installations. Featuring a modular design, the Terminal Blocks allow for easy customization and expansion, adapting seamlessly to complex wiring needs.

One of the standout features of this Terminal Blocks product is its compatibility with multiple mounting types, including DIN Rail and Panel Mount options. This flexibility ensures that the terminal blocks can be securely installed in a wide range of environments, from control panels to distribution boards, enhancing the overall system organization and accessibility. The DIN Rail mounting provides a standardized and efficient method for assembly and maintenance, while the Panel Mount option offers a robust alternative for fixed installations.

Constructed with a housing made of PA66 material, the Terminal Blocks exhibit excellent mechanical strength and resistance to environmental factors. The housing complies with the UL94V-0 flammability rating, ensuring superior safety by preventing the spread of fire in case of electrical faults or overheating. This makes the product suitable for use in critical applications where safety standards are paramount.

The Terminal Blocks feature pin headers made from brass that are tin-plated, delivering outstanding conductivity and corrosion resistance. This combination guarantees reliable electrical connections over extended periods, minimizing maintenance needs and enhancing system uptime. The tin plating also improves solderability, which is crucial during assembly and repair processes.

In terms of thermal performance, the Terminal Blocks can withstand maximum soldering temperatures of up to +250℃ for 5 seconds. This capability ensures that the product maintains its structural integrity and electrical properties even under demanding soldering conditions, enabling efficient manufacturing and assembly without compromising quality.

The insulation resistance of these Terminal Blocks is rated at an impressive 5000 Mohm at 1000V, providing excellent protection against electrical leakage and short circuits. High insulation resistance is essential in preventing electrical faults and ensuring the safety and reliability of the entire system, especially in multi-pole configurations where multiple circuits are managed simultaneously.

This product encompasses several key types such as Modular Terminal Connectors, Barrier Strip Terminal Blocks, and Multi Pole Terminal Blocks, each designed to cater to specific wiring and connection needs. The Modular Terminal Connectors allow for scalable and flexible wiring solutions, enabling easy addition or removal of circuit connections without disruption. Barrier Strip Terminal Blocks offer clear separation between circuits, enhancing safety and reducing the risk of accidental contact. Multi Pole Terminal Blocks facilitate the management of multiple electrical connections in a compact and organized manner, streamlining wiring layouts and improving system efficiency.

Overall, the Terminal Blocks product stands out for its robust construction, versatile mounting options, and superior electrical and thermal properties. Whether used in industrial automation, power distribution, or control systems, it delivers reliable performance and ease of use. Its adherence to stringent safety standards and high insulation resistance ensures that electrical connections remain secure and stable under various operating conditions. This comprehensive solution is indispensable for professionals seeking quality and durability in terminal connection technology.

Features:

• Product Name: Terminal Blocks
• Rated Voltage: 300V for safe and reliable operation
• Contact Material: Phosphor Bronze ensuring excellent conductivity and durability
• Wire Range: Supports 24 - 14 AWG (1mm²) wires for versatile applications
• Strip Length: 6 - 7mm for optimal wire insertion
• Temperature Range: -40℃ to +105℃ suitable for various industrial environments
• Type: Electrical Terminal Connector designed for secure electrical connections
• Configuration: Multi Pole Terminal Block allowing multiple connections in a compact design
• Application: Industrial Terminal Block ideal for use in industrial and commercial electrical systems

Technical Parameters:

Applications:

The LP brand Terminal Blocks, model number LP-TB009, are high-quality electrical connectors designed and manufactured in China, certified under ISO-9001:2000 standards. These barrier strip terminal blocks are widely used in various electrical and electronic applications due to their reliable performance and durability. With an insulation resistance of 5000Mohm/1000V and a contact resistance of only 20mOhm, these modular terminal connectors ensure stable and secure electrical connections, making them ideal for both industrial and commercial use.

The LP-TB009 terminal blocks are rated for a current of 8A and feature tin-plated brass pin headers, which provide excellent conductivity and corrosion resistance. Their temperature range of -40℃ to +105℃ allows them to function efficiently in harsh environmental conditions, making them suitable for use in outdoor installations and temperature-sensitive applications. The modular design of these terminal connectors facilitates easy installation and maintenance, allowing for flexible configuration and expansion in electrical panels and control systems.

These barrier strip terminal blocks find application occasions in various scenarios such as wiring junctions in control cabinets, distribution boards, and industrial machinery. They are also commonly used in lighting systems, HVAC units, and automation equipment where secure and reliable wire connections are critical. Due to their modular nature, these terminal connectors are perfect for projects requiring scalable and customizable electrical connections, enabling engineers and technicians to quickly assemble and modify wiring layouts.

With a minimum order quantity of 1000PCS and a competitive price of 0.04 per unit, LP’s terminal blocks are ideal for large-scale manufacturing and procurement. The product packaging is available in tubes or trays, ensuring safe delivery and convenient handling. LP guarantees a supply ability of 100,000PCS with a delivery time frame of 7 to 10 days, supporting prompt fulfillment of orders. Payment terms include T/T, Western Union, and L/C, offering flexible options for diverse customers worldwide.

In summary, LP’s LP-TB009 barrier strip terminal blocks and modular terminal connectors are essential components for any electrical installation requiring reliable, efficient, and easy-to-use connection solutions. Their robust construction, excellent electrical properties, and versatile application scenarios make them a preferred choice for professionals across various industries.

Customization:

Our LP Terminal Blocks, model number LP-TB009, are high-quality Industrial Terminal Blocks designed to meet various electrical connection needs. Manufactured in China and certified with ISO-9001:2000, these DIN Rail Terminal Blocks ensure reliable performance with a withstanding voltage of AC1500/1Min and a rated current of 8A.

Featuring tin-plated brass pin headers and a low contact resistance of 20mOhm, these Multi Pole Terminal Blocks are built for durability and efficiency. We offer a minimum order quantity of 1000PCS, with a competitive price of $0.04 per unit, packaged conveniently in tubes or trays.

Our supply ability is 100000PCS, with a delivery time ranging from 7 to 10 days. Payment terms include T/T, Western Union, and L/C, ensuring flexible and secure transactions. Choose LP Terminal Blocks for dependable industrial and multi pole terminal solutions.
