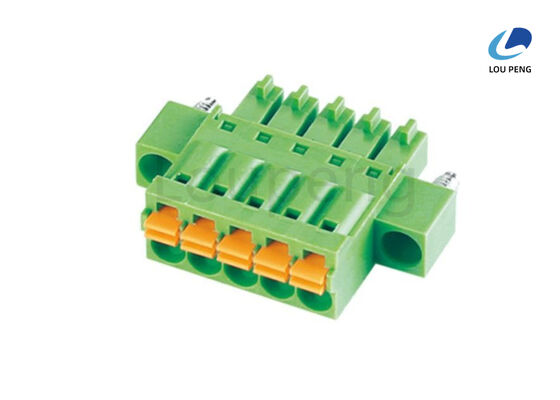

UL94V-0 Terminal Blocks Offering Superior 5000Mohm 1000V Insulation Resistance for Secure Electrical Circuit Connections

Product Description:

The Terminal Blocks product is an essential component designed for efficient and secure electrical connections in various applications. As a highly reliable Wire Connection Terminal, it offers superior performance and durability, making it an ideal choice for both industrial and commercial wiring systems. These terminal blocks are engineered to provide a stable and safe connection point for wires, ensuring optimal conductivity and minimizing the risk of loose connections or electrical failures.

One of the standout features of this terminal block is its compatibility with a wide wire range, accommodating wires from 24 to 14 AWG (approximately 1mm²). This flexibility allows it to be used in numerous wiring scenarios, from delicate control circuits to more robust power distribution setups. The wire strip length required for proper installation is precisely 6 to 7mm, which facilitates quick and accurate wire preparation, ensuring a secure fit within the terminal and enhancing the overall connection quality.

The contact material used in this terminal block is phosphor bronze, a high-quality brass alloy known for its excellent electrical conductivity and resistance to corrosion and wear. The use of phosphor bronze ensures that the Push Wire Terminal Block maintains a reliable and long-lasting electrical connection, even in demanding environments. This material choice contributes significantly to the terminal block's ability to deliver consistent performance over time, reducing maintenance needs and downtime.

Another critical attribute of this product is its impressive thermal resistance. The terminal block can withstand soldering temperatures up to +250℃ for up to 5 seconds without compromising its structural integrity or electrical properties. This capability is particularly important during the assembly and manufacturing process, where high-temperature soldering is common. It ensures that the modular terminal connector remains robust and reliable, even after exposure to heat, thereby enhancing its overall lifespan.

The housing of the terminal block is made from PA66, a high-performance nylon material known for its excellent mechanical strength, chemical resistance, and thermal stability. Additionally, the housing complies with the UL94V-0 flame retardant standard, meaning it is highly resistant to fire and can effectively prevent the spread of flames in case of an electrical fault or overheating. This safety feature is crucial for applications where fire prevention and compliance with safety regulations are paramount.

Designed as a modular terminal connector, this product offers ease of installation and versatility. Its modular design allows multiple terminal blocks to be connected side by side, creating a customizable and scalable wiring solution that can be tailored to specific project requirements. This modularity not only simplifies wiring layouts but also facilitates maintenance and troubleshooting by providing clear and organized connection points.

In summary, the Terminal Blocks product combines robust materials, precise engineering, and user-friendly design to deliver a top-quality Wire Connection Terminal solution. Its compatibility with a wide wire range, high-temperature resistance, durable phosphor bronze contacts, and flame-retardant PA66 housing make it a dependable choice for various electrical connection needs. Whether used as a Push Wire Terminal Block or integrated into a larger system as a modular terminal connector, this product ensures secure, efficient, and safe electrical connections in any application.

Features:

• Product Name: Terminal Blocks
• Rated Voltage: 300V
• Wire Range: 24 - 14 AWG (1mm²)
• Withstanding Voltage: AC 1500V for 1 minute
• Insulation Resistance: 5000 MΩ at 1000V
• Temperature Range: -40℃ to +105℃
• Available Types: Screw Clamp Terminal Block, Push Wire Terminal Block
• Supports Multi Pole Terminal Block configurations

Technical Parameters:

Applications:

The LP brand presents the LP-TB015 Industrial Terminal Block, a high-quality and reliable solution designed for various electrical connection needs. Originating from China and certified by ISO-9001:2000, this terminal block guarantees superior performance and safety standards, making it ideal for industrial applications. With a rated voltage of 300V and a rated current of 8A, the LP-TB015 ensures stable and efficient electrical connectivity even in demanding environments.

This Push Wire Terminal Block is engineered with phosphor bronze contact brass, which provides excellent conductivity and corrosion resistance. Its insulation resistance of 5000Mohm/1000V and withstanding voltage of AC1500/1Min. further emphasize its robustness and durability under high electrical stress. These features make the LP-TB015 perfect for use in industrial automation systems, control panels, switchgear, and machinery where reliable electrical connections are critical.

The LP-TB015 Industrial Terminal Block is highly versatile and widely used in power distribution systems, lighting assemblies, and HVAC equipment. Its user-friendly push-wire design allows for quick and secure wiring without the need for screws, reducing installation time and maintenance efforts. This makes it suitable for both professional electricians and industrial technicians working in fast-paced production environments.

Packaged conveniently in tubes or trays, the LP-TB015 is available at an affordable price of 0.04 per piece, with a minimum order quantity of 1000PCS. The supply ability of 100,000PCS and a delivery time of 7 to 10 days ensure that businesses can maintain consistent inventory levels. Payment terms include T/T, Western Union, and L/C, providing flexible options for international buyers.

In summary, the LP-TB015 Industrial Terminal Block is an excellent choice for a wide range of electrical connection scenarios, from factory automation and industrial equipment to commercial electrical installations. Its certified quality, efficient push wire mechanism, and robust electrical specifications make it a dependable component in any industrial terminal block application.

Customization:

LP brand Terminal Blocks, model number LP-TB015, are high-quality Modular Terminal Connectors manufactured in China with ISO-9001:2000 certification. Designed as Multi Pole Terminal Blocks and Push Wire Terminal Blocks, these products feature a phosphor bronze contact with a contact resistance of 20mOhm, ensuring reliable electrical performance.

The housing is made from durable PA66 material with UL94V-0 flame retardant rating, providing excellent insulation resistance of 5000Mohm/1000V for enhanced safety. Each terminal block is carefully packaged in tubes or trays for secure shipment.

We offer a minimum order quantity of 1000PCS at a competitive price of $0.04 per piece, with a supply ability of up to 100,000PCS. Delivery time ranges from 7 to 10 days, and payment terms include T/T, Western Union, and L/C to ensure flexible and convenient transactions.

Our Terminal Blocks are ideal for various electrical applications requiring reliable and easy-to-use Modular Terminal Connectors, Multi Pole Terminal Blocks, and Push Wire Terminal Blocks, providing excellent performance and durability.

Support and Services:

Our Terminal Blocks are designed to provide secure and reliable electrical connections for a wide range of applications. For optimal performance and safety, ensure that the blocks are installed by qualified personnel following the provided installation guidelines.

If you encounter any issues with your Terminal Blocks, please refer to the product manual for troubleshooting tips and maintenance instructions. Regular inspection and proper tightening of connections can prevent common problems such as loose contacts or electrical faults.

We offer comprehensive technical support to assist with product selection, installation, and troubleshooting. Our support team is equipped to provide detailed information on electrical ratings, compatibility, and customization options to meet your specific requirements.

For additional services, including custom configurations, training sessions, and on-site support, please inquire through the appropriate channels to ensure your Terminal Blocks operate efficiently and safely in your systems.

Packing and Shipping:

Each terminal block is carefully packaged in a sturdy, protective box to prevent any damage during transit. The packaging includes anti-static materials and cushioning to ensure the product remains intact and functional upon arrival. For bulk orders, terminal blocks are securely packed in labeled cartons with clear handling instructions.

Shipping is carried out through reliable courier services, with options for expedited or standard delivery. All shipments are tracked, and customers receive a tracking number to monitor the progress of their order. We ensure timely dispatch and safe delivery to meet customer satisfaction.
