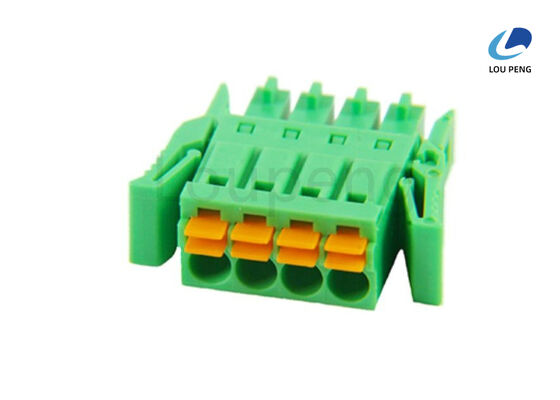

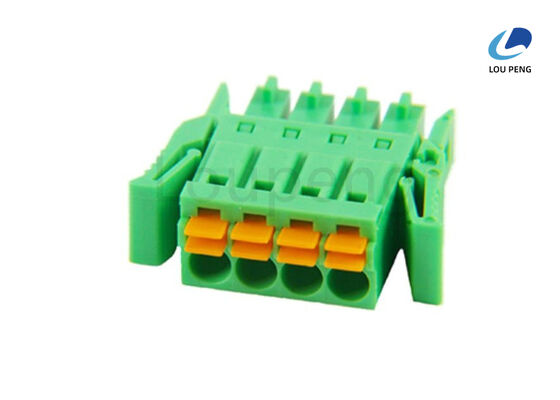

Panel Mount Screw Clamp Terminal Block Supporting Max Soldering Temperature Plus 250 Celsius for 5 Seconds Ensuring Electrical Contact

Product Description:

The Terminal Blocks we offer are designed with precision and reliability to meet the demanding requirements of modern electrical and electronic applications. These terminal blocks serve as essential components in various wiring systems, providing secure and efficient connections for electrical circuits. Featuring outstanding insulation resistance of 5000Mohm at 1000V, these terminal blocks ensure excellent electrical isolation, minimizing the risk of short circuits and enhancing overall system safety.

Our Modular Terminal Connector is engineered to facilitate easy and flexible wiring configurations. With a strip length of 6 to 7mm, it allows for precise wire stripping, ensuring a solid and reliable connection between wires and terminals. This feature simplifies installation and maintenance while maintaining consistent electrical contact. The high insulation resistance combined with the carefully controlled strip length makes these connectors ideal for complex modular systems where dependable connectivity is critical.

The Barrier Strip Terminal Block variant is especially suited for applications requiring distinct separation between circuits. Its robust design supports a rated current of 8A, making it capable of handling moderate electrical loads efficiently. Additionally, the contact resistance is maintained at a low 20mOhm, which guarantees minimal voltage drop and power loss across the connection points. This low resistance also contributes to enhanced energy efficiency and reduced heat generation during operation.

Designed for durability, the Panel Mount Terminal Block is capable of withstanding a voltage of AC1500 for 1 minute during high-voltage testing, demonstrating its excellent dielectric strength and reliability under stress. This withstanding voltage rating ensures that the terminal block can operate safely in environments subject to voltage surges or transient spikes, providing long-term operational stability and protection for connected equipment.

These terminal blocks are versatile and can be integrated into a wide range of electrical panels, control systems, and industrial machinery. Their modular nature allows for easy expansion or reconfiguration of wiring layouts, making them an excellent choice for both new installations and retrofit projects. The barrier strip design provides clear segregation between connections, reducing the risk of accidental contact or wiring errors, which is crucial in complex electrical assemblies.

Moreover, the Panel Mount Terminal Block offers firm mounting and secure mechanical stability, ensuring that connections remain intact even in environments subject to vibration or mechanical stress. This robustness is essential for maintaining uninterrupted electrical connectivity in critical applications such as automation systems, power distribution panels, and instrumentation setups.

In summary, our Terminal Blocks combine high insulation resistance, optimal strip length, excellent withstanding voltage, and low contact resistance to deliver superior performance and reliability. Whether you require a Modular Terminal Connector for flexible wiring, a Barrier Strip Terminal Block for secure circuit separation, or a Panel Mount Terminal Block for durable panel installations, these products meet the highest standards of quality and safety. They are engineered to support rated currents up to 8A, ensuring they can handle a variety of electrical loads efficiently while providing stable and reliable connections across diverse applications.

Choosing our Terminal Blocks means investing in components that enhance the safety, efficiency, and longevity of your electrical systems. Their proven electrical characteristics and rugged design make them an indispensable part of any professional wiring solution, guaranteeing peace of mind and optimal system performance.

Features:

• Product Name: Terminal Blocks
• Contact Material: Phosphor Bronze
• Insulation Resistance: 5000MΩ at 1000V
• Rated Current: 8A
• Operating Temperature Range: -40℃ to +105℃
• Contact Resistance: 20mΩ
• Type: DIN Rail Terminal Block
• Modular Terminal Connector design for easy installation and scalability
• Reliable and durable Modular Terminal Connector suitable for various electrical applications

Technical Parameters:

Applications:

The LP brand Terminal Blocks, model number LP-TB014, are premium quality electrical connectors designed for a wide range of industrial and commercial applications. Manufactured in China and certified under ISO-9001:2000 standards, these terminal blocks ensure reliable performance and durability. With a rated current of 8A and compatibility with wire ranges from 24 to 14 AWG (1mm²), they are ideal for various wiring tasks where secure and efficient connections are required.

One of the main application occasions for the LP-TB014 Terminal Blocks is in electrical control panels and distribution boards. Their design as Modular Terminal Connectors allows for easy installation and maintenance, making them suitable for use in automation systems, machinery control, and power distribution setups. The phosphor bronze contact brass material provides excellent conductivity and corrosion resistance, ensuring long-term stability even in demanding environments.

These terminal blocks are also widely used as Barrier Strip Terminal Blocks in industrial equipment, where multiple circuits need to be connected safely and compactly. Their strip length of 6-7mm facilitates precise wire stripping and connection, which is crucial for maintaining strong electrical contacts and preventing faults. The maximum soldering temperature of +250℃ for 5 seconds ensures that connections are secure during assembly without damaging the components.

Additionally, the LP-TB014 model is compatible with DIN Rail Terminal Block systems, making it highly versatile for different mounting configurations. This adaptability makes it a preferred choice in manufacturing plants, electrical distribution systems, and building automation projects where DIN rail mounting is standard. The packaging in tubes or trays provides convenience for bulk handling, with a minimum order quantity of 1000PCS, a competitive price of $0.04 per piece, and a supply ability of 100,000PCS, ensuring that large-scale projects can be efficiently served.

Delivery is prompt within 7 to 10 days, and flexible payment terms including T/T, Western Union, and L/C are available, catering to diverse customer needs globally. Overall, the LP-TB014 Terminal Blocks offer an excellent combination of quality, reliability, and cost-effectiveness for various terminal block applications such as Modular Terminal Connectors, Barrier Strip Terminal Blocks, and DIN Rail Terminal Blocks in electrical and electronic systems.

Customization:

Our LP brand Industrial Terminal Block, model number LP-TB014, is manufactured in China and certified with ISO-9001:2000, ensuring high quality and reliability. With a minimum order quantity of 1000PCS and a competitive price of $0.04 per unit, this Barrier Strip Terminal Block is designed to meet diverse industrial needs.

The Terminal Block features a durable PA66 housing rated UL94V-0 for excellent flame retardance, and a pin header made of tin-plated brass for superior conductivity. It supports a rated current of 8A and has a low contact resistance of 20mOhm, ensuring efficient electrical performance. The strip length of 6-7mm facilitates easy wire insertion and secure connections.

Packaging options include tube or tray, tailored to protect the product during shipment. We offer a supply ability of 100,000PCS with a delivery time of 7 to 10 days. Payment terms are flexible, accepting T/T, Western Union, and L/C. Our Panel Mount Terminal Block is ideal for various industrial applications requiring reliable and safe electrical connections.

Contact us today to customize your order and benefit from our professional product customization services for Terminal Blocks that combine quality, efficiency, and affordability.

Support and Services:

Our Terminal Blocks product is designed to provide reliable and efficient electrical connections for a wide range of applications. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting, and maintenance tips to ensure optimal performance and safety.

We provide detailed product documentation, including datasheets, wiring diagrams, and installation manuals to help you understand the specifications and proper usage of our terminal blocks.

If you encounter any issues or require further assistance, our technical support team is available to help diagnose problems and recommend solutions tailored to your specific needs.

Additionally, we offer customization services to meet unique requirements, including special configurations and packaging options.

For ongoing support, we provide training sessions and webinars to help users maximize the benefits of our terminal blocks and stay updated on the latest industry standards and best practices.

Our commitment is to ensure that our terminal blocks deliver safe, durable, and efficient connections for your electrical projects.

Packing and Shipping:

Each terminal block is carefully packaged to ensure maximum protection during transit. The product is placed in anti-static bags and then securely boxed with cushioning materials to prevent damage from shocks and vibrations.

The packaging is clearly labeled with product details, handling instructions, and barcodes for easy identification and inventory management.

For shipping, we use reliable carriers that provide tracking services and timely delivery. Our shipping methods are chosen based on the destination and urgency, ensuring that the terminal blocks arrive safely and on schedule.

Bulk orders are palletized and shrink-wrapped to maintain stability and protect against environmental factors during transportation.

We also offer customized packaging options upon request to meet specific customer requirements.
