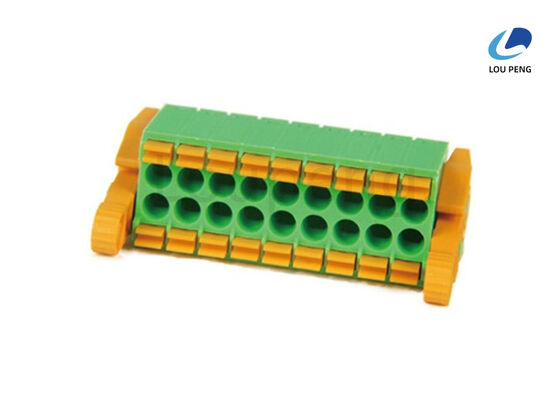

Temperature Range Minus 40 to Plus 105 Degrees Celsius Terminal Blocks Ensuring Electrical Contact and Low Contact Resistance

Product Description:

The Terminal Blocks are essential components widely used in electrical and electronic systems to facilitate secure and efficient wiring connections. Designed with precision and high-quality materials, these terminal blocks provide reliable performance and durability, making them an ideal choice for various industrial and commercial applications. Among the notable features of these terminal blocks is the strip length, which ranges from 6 to 7mm, ensuring optimal wire insertion depth for secure electrical contact and ease of installation.

One of the key characteristics of these terminal blocks is their outstanding insulation resistance, rated at 5000Mohm/1000V. This high insulation resistance ensures minimal leakage current and superior electrical isolation between conductive parts, enhancing the safety and reliability of the electrical connections. Additionally, these terminal blocks are engineered to withstand a voltage of AC1500 for 1 minute, demonstrating their robust ability to endure high-voltage conditions without breakdown or failure. This withstanding voltage capability makes them suitable for demanding environments where electrical surges or spikes may occur.

The Terminal Blocks feature pin headers made of brass, which are tin plated to provide excellent conductivity and corrosion resistance. The tin plating not only improves the electrical performance by reducing contact resistance but also extends the lifespan of the terminal blocks by protecting the brass pins from oxidation and environmental damage. This combination of brass and tin plating ensures consistent and reliable electrical connections over time, even in harsh or humid conditions.

These terminal blocks are available in various configurations, including Multi Pole Terminal Block formats that allow multiple circuits to be connected in a compact and organized manner. The multi-pole design is particularly beneficial for complex wiring systems, enabling efficient distribution of electrical power and signals while maintaining neat and manageable wiring layouts. This makes them highly suitable for control panels, industrial machines, and electrical distribution systems.

Another popular variant within this product range is the Barrier Strip Terminal Block. This type of terminal block incorporates physical barriers between adjacent terminals to prevent accidental short circuits and enhance safety during wiring and maintenance. The barrier strip design is favored in applications where electrical isolation between circuits is critical, providing an additional layer of protection and reducing the risk of electrical faults.

Furthermore, the Terminal Blocks serve as Modular Terminal Connectors, offering flexibility and ease of customization. Modular terminal connectors allow users to assemble multiple terminal block units together to create a tailored solution that meets specific wiring requirements. This modularity simplifies installation, reduces wiring errors, and facilitates maintenance by allowing individual modules to be replaced or reconfigured without disturbing the entire system.

In summary, the Terminal Blocks product line combines excellent electrical and mechanical properties to deliver reliable, safe, and versatile wiring solutions. With a strip length of 6-7mm, high insulation resistance of 5000Mohm/1000V, and a withstanding voltage of AC1500/1Min., these terminal blocks are engineered to meet stringent performance standards. The use of tin-plated brass pin headers ensures durable and efficient electrical contacts. Whether you require Multi Pole Terminal Blocks for complex wiring, Barrier Strip Terminal Blocks for enhanced safety, or Modular Terminal Connectors for flexible configurations, these terminal blocks provide a comprehensive and dependable solution for all your electrical connection needs.

Features:

• Product Name: Terminal Blocks
• Type: Screw Clamp Terminal Block
• Application: Industrial Terminal Block
• Mounting Type: DIN Rail, Panel Mount Terminal Block
• Temperature Range: -40℃ to +105℃
• Maximum Soldering Temperature: +250℃ for 5 seconds
• Rated Current: 8A

Technical Parameters:

Applications:

The LP-TB019 Terminal Blocks by LP are designed for versatile and reliable electrical connections across a wide range of applications. As a Modular Terminal Connector, this product is ideal for use in industrial control panels, automation systems, and electrical distribution boards, where secure and efficient wiring is essential. The push wire terminal block design allows for quick and easy wire insertion, making it an excellent choice for scenarios requiring frequent maintenance or system upgrades.

With a rated voltage of 300V and a withstanding voltage of AC1500/1 minute, the LP-TB019 ensures high safety standards in environments where electrical stability is critical. The housing made of PA66 with UL94V-0 flame retardant rating provides robust protection against heat and fire hazards, making it suitable for use in manufacturing plants, power stations, and building electrical installations. The ability to withstand soldering temperatures up to +250℃ for 5 seconds further enhances its durability during assembly and repair processes.

These Modular Terminal Connectors accommodate wire ranges from 24 to 14 AWG (1mm2), allowing compatibility with various wire sizes commonly used in electrical and electronic assemblies. This flexibility makes the LP-TB019 ideal for use in telecommunications equipment, control cabinets, and lighting systems. Its modular design supports scalable and organized wiring layouts, which are crucial in complex electrical setups.

Originating from China and certified by ISO-9001:2000, the LP brand guarantees high quality and consistent performance. The product is available in tube or tray packaging, ensuring safe delivery and ease of handling. With a minimum order quantity of 1000PCS and a competitive price of $0.04 per unit, it is well-suited for bulk procurement by manufacturers and electrical contractors.

The supply ability of 100,000PCS coupled with a delivery time of 7 to 10 days makes the LP-TB019 a reliable choice for large-scale projects and timely installations. Payment terms including T/T, Western Union, and L/C provide flexibility for international clients. Overall, the LP-TB019 Push Wire Terminal Block is an excellent solution for applications requiring secure, efficient, and modular electrical connections.

Customization:

The LP Terminal Blocks, model number LP-TB019, are high-quality Wire Connection Terminals designed and manufactured in China. Certified with ISO-9001:2000, these Modular Terminal Connectors ensure reliable performance with a contact resistance of only 20mOhm. Featuring phosphor bronze contact brass, they support a wire range of 24 - 14AWG (1mm²) and operate safely at a rated voltage of 300V within a temperature range of -40℃ to +105℃.

With a supply ability of 100,000PCS and a minimum order quantity of 1000PCS, our Wire Connection Terminals are available at an affordable price of $0.04 each. Packaging options include tube or tray, ensuring safe and convenient delivery. The delivery time is typically between 7 to 10 days.

We accept various payment terms including T/T, Western Union, and L/C. Choose LP Terminal Blocks for durable, reliable Modular Terminal Connectors that meet your wire connection needs efficiently and economically.

Support and Services:

Our Terminal Blocks product is designed to provide reliable and efficient electrical connections for a wide range of applications. To ensure optimal performance and longevity, we offer comprehensive technical support and services.

Technical support includes assistance with product selection, installation guidance, troubleshooting, and maintenance tips. Our team of experts is available to help you address any challenges and provide solutions tailored to your specific needs.

We also provide detailed product documentation, including datasheets, wiring diagrams, and user manuals, to facilitate proper usage and integration into your systems.

For additional services, we offer customization options to meet unique application requirements, as well as training sessions to empower your team with the knowledge to effectively use and maintain our terminal blocks.

Our commitment is to ensure that you receive the highest level of support throughout the lifecycle of our Terminal Blocks product, helping you achieve safe, secure, and efficient electrical connections.

Packing and Shipping:

Product Packaging: Each terminal block is securely packed in a protective plastic bag to prevent any damage or contamination during transit. Multiple terminal blocks are then placed in a sturdy cardboard box with adequate cushioning material to ensure stability and protection. The packaging is clearly labeled with product details, quantity, and handling instructions to facilitate easy identification and safe handling.

Shipping: Terminal blocks are shipped via reliable courier services with options for expedited or standard delivery based on customer preference. All shipments are carefully sealed and inspected prior to dispatch. Tracking information is provided to customers to monitor the shipment status. For bulk orders, palletized shipping is available to ensure safe and efficient transport. Special care is taken to comply with all shipping regulations and to minimize transit time, ensuring the product arrives in perfect condition.
