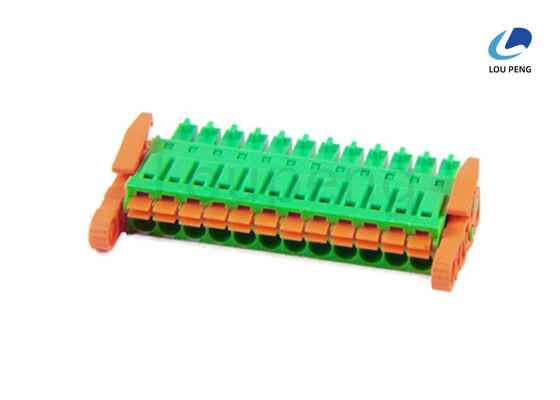

Contact Brass Phosphor Bronze DIN Rail Terminal Block Wire Range 24 to 14AWG 1mm2 Electrical Connector for Control System Wiring

Product Description:

The Terminal Blocks are essential components widely used in electrical and electronic systems to provide a secure and reliable connection point for wires. Designed to meet the needs of various industrial and commercial applications, these terminal blocks ensure efficient and safe electrical connections, making them a vital part of any electrical assembly.

One of the standout features of this product is its rated current capacity of 8A, which makes it suitable for a wide range of low to medium power electrical circuits. Whether you are working on control panels, distribution boards, or other electrical enclosures, these terminal blocks can handle the current demands effectively without compromising safety or performance.

The terminal blocks are engineered to support a rated voltage of up to 300V, offering excellent insulation and protection against electrical faults. This voltage rating ensures compatibility with many common electrical systems, providing versatility in application. The design also emphasizes safety, reducing the risk of short circuits and electrical hazards.

Installation flexibility is another key advantage of these terminal blocks. They are designed for two main mounting types: DIN Rail and Panel Mount. DIN Rail mounting allows for quick and easy installation in standard electrical cabinets and control panels, streamlining the assembly process. Panel Mount options enable secure attachment directly to flat surfaces, making these terminal blocks adaptable to various configuration requirements.

The wire range supported by these terminal blocks is from 24 to 14 AWG (approximately 1mm²), which covers a broad spectrum of wire sizes commonly used in industrial and commercial wiring. This range allows for compatibility with different wire gauges, accommodating both fine and thicker conductors to suit diverse electrical setups.

One of the critical electrical characteristics of the terminal blocks is their low contact resistance, measured at just 20 milliohms (mΩ). This low resistance ensures minimal power loss and heat generation at the connection points, enhancing overall system efficiency and reliability. It also contributes to stable electrical performance over long-term use, minimizing maintenance needs.

These terminal blocks come in different styles, including the highly popular Screw Clamp Terminal Block and the Barrier Strip Terminal Block. The Screw Clamp Terminal Block features screw-based clamps that firmly secure the wire ends, providing a robust mechanical and electrical connection. This design is favored for its ease of use and strong retention, which prevents wire loosening due to vibration or movement.

The Barrier Strip Terminal Block is another widely used variant, recognized for its simple and effective design. It features individual insulated barriers between terminals, preventing accidental short circuits and enhancing safety. Barrier Strip Terminal Blocks are ideal for applications where organized wiring and clear separation between circuits are critical.

Both the Screw Clamp Terminal Block and the Barrier Strip Terminal Block offer excellent durability and reliability, making them suitable for harsh industrial environments. Their robust construction ensures they can withstand mechanical stress, temperature variations, and other challenging operating conditions without degradation in performance.

In summary, these terminal blocks combine high electrical performance with user-friendly installation and versatile mounting options. Rated for 8A current and 300V voltage, supporting a wire range of 24 to 14 AWG, and featuring low contact resistance of 20 mΩ, they deliver dependable connections for a myriad of applications. Whether you choose the Screw Clamp Terminal Block or the Barrier Strip Terminal Block style, you can trust these components to provide secure, efficient, and safe electrical connections every time.

Features:

• Product Name: Terminal Blocks
• Type: Industrial Terminal Block
• Pin Header Material: Brass, Tin Plated
• Max Soldering Temperature: +250℃ for 5 seconds
• Insulation Resistance: 5000 MΩ / 1000V
• Wire Range: 24 - 14 AWG (1mm²)
• Suitable for use as an Electrical Terminal Connector
• Reliable Industrial Terminal Block for various electrical applications

Technical Parameters:

Applications:

The LP Terminal Blocks, model number LP-TB016, are high-quality electrical connectors designed and manufactured in China. Certified under ISO-9001:2000, these terminal blocks ensure reliable performance and meet stringent quality standards. With a minimum order quantity of 1000PCS and a competitive price of 0.04 per unit, these terminal blocks are an ideal choice for large-scale industrial and commercial applications. The product is packaged securely in tubes or trays, ensuring safe delivery within 7 to 10 days. Payment terms are flexible, including T/T, Western Union, and L/C, supporting smooth and convenient transactions.

The LP-TB016 Terminal Blocks are widely used in various application occasions and scenarios, particularly in electrical wiring and industrial automation. Their excellent temperature range of -40℃ to +105℃ and max soldering temperature of +250℃ for 5 seconds make them suitable for harsh environments and high-temperature conditions. These terminal blocks exhibit a strong withstanding voltage of AC1500/1Min, providing robust insulation and safety in electrical circuits.

One of the prominent application occasions for these terminal blocks is in control panels and switchgear assemblies. The Push Wire Terminal Block variant allows for quick and secure wire connections without the need for screws, enhancing installation speed and reducing maintenance time. Barrier Strip Terminal Blocks are frequently used in power distribution and signal transmission systems, providing clear separation between circuits to prevent short circuits and improve safety. Meanwhile, DIN Rail Terminal Blocks are commonly employed in industrial automation and machinery, offering modularity and easy mounting on standard DIN rails for efficient space utilization.

These terminal blocks are essential components in electrical engineering, manufacturing, and building automation projects. Their strip length of 6-7mm ensures compatibility with standard wire sizes, making them versatile for various wiring needs. The high supply ability of 100,000PCS ensures that LP can meet the demands of large projects and continuous production lines. Whether used in residential electrical installations, industrial control cabinets, or automotive wiring harnesses, LP Terminal Blocks deliver reliable, durable, and efficient electrical connections.

In summary, the LP-TB016 Terminal Blocks are suitable for a broad range of application scenarios, including industrial control systems, power distribution, signal processing, and automation equipment. Their certification, quality, and practical design features like Push Wire, Barrier Strip, and DIN Rail variants make them a preferred choice for engineers and technicians seeking dependable terminal block solutions.

Customization:

LP brand Terminal Blocks, model number LP-TB016, are high-quality Wire Connection Terminals designed for reliable and secure electrical connections. Manufactured in China and certified with ISO-9001:2000, these Modular Terminal Connectors ensure excellent performance and durability.

With a rated voltage of 300V and a rated current of 8A, the Multi Pole Terminal Blocks can handle wire ranges from 24 to 14 AWG (1mm²), making them suitable for various wiring applications. They operate efficiently within a temperature range of -40℃ to +105℃ and feature a withstanding voltage of AC1500/1Min, ensuring safety and stability under demanding conditions.

Available with a minimum order quantity of 1000PCS, these terminal blocks are competitively priced at $0.04 each. They are packaged securely in tubes or trays to protect the product during shipping. With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, LP ensures timely fulfillment of your orders.

Payment terms include T/T, Western Union, and L/C, providing flexibility for international transactions. Choose LP's LP-TB016 Terminal Blocks for dependable, efficient, and customizable wire connection solutions tailored to your needs.
