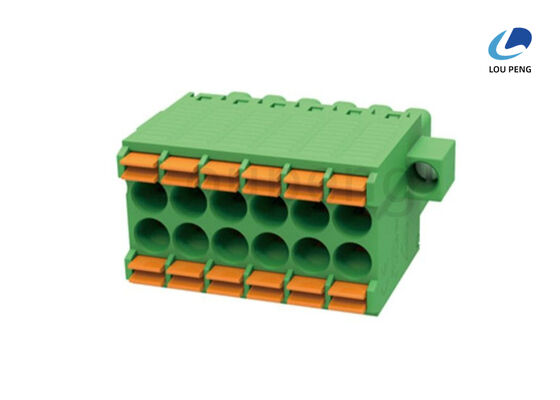

Temperature range minus 40 to plus 105 degrees Celsius Industrial Terminal Block insulation resistance 5000Mohm1000V solution for electrical wiring

Product Description:

The Multi Pole Terminal Block is an essential component designed to provide secure and reliable electrical connections in a wide range of applications. Crafted with precision and high-quality materials, this terminal block ensures excellent performance and durability, making it an ideal choice for both industrial and commercial electrical systems.

One of the standout features of this Multi Pole Terminal Block is its contact material. The contacts are made from phosphor bronze, a highly conductive and corrosion-resistant alloy. Phosphor bronze offers superior electrical conductivity and mechanical strength, ensuring consistent and stable connections over time. This material choice significantly enhances the reliability and longevity of the terminal block, even in demanding environments.

In terms of insulation, the Multi Pole Terminal Block boasts an impressive insulation resistance of 5000Mohm at 1000V. This high insulation resistance guarantees excellent electrical isolation between the connected wires and the surrounding environment, minimizing the risk of short circuits and electrical failures. Such robust insulation properties make these terminal blocks suitable for use in high-voltage applications and environments where safety is paramount.

The housing of the Multi Pole Terminal Block is constructed from PA66, a type of polyamide known for its high mechanical strength, thermal stability, and resistance to chemicals. Additionally, the housing meets the UL94V-0 flammability rating, which means it is highly flame-retardant and self-extinguishing in case of fire. This safety feature is critical for reducing fire hazards and ensuring compliance with stringent electrical safety standards.

Installation and wiring are made easy with the terminal block's design specifications. The recommended strip length for wires is between 6 to 7mm, providing an optimal balance between secure wire insertion and ease of connection. This allows for quick and efficient wiring processes, reducing installation time and potential errors.

The Multi Pole Terminal Block accommodates a versatile wire range from 24 to 14 AWG (1mm²), catering to various wiring needs. This flexibility enables the terminal block to be used with a wide spectrum of wire sizes, making it suitable for different electrical circuits and applications. Whether you are working on small control panels or larger distribution systems, this terminal block can handle the wiring requirements with ease.

Overall, the Multi Pole Terminal Block combines high-quality phosphor bronze contacts, excellent insulation resistance, durable PA66 housing with UL94V-0 certification, and user-friendly wiring specifications to deliver a dependable and safe electrical connection solution. Its ability to support multiple poles and a wide wire range makes it an indispensable component for electrical engineers, electricians, and technicians looking for a robust and efficient terminal block.

In summary, choosing this Multi Pole Terminal Block means investing in a product that prioritizes safety, performance, and ease of use. Its advanced material composition and design features ensure long-lasting electrical connections, reduced maintenance, and enhanced safety in various electrical installations. Whether it's for industrial automation, control systems, or general electrical wiring, this terminal block stands out as a reliable and high-quality solution.

Features:

• Product Name: Multi Pole Terminal Block
• Type: Electrical Terminal Connector
• Mounting Type: DIN Rail, Panel Mount
• Pin Header Material: Brass, Tin Plated
• Contact Material: Phosphor Bronze Brass
• Contact Resistance: 20mOhm
• Designed for reliable connections in Multi Pole Terminal Block applications

Technical Parameters:

Applications:

The LP brand's Terminal Block model LP-TB018, originating from China and certified with ISO-9001:2000, is a high-quality electrical component designed to meet various industrial and commercial wiring needs. With a rated voltage of 300V and rated current of 8A, this Multi Pole Terminal Block is ideal for applications requiring reliable and secure electrical connections. Its excellent insulation resistance of 5000Mohm/1000V and contact resistance of only 20mOhm ensure efficient performance and minimal energy loss, making it suitable for sensitive electronic equipment and control panels.

This Screw Clamp Terminal Block is widely used in electrical distribution systems, control cabinets, and industrial machinery where modular and flexible wiring solutions are essential. Thanks to its modular terminal connector design, the LP-TB018 allows for easy installation and maintenance, enabling quick connection and disconnection of wires without the need for special tools. This makes it highly suitable for automation systems, power distribution, and signal transmission applications.

In manufacturing facilities, the LP-TB018 terminal blocks are utilized to streamline complex wiring setups, facilitating orderly and safe electrical connections. They are also commonly applied in renewable energy systems, such as solar panel arrays and wind turbines, where dependable and durable connectors are critical. The terminal blocks’ ability to withstand AC1500V for 1 minute guarantees safety and longevity in high-voltage environments.

With a packaging option of tube or tray, and a minimum order quantity of 1000PCS at a competitive price of 0.04 per piece, these terminal blocks are ideal for bulk procurement by electrical contractors and OEMs. The delivery time of 7 to 10 days and flexible payment terms, including T/T, Western Union, and L/C, further enhance convenience for global buyers. The LP brand’s supply ability of 100,000PCS ensures steady availability to meet large-scale project demands.

Overall, the LP-TB018 Multi Pole Terminal Block is a versatile and reliable solution for a wide range of application occasions and scenarios, including industrial automation, electrical panel construction, power distribution, and modular wiring systems. Its robust design and certified quality make it an essential component for ensuring safety, efficiency, and ease of use in electrical installations worldwide.

Customization:

Our LP brand Terminal Blocks, model number LP-TB018, are high-quality Barrier Strip Terminal Blocks designed for reliable Wire Connection Terminal applications. Manufactured in China and certified with ISO-9001:2000, these Multi Pole Terminal Blocks ensure excellent performance and durability.

With a rated voltage of 300V and a wire range of 24 - 14AWG (1mm²), the LP-TB018 Terminal Blocks feature a strip length of 6 - 7mm and a low contact resistance of 20mOhm. They can withstand voltage up to AC1500/1Min, providing safe and stable connections.

We offer these terminal blocks in packaging options of Tube or Tray, with a minimum order quantity of 1000PCS and a competitive price of $0.04 per piece. Our supply ability reaches up to 100,000PCS, ensuring we meet your bulk order demands.

Delivery time is typically 7 to 10 days, with flexible payment terms including T/T, Western Union, and L/C. Choose our LP-TB018 Multi Pole Terminal Block for efficient and secure wire connection solutions in your electrical projects.

Support and Services:

Our Terminal Blocks product is supported by a dedicated technical team committed to ensuring seamless integration and optimal performance. We provide comprehensive installation guides, wiring diagrams, and troubleshooting documentation to assist users at every stage. Our support services include product selection assistance, customization options, and compatibility verification to meet specific application requirements. Additionally, we offer training sessions and webinars to help customers maximize the benefits of our terminal blocks. For any technical inquiries or service requests, our experts are available to provide prompt and effective solutions, ensuring minimal downtime and enhanced productivity.

Packing and Shipping:

Our Terminal Blocks are carefully packaged to ensure maximum protection during transit. Each unit is securely placed in anti-static bags to prevent any damage from electrostatic discharge. The products are then packed in sturdy cardboard boxes with adequate cushioning materials to absorb shocks and vibrations.

For bulk orders, terminal blocks are organized in trays or reels and packed in reinforced cartons to maintain their integrity throughout the shipping process. All packages are clearly labeled with product details, handling instructions, and shipping information to facilitate smooth logistics.

We offer reliable shipping options to deliver Terminal Blocks promptly and safely to your desired location. Tracking information is provided with every shipment, and our customer service team is available to assist with any delivery inquiries.
