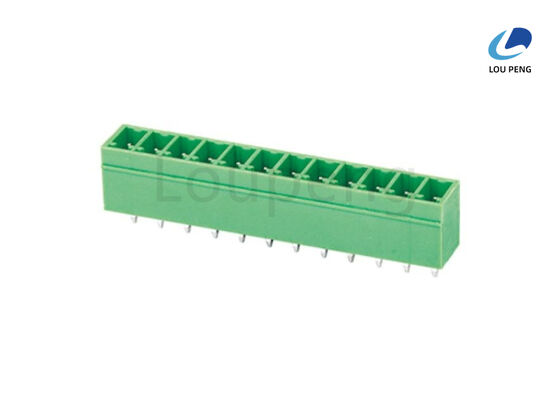

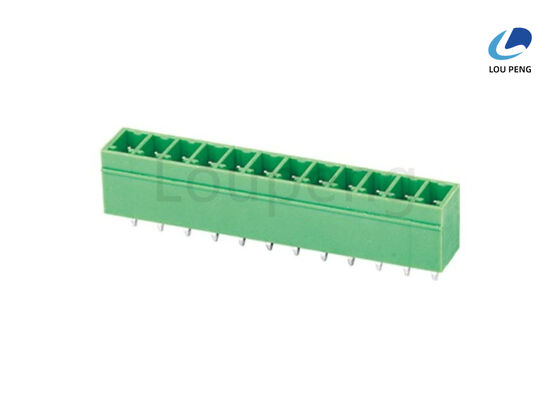

Rated Current 8A Electrical Terminal Connector Featuring PA66 Housing Ensuring Enhanced Durability and Electrical Safety

Product Description:

The Terminal Blocks product line offers a versatile and reliable solution for electrical connections in various industrial and commercial applications. Designed with a rated voltage of 300V, these terminal blocks ensure safe and efficient handling of electrical circuits, making them an essential component in control panels, distribution boards, and other electrical assemblies.

One of the key features of these terminal blocks is the use of high-quality contact materials. The contacts are made from phosphor bronze, a material renowned for its excellent conductivity, corrosion resistance, and mechanical strength. This ensures a stable and long-lasting electrical connection, minimizing the risk of failure due to wear or environmental factors.

In addition to the superior contacts, the terminal blocks boast exceptional insulation resistance of 5000Mohm at 1000V. This high insulation resistance guarantees minimal leakage currents and enhances the overall safety of the electrical system. It also ensures compliance with stringent industry standards and regulations, providing peace of mind to users and installers alike.

The housing of the terminal blocks is constructed from PA66, a high-performance polyamide material known for its durability and resistance to heat and chemicals. The housing meets the UL94V-0 flame retardant standard, indicating that it can withstand high temperatures without catching fire or spreading flames. This makes the terminal blocks suitable for use in environments where safety and fire resistance are critical considerations.

These terminal blocks are designed for flexible mounting options to accommodate various installation requirements. They can be securely mounted on DIN rails, which is a widely used mounting system in electrical cabinets and control panels. Additionally, they support panel mounting, allowing for direct attachment to flat surfaces. This versatility in mounting ensures ease of integration into different electrical setups, enhancing installation efficiency and adaptability.

The range includes multiple types of terminal blocks to suit diverse wiring needs. The Screw Clamp Terminal Block variant provides a robust and secure connection method using screws to clamp down on the wire. This traditional approach is highly reliable and widely used in many applications where a strong mechanical connection is necessary.

For applications requiring quicker and easier wiring, the Push Wire Terminal Block offers a convenient solution. This type allows wires to be inserted directly into the terminal without the need for screws, significantly reducing installation time and effort. It is ideal for situations where frequent wiring changes or maintenance are expected.

Additionally, the Barrier Strip Terminal Block is available for applications that demand clear separation and organization of circuits. The barrier strips provide physical partitions between terminals, enhancing safety and preventing accidental short circuits. This design is particularly useful in complex electrical systems where clear identification and isolation of connections are essential.

Overall, the Terminal Blocks product line combines high electrical performance, safety, and installation flexibility. With a rated voltage of 300V, phosphor bronze contacts, outstanding insulation resistance, flame-retardant PA66 housing, and versatile mounting options including DIN rail and panel mount, these terminal blocks are engineered to meet the rigorous demands of modern electrical installations. Whether you require the secure fastening of a Screw Clamp Terminal Block, the convenience of a Push Wire Terminal Block, or the organized separation provided by a Barrier Strip Terminal Block, this product range delivers dependable and efficient connectivity solutions.

Features:

• Product Name: Terminal Blocks
• Wire Connection Terminal with Pin Header Brass, Tin Plated for enhanced durability
• Mounting Type: Suitable for DIN Rail and Panel Mount installations
• Withstanding Voltage: AC1500V for 1 minute ensuring high electrical safety
• Rated Current: 8A for reliable current carrying capacity
• Contact Resistance: Low 20mOhm for efficient electrical conductivity
• Includes Push Wire Terminal Block design for easy and secure wiring
• Features Barrier Strip Terminal Block for organized and safe electrical connections

Technical Parameters:

Applications:

The LP-TB020 Terminal Blocks by LP are designed for versatile electrical applications, making them an essential component in a wide range of industries. As a Multi Pole Terminal Block, the LP-TB020 offers reliable and secure connections for multiple wires, ensuring efficient electrical distribution and organization. Its compatibility with wire ranges from 24 to 14 AWG (1mm²) makes it suitable for various wiring needs, providing flexibility in different electrical setups.

This Push Wire Terminal Block features a high-quality PA66 housing that complies with UL94V-0 flame retardant standards, ensuring safety and durability in demanding environments. The tin-plated brass pin headers deliver excellent conductivity and corrosion resistance, maintaining low contact resistance of just 20mOhm. These attributes guarantee stable and long-lasting connections, critical for maintaining system integrity in industrial and commercial applications.

LP-TB020 Terminal Blocks are ideal for mounting on DIN rails or panels, offering adaptability in installation and space-saving advantages. This makes them perfect for use in control cabinets, distribution boxes, and electrical panels where efficient wiring solutions are paramount. The design supports quick and secure wire insertion without the need for screws, streamlining the assembly process and reducing labor costs.

Certified with ISO-9001:2000, the LP-TB020 ensures consistent quality and reliability, meeting rigorous international standards. Manufactured in China and available with a minimum order quantity of 1000 pieces, these terminal blocks are competitively priced at $0.04 per unit, making them an economical choice for large-scale projects. Packaging options include tubes or trays, facilitating easy handling and storage.

With a supply capability of 100,000 pieces and a delivery time of 7 to 10 days, LP guarantees prompt fulfillment of orders, supported by flexible payment terms such as T/T, Western Union, and L/C. The LP-TB020 Electrical Terminal Connector is perfect for use in automation systems, power distribution, lighting control, and various other electrical installations where reliable multi-pole connectivity is required.

In summary, the LP-TB020 Multi Pole Terminal Block stands out as a robust and efficient Push Wire Terminal Block solution, combining safety, reliability, and ease of installation to meet the demanding needs of modern electrical applications.

Customization:

Introducing the LP Terminal Blocks, model number LP-TB020, manufactured in China and certified with ISO-9001:2000, ensuring top-quality standards. These Wire Connection Terminals are designed to handle a rated voltage of 300V and a rated current of 8A, making them reliable for various electrical applications. With a temperature range of -40℃ to +105℃ and a withstanding voltage of AC1500/1Min., these Push Wire Terminal Blocks guarantee durability and safety under demanding conditions.

The LP-TB020 Push Wire Terminal Block comes with flexible packaging options, including tube and tray packaging, facilitating easy handling and installation. We maintain a supply ability of 100,000PCS, with a minimum order quantity of 1000PCS, priced competitively at $0.04 per piece. Delivery is prompt, within 7 to 10 days, and we accept multiple payment terms such as T/T, Western Union, and L/C to accommodate your business needs.

Choose LP Terminal Blocks for your Wire Connection Terminal needs and experience superior quality and service. Our Push Wire Terminal Blocks are ideal for efficient and secure wire connections, ensuring your projects run smoothly and safely.

Support and Services:

Our Terminal Blocks product is designed to provide reliable and secure electrical connections for a wide range of applications. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting, and maintenance tips to ensure optimal performance.

We provide detailed product documentation, including datasheets, wiring diagrams, and application notes to help you understand the specifications and proper usage of our terminal blocks. Our support team is equipped to assist with compatibility questions, customization requests, and integration with other system components.

In addition to technical support, we offer various services such as product training sessions, on-site consultations, and repair services to help you maximize the value of your terminal block solutions. Our commitment is to deliver timely and effective support to minimize downtime and enhance your system’s reliability.

Packing and Shipping:

Our Terminal Blocks are carefully packaged to ensure maximum protection during transit. Each unit is securely enclosed in anti-static bags and cushioned with foam inserts to prevent damage from shocks and vibrations. The products are then placed in sturdy, corrugated cardboard boxes that are clearly labeled with product details and handling instructions.

For bulk orders, multiple boxes are packed into reinforced shipping cartons to optimize space and provide additional protection. All packages undergo a thorough inspection before dispatch to guarantee quality and accuracy.

We offer reliable shipping options with trusted carriers to ensure timely delivery. Tracking information is provided for all shipments, allowing customers to monitor their orders from dispatch to arrival. Special handling requests can be accommodated upon prior notice to meet specific shipping requirements.
