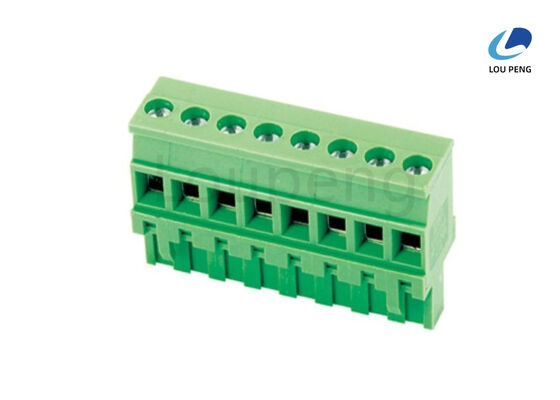

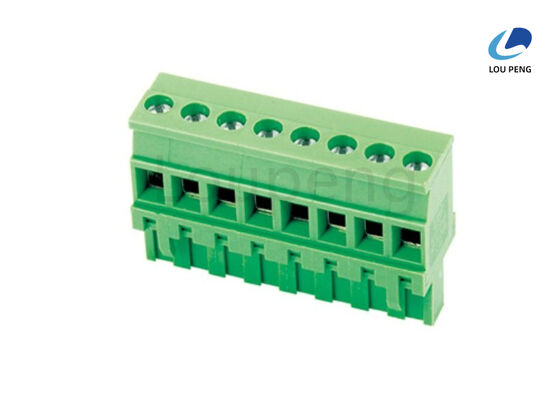

Contact resistance 20mOhm DIN Rail Terminal Block designed with Phosphor Bronze Contact Brass ensuring circuit connectivity

Product Description:

The Terminal Blocks product is a highly reliable and efficient solution designed to meet various electrical connection needs in both industrial and commercial applications. Engineered with precision, this product offers exceptional performance characteristics, making it an ideal choice for professionals seeking durable and safe electrical connection components. The Terminal Blocks feature a strip length of 6 to 7mm, providing the perfect balance between ease of wire insertion and secure contact, ensuring that wires are firmly held in place for optimal conductivity and mechanical stability.

Rated to handle a current of up to 8A, this Terminal Blocks product is suitable for a wide range of electrical applications where moderate current levels are prevalent. The rated voltage capacity of 300V further enhances its versatility, allowing it to be safely used in circuits that require reliable voltage tolerance. These specifications make the Terminal Blocks an excellent choice for wiring panels, control systems, and other electrical assemblies where consistent electrical performance and safety are paramount.

One of the critical features of this Terminal Blocks product is its outstanding insulation resistance, rated at 5000MΩ at 1000V. This high insulation resistance ensures minimal leakage currents and excellent protection against electrical faults and short circuits, contributing to the overall safety and longevity of the electrical system. The impressive insulation performance also helps in maintaining signal integrity and preventing interference in sensitive electronic circuits.

In addition to insulation, the contact resistance of this Terminal Blocks product is remarkably low, at just 20mΩ. Low contact resistance is crucial in minimizing power loss and heat generation at connection points, thus enhancing the efficiency and reliability of the electrical system. This characteristic ensures that the terminal block maintains stable electrical connections over time, even under varying environmental conditions.

Specifically designed as a Panel Mount Terminal Block, this product facilitates easy and secure mounting onto various panel types, offering a neat and organized wiring solution. The panel mount design not only simplifies installation but also ensures that the terminal block remains firmly fixed in place, reducing the risk of accidental disconnections or loosening due to vibrations or mechanical stress.

Moreover, this product is available as a Multi Pole Terminal Block, which means it supports multiple electrical connections within a single unit. This multi-pole configuration is highly beneficial for complex wiring setups where numerous circuits need to be connected and managed efficiently. By consolidating multiple connections into one compact component, it reduces wiring clutter and enhances the overall organization of electrical panels and control boxes.

As an Electrical Terminal Connector, this Terminal Blocks product excels in providing secure and reliable electrical connections between wires and other components. Its design ensures ease of wire insertion and removal, which simplifies maintenance and troubleshooting tasks. The robust construction materials used in manufacturing these terminal blocks contribute to their durability, corrosion resistance, and long service life, even in demanding environments.

In summary, the Terminal Blocks product combines excellent electrical specifications with practical design features to deliver a superior connection solution. With a strip length of 6-7mm, a rated current of 8A, a rated voltage of 300V, insulation resistance of 5000MΩ/1000V, and contact resistance of 20mΩ, it meets and exceeds the requirements of modern electrical systems. Whether you need a reliable Panel Mount Terminal Block, a versatile Multi Pole Terminal Block, or a trusted Electrical Terminal Connector, this product offers the performance, safety, and convenience you need for all your wiring projects.

Features:

• Product Name: Terminal Blocks
• Withstanding Voltage: AC1500/1Min.
• Max Soldering Temperature: +250℃ for 5 seconds
• Mounting Type: DIN Rail, Panel Mount
• Insulation Resistance: 5000MΩ/1000V
• Contact Resistance: 20mΩ
• Includes Screw Clamp Terminal Block for secure connections
• Available as Panel Mount Terminal Block for versatile installation
• Designed as Panel Mount Terminal Block to fit various panel setups

Technical Parameters:

Applications:

The LP brand Terminal Blocks, model number LP-TB006, are precision-engineered components designed to provide reliable and efficient wire connections in various electrical and industrial applications. Manufactured in China and certified under ISO-9001:2000, these terminal blocks meet high-quality standards, making them an ideal choice for both small-scale and large-scale projects. With a minimum order quantity of 1000PCS and a competitive price of $0.04 per piece, LP Terminal Blocks offer great value without compromising on performance.

These DIN Rail Terminal Blocks are widely used in industrial automation systems, control panels, and electrical distribution boards. Their robust construction, featuring a housing made of PA66 material rated UL94V-0 for flame retardancy, ensures durability and safety even in harsh environments. The phosphor bronze contact brass provides excellent conductivity and corrosion resistance, maintaining a low contact resistance of 20mOhm, which is critical for stable electrical connections.

Rated for a current of 8A and capable of operating within a temperature range of -40℃ to +105℃, the LP-TB006 Industrial Terminal Blocks are suitable for a variety of demanding scenarios. These applications include factory automation, machinery wiring, power distribution networks, and control equipment where reliable wire connection terminals are essential for safety and functionality.

The packaging options, including tube and tray, facilitate easy handling and installation, optimizing the assembly process in manufacturing environments. With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, LP ensures timely availability, which is crucial for project schedules and inventory management.

Payment flexibility is also a key advantage, with options including T/T, Western Union, and L/C, catering to international clients and different business requirements. Overall, the LP LP-TB006 DIN Rail Terminal Block is a dependable solution for electrical engineers, system integrators, and maintenance professionals who need a high-quality Industrial Terminal Block for secure and efficient wire connections in various industrial and commercial settings.

Customization:

Introducing the LP brand Terminal Blocks, model number LP-TB006, proudly made in China and certified with ISO-9001:2000 to ensure the highest quality standards. Our Modular Terminal Connector offers reliable and efficient electrical connections, perfect for various industrial applications.

This Push Wire Terminal Block features a robust housing made from PA66 with UL94V-0 flame retardant rating, ensuring safety and durability. Designed for versatile installation, it supports both DIN Rail and Panel Mount types, including the Panel Mount Terminal Block configuration.

With a rated voltage of 300V and a withstanding voltage of AC1500/1Min., these terminal blocks guarantee excellent electrical insulation and performance. The pin header brass components are tin plated to prevent corrosion and maintain conductivity.

We offer a minimum order quantity of 1000PCS at a competitive price of $0.04 each. Packaging is available in Tube or Tray formats, tailored to your needs. Our supply ability reaches up to 100,000PCS, with a delivery time of 7 to 10 days to meet your project deadlines.

Payment terms include T/T, Western Union, and L/C for your convenience. Choose LP’s Terminal Blocks for dependable, customizable solutions in your electrical systems.

Support and Services:

Our Terminal Blocks product is designed to provide secure and reliable electrical connections for various industrial and commercial applications. For technical support, please refer to the product datasheets and installation guides available on our website to ensure proper usage and compatibility.

If you encounter any issues or require assistance with installation, configuration, or maintenance, our technical support team is ready to provide expert guidance. We recommend checking the troubleshooting section in the product manual for common issues and solutions.

For customized solutions or integration support, our engineering team can assist with design consultations to optimize the performance of the Terminal Blocks in your specific application.

We also offer repair and replacement services under warranty terms. Please ensure you have the product details and purchase information ready when requesting service support.

Regular maintenance and inspection of the Terminal Blocks are advised to ensure longevity and safety. Follow the recommended cleaning procedures and verify connection integrity periodically.

Additional resources, including FAQs, software updates, and technical bulletins, are available on our support portal to help you maximize the value and functionality of your Terminal Blocks.

Packing and Shipping:

Each Terminal Block is carefully packaged to ensure safety and protection during transit. The products are placed in sturdy, high-quality boxes with internal padding to prevent damage from shocks or vibrations. Packaging includes clear labeling with product specifications, batch numbers, and handling instructions.

For shipping, Terminal Blocks are securely packed in cartons or pallets depending on the order size. We use reliable shipping partners to guarantee timely delivery. All shipments are accompanied by necessary documentation, including packing lists and certificates of compliance, ensuring a smooth customs process and customer satisfaction.
