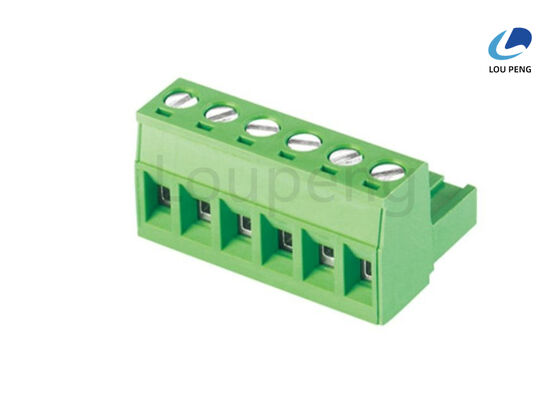

Housing PA66 Terminal Blocks Rated Current 8A Withstanding Voltage AC1500 1Min Ideal for Industrial Electrical Connections and Control Panels

Product Description:

The Multi Pole Terminal Block is an essential component widely used in electrical and electronic applications to ensure secure and reliable connections. Designed with precision and durability in mind, this Industrial Terminal Block offers exceptional performance, making it an ideal choice for various industrial environments. Constructed with a high-quality PA66 housing, it complies with UL94V-0 standards, ensuring excellent flame retardancy and enhanced safety in demanding conditions.

One of the standout features of this Multi Pole Terminal Block is its impressive withstanding voltage capacity, rated at AC1500 volts for 1 minute. This high voltage resistance guarantees that the terminal block can handle significant electrical stress without compromising performance or safety. It is particularly beneficial in industrial applications where electrical surges and high voltage conditions are common.

The temperature range of the terminal block is another critical attribute that highlights its robustness. It operates efficiently within a wide temperature spectrum from -40℃ to +105℃. This broad range allows the Industrial Terminal Block to function reliably in both extreme cold and hot environments, making it versatile for use in various geographical locations and industrial settings. Whether it’s used in outdoor installations or inside machinery that generates substantial heat, the Multi Pole Terminal Block maintains stable electrical connections under these conditions.

Attention to detail is evident in the design of the strip length, which is optimized between 6 to 7mm. This specific strip length ensures easy and secure wire insertion, facilitating efficient wiring and reducing installation time. Proper strip length is crucial for achieving a strong mechanical and electrical connection, and this terminal block is engineered to meet those standards perfectly.

Contact resistance is a vital factor in determining the efficiency of any terminal block. This Multi Pole Terminal Block boasts a low contact resistance of just 20 milliohms. Low contact resistance minimizes energy loss, reduces heat generation, and enhances overall electrical conductivity. This feature is particularly important in industrial applications where maintaining high efficiency and preventing overheating can significantly impact system performance and longevity.

The Multi Pole Terminal Block is designed to accommodate multiple wire connections, which simplifies the wiring process in complex electrical circuits. Its multi-pole design allows for the organization and consolidation of numerous connections in a compact, space-saving format. This not only improves the neatness and manageability of wiring panels but also enhances safety by reducing the risk of loose or exposed wires.

Industrial environments demand components that can withstand rigorous conditions, and the Industrial Terminal Block meets these demands with its robust construction and reliable performance. It is suitable for a wide range of applications including control panels, distribution boards, machinery, and automation systems. The terminal block’s durability and electrical reliability ensure that it supports continuous operation with minimal maintenance, thereby reducing downtime and operational costs.

In summary, the Multi Pole Terminal Block is a high-performance, reliable, and safe solution for connecting multiple wires in industrial and commercial electrical systems. Its PA66 housing with UL94V-0 certification ensures flame resistance, while its ability to withstand 1500V AC voltage for one minute guarantees electrical safety under high stress. Operating efficiently within a -40℃ to +105℃ temperature range, it adapts well to various environmental challenges. The optimized strip length of 6 to 7mm and low contact resistance of 20mOhm contribute to secure and efficient wire connections. As a versatile Industrial Terminal Block, it offers exceptional durability and performance, making it a trusted choice for professionals seeking dependable electrical connectivity solutions.

Features:

• Product Name: Terminal Blocks
• Type: Multi Pole Terminal Block
• Wire Connection Terminal for secure and reliable connections
• Mounting Type: DIN Rail, Panel Mount
• Suitable for use as a DIN Rail Terminal Block
• Max Soldering Temperature: +250℃ for 5 seconds
• Withstanding Voltage: AC1500V for 1 minute
• Housing Material: PA66, rated UL94V-0 for flame retardancy

Technical Parameters:

Applications:

The LP brand Push Wire Terminal Block, model number LP-TB003, is a high-quality Electrical Terminal Connector designed and manufactured in China. Certified with ISO-9001:2000, this terminal block guarantees reliable performance and safety in various electrical applications. With a wire range accommodating 24 to 14 AWG (1mm²), it is ideal for connecting wires securely and efficiently. The product boasts a withstanding voltage of AC1500/1Min and an insulation resistance of 5000MΩ/1000V, ensuring excellent electrical insulation and durability under demanding conditions.

Primarily used in industrial electrical installations, the LP-TB003 Push Wire Terminal Block is perfect for control panels, distribution boards, and wiring systems where secure and quick wire connections are essential. Its tin-plated brass pin headers provide corrosion resistance and superior conductivity, making it suitable for long-term use in both commercial and residential electrical projects. The rated voltage of 300V makes it compatible with a range of low to medium voltage applications.

These terminal blocks are packaged in tubes or trays for easy handling and installation, with a minimum order quantity of 1000PCS, making them suitable for bulk purchases by manufacturers, electrical contractors, and wholesalers. With a competitive price of 0.04 per piece and a supply ability of up to 100,000PCS, the LP-TB003 is an economical choice for large-scale projects. Delivery is prompt, typically within 7 to 10 days, and payment terms are flexible, including T/T, Western Union, and L/C.

In practical scenarios, the LP Push Wire Terminal Block is widely used in automation equipment, household appliances, lighting fixtures, and telecommunications devices. Its push-wire design allows for quick installation and maintenance without the need for screws, which significantly reduces labor time and the risk of loose connections. This makes it particularly valuable in environments where safety and reliability are paramount.

Moreover, the LP Electrical Terminal Connector is an excellent solution for prototyping and assembly lines where frequent wire changes or adjustments are required. Its robust construction ensures stable electrical connections even under vibration or temperature fluctuations. Overall, the LP-TB003 Push Wire Terminal Block is a versatile and dependable component for a wide range of electrical wiring applications, offering both efficiency and peace of mind for users.

Customization:

Our LP brand Terminal Blocks (Model Number: LP-TB003) are high-quality Electrical Terminal Connectors designed for reliable Wire Connection Terminal solutions. Manufactured in China and certified with ISO-9001:2000, these Screw Clamp Terminal Blocks ensure excellent performance with a rated voltage of 300V and a rated current of 8A.

We offer customization services with a minimum order quantity of 1000PCS. The Terminal Blocks can be mounted using DIN Rail or Panel Mount methods to suit your installation needs. Each unit features a low contact resistance of 20mOhm for optimal electrical conductivity.

Packaging options include Tube or Tray to protect the products during shipment. Our supply ability is 100,000PCS with a delivery time of 7 to 10 days. Payment terms accepted are T/T, Western Union, and L/C, providing flexible options for your convenience.

Choose LP Terminal Blocks for a reliable and efficient Wire Connection Terminal solution, perfect for various electrical applications requiring secure and stable connections.

Support and Services:

Our Terminal Blocks product line is supported by comprehensive technical assistance to ensure optimal performance and reliability. Our technical support team is available to provide guidance on product selection, installation procedures, wiring configurations, and troubleshooting common issues.

We offer detailed documentation, including datasheets, wiring diagrams, and installation manuals, to help users understand the specifications and proper use of our terminal blocks. Additionally, we provide training resources and application notes to assist engineers and technicians in implementing our products effectively within their systems.

For complex applications, our experts can offer customized solutions and advice tailored to specific project requirements. We are committed to ensuring that our terminal blocks integrate seamlessly into your electrical systems, delivering safety, durability, and ease of maintenance.

Our after-sales services include warranty support, replacement parts, and repair services to maintain the longevity and performance of your terminal blocks. We strive to respond promptly to all inquiries and provide timely resolutions to support your operational continuity.

Packing and Shipping:

Each terminal block is carefully packaged to ensure protection during transportation. The product is placed in anti-static bags and then secured in sturdy cardboard boxes with appropriate cushioning materials to prevent damage.

Standard packaging quantities are labeled clearly on each box for easy identification. For bulk orders, terminal blocks are packed in larger cartons with additional protective layers as needed.

All packages are marked with handling instructions and product information to facilitate smooth shipping and handling processes.

Shipping is carried out through reliable carriers with tracking options available to ensure timely and safe delivery to the customer’s specified location.
