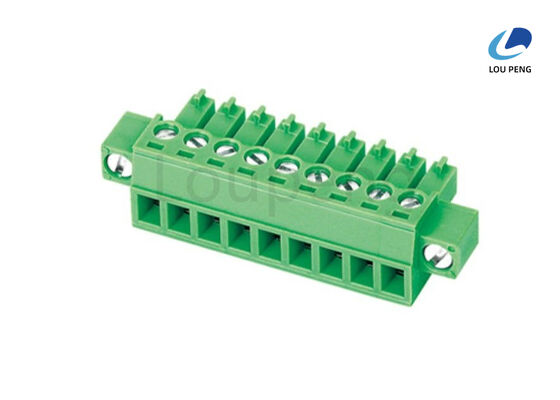

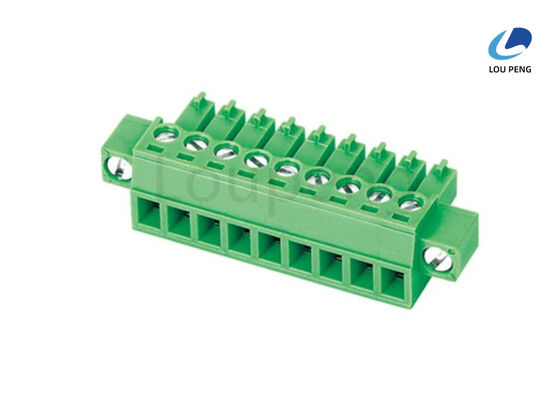

Contact Brass Phosphor Bronze Push Wire Terminal Block Panel Mount Connector Designed for and Electrical Wiring in Control Panels

Product Description:

The Barrier Strip Terminal Block is a reliable and versatile component widely used in electrical and electronic applications to provide secure and efficient connections. Designed to meet rigorous industry standards, this terminal block ensures optimal performance and safety in various panel mounting scenarios. With a withstanding voltage of AC1500/1Min, it offers excellent insulation and protection against electrical surges, making it suitable for use in demanding environments where voltage stability is critical.

One of the key features of this Barrier Strip Terminal Block is its exceptional contact resistance, rated at 20mOhm. This low contact resistance ensures minimal energy loss and efficient electrical conductivity, which is essential for maintaining the integrity and performance of connected circuits. Additionally, the insulation resistance of 5000Mohm at 1000V further enhances the safety and reliability of the terminal block, preventing unwanted current leakage and ensuring long-term durability.

Engineered to handle a rated current of 8A, this Panel Mount Terminal Block is ideal for a wide range of applications, including industrial control systems, instrumentation, and power distribution panels. The 8A current rating strikes a balance between compact design and sufficient capacity, making it suitable for both low and moderate power connections. Users can trust this terminal block to maintain stable and secure electrical connections even under continuous load conditions.

The Barrier Strip Terminal Block is also designed with thermal endurance in mind. It can withstand soldering temperatures of up to +250℃ for 5 seconds, allowing for reliable and robust soldered connections without compromising the structural integrity of the component. This high soldering tolerance facilitates easy and efficient assembly processes while ensuring that the terminal block maintains its performance characteristics after soldering.

In terms of construction, the Barrier Strip Terminal Block features a sturdy and compact design that simplifies installation and maintenance. Its panel mount configuration allows for secure attachment to various control panels and enclosures, providing a stable platform for wiring connections. The block’s design also ensures clear separation between terminals, reducing the risk of short circuits and enhancing safety during wiring operations.

Moreover, the use of high-quality materials in the Barrier Strip Terminal Block contributes to its longevity and resistance to environmental factors such as moisture, dust, and mechanical stress. This makes it an excellent choice for applications in harsh industrial environments where reliability and durability are paramount. The terminal block’s robust insulation and secure clamping mechanism guarantee consistent performance over extended periods.

In summary, the Barrier Strip Terminal Block is a dependable and efficient solution for electrical connection needs, offering a combination of high withstanding voltage, low contact resistance, excellent insulation resistance, and a suitable current rating of 8A. Its ability to endure high soldering temperatures and its panel mount design make it a practical choice for various industrial and commercial applications. Whether used in control panels, instrumentation, or power distribution systems, this terminal block ensures safe, secure, and efficient electrical connections, meeting the demands of modern electrical engineering.

Features:

• Product Name: Terminal Blocks
• Contact Material: Phosphor Bronze
• Withstanding Voltage: AC1500V for 1 minute
• Rated Current: 8A
• Rated Voltage: 300V
• Maximum Soldering Temperature: +250℃ for 5 seconds
• Suitable for Screw Clamp Terminal Block applications
• Compatible with Push Wire Terminal Block designs
• Ideal for use in Industrial Terminal Block setups

Technical Parameters:

This Electrical Terminal Connector is designed with high reliability and safety standards. The Electrical Terminal Connector features a rated voltage of 300V and a rated current of 8A, ensuring stable performance. With its robust construction and excellent materials, this Electrical Terminal Connector is ideal for various electrical applications.

Applications:

The LP brand Terminal Blocks, model number LP-TB002, are precision-engineered connectors designed to provide secure and reliable electrical connections in various industrial and commercial applications. Manufactured in China and certified under ISO-9001:2000 standards, these terminal blocks demonstrate exceptional quality and durability. Their robust design includes a housing made of PA66 material rated UL94V-0 for flame retardancy, ensuring safety and longevity even in demanding environments. The terminal blocks feature tin-plated brass pin headers, enhancing corrosion resistance and electrical conductivity.

One of the key application occasions for the LP-TB002 terminal blocks is in electrical control panels, where the Screw Clamp Terminal Block configuration allows for quick and stable wire connections. This makes them ideal for multi circuit wiring tasks, ensuring that connections remain secure despite vibrations or temperature fluctuations. With a temperature range from -40℃ to +105℃, these terminal blocks can withstand harsh environments, making them suitable for outdoor and industrial panel mount installations.

The Multi Pole Terminal Block design of the LP-TB002 facilitates the efficient organization of multiple electrical circuits within compact spaces. This makes them perfect for use in complex machinery, automation equipment, and power distribution systems where multiple poles must be connected and managed simultaneously. The terminal blocks' withstanding voltage of AC1500/1Min ensures that they can handle high voltage applications safely, preventing electrical faults and enhancing system reliability.

Additionally, the LP-TB002 terminal blocks are widely used in renewable energy systems, transportation equipment, and household appliances due to their dependable performance and ease of installation. Their strip length of 6-7mm is optimized for secure wire entry, reducing the risk of loose connections. Packaging options include tube or tray formats, supporting efficient handling and installation processes.

With a minimum order quantity of 1000PCS and a competitive price of 0.04 per unit, these terminal blocks offer excellent value for large-scale projects. The supply ability of 100,000PCS and a delivery time of 7 to 10 days make them a reliable choice for manufacturers and distributors. Payment terms are flexible, including T/T, Western Union, and L/C, facilitating smooth international transactions.

In summary, the LP-TB002 Screw Clamp Terminal Block, Multi Pole Terminal Block, and Panel Mount Terminal Block are versatile components suitable for a wide range of electrical and electronic applications. Their high-quality construction, certifications, and performance attributes make them an indispensable part of modern electrical systems.

Customization:

Our LP brand Terminal Blocks, model number LP-TB002, are manufactured in China and certified with ISO-9001:2000, ensuring high quality and reliability. We specialize in customizing Screw Clamp Terminal Blocks, Barrier Strip Terminal Blocks, and Industrial Terminal Blocks to meet your specific requirements.

These terminal blocks feature a contact brass made of phosphor bronze and pin headers plated with tin, providing excellent conductivity and durability. They support a rated current of 8A and have a withstanding voltage of AC1500/1Min, along with an insulation resistance of 5000Mohm/1000V, making them ideal for industrial applications.

We offer a minimum order quantity of 1000PCS, with a competitive price of $0.04 per piece. Packaging options include tube or tray to suit your logistics preferences. Our supply ability is up to 100,000PCS, ensuring we can meet large volume demands.

Delivery time is typically between 7 to 10 days, and we accept payment terms including T/T, Western Union, and L/C. Choose our customized terminal blocks for reliable performance and tailored solutions in your electrical projects.

Support and Services:

Our Terminal Blocks product is designed to provide reliable and efficient electrical connections in various industrial and commercial applications. For technical support, please refer to the detailed product manuals and datasheets available on our website, which include installation guidelines, wiring diagrams, and safety instructions.

If you encounter any issues or require assistance with product selection, installation, or troubleshooting, our technical support team is ready to help. We recommend verifying compatibility with your system specifications and ensuring proper torque settings during installation to avoid connection failures.

Additionally, we offer a range of services including product customization, training sessions for proper usage, and on-site support for complex installations. Regular maintenance checks are advised to maintain optimal performance and extend the lifespan of your terminal blocks.

For warranty and repair services, please review the terms and conditions provided with your product. We are committed to delivering high-quality support to ensure your satisfaction and the uninterrupted operation of your electrical systems.

Packing and Shipping:

Our Terminal Blocks are carefully packaged to ensure maximum protection during transit. Each unit is individually wrapped with anti-static materials and securely placed in a sturdy cardboard box. Multiple units are then packed in larger cartons with adequate cushioning to prevent movement and damage.

For shipping, we offer a variety of options including standard ground, expedited, and international freight services. All packages are labeled clearly with product information and handling instructions. We work with trusted carriers to ensure timely and safe delivery of your Terminal Blocks anywhere in the world.
