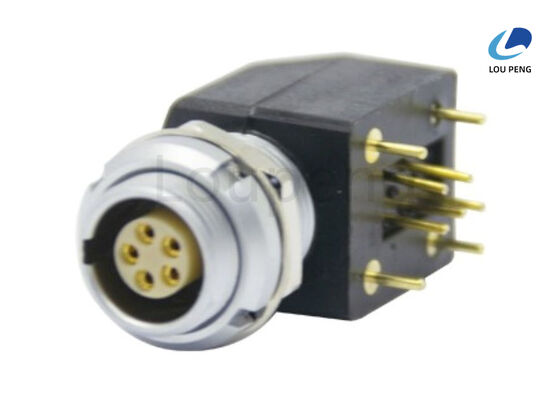

Environmental Experiment 50 175 21 Push Pull Circular Connector Connector Ideal for Industrial Equipment and Harsh Conditions

Product Description:

The Push Pull Connector is an advanced and reliable solution designed to meet the demanding requirements of modern electrical and electronic applications. Engineered with a robust copper alloy shell, this connector offers exceptional durability and strength while maintaining excellent conductivity. The choice of copper alloy for the shell material ensures that the connector can withstand harsh environments and mechanical stresses, making it a preferred option in industries where reliability and longevity are critical.

One of the standout features of this Push Pull Circular Connector is its outstanding leakage rate performance. With a helium leakage rate of less than 10 ^-7 mbar·L·s ^-1 , it guarantees superior sealing and airtightness. This low leakage rate is essential for applications requiring high levels of environmental protection and contamination prevention, ensuring that sensitive internal components remain safe from dust, moisture, and other external elements. This characteristic significantly enhances the connector’s suitability for use in aerospace, medical devices, and other precision fields.

The Push Pull Coupling Connector is also designed to endure high-impact conditions. It boasts an impressive impact resistance of 100g for 6 milliseconds, which means it can absorb and withstand sudden shocks and vibrations without compromising its structural integrity or electrical performance. This makes the connector highly reliable in dynamic operational environments such as automotive, industrial machinery, and military equipment, where mechanical impacts are common.

To ensure electrical insulation and safety, the connector utilizes high-quality PPS (Polyphenylene Sulfide) as its insulation material. PPS is known for its excellent thermal stability, chemical resistance, and electrical insulating properties. This material choice enhances the overall performance of the Push Pull Signal Connector by providing reliable insulation even under high temperatures and challenging environmental conditions, thereby safeguarding the integrity of signal transmission and power delivery.

In terms of environmental protection, the Push Pull Connector is rated with a protection grade of IP50. This rating indicates that the connector is protected against dust ingress sufficient to prevent harmful deposits but is not protected against water. While it may not be suitable for wet environments, its dust protection makes it ideal for use in controlled indoor settings, electronic enclosures, and applications where dust contamination could impair functionality.

The push-pull coupling mechanism of this connector ensures quick and secure mating and unmating operations. This feature simplifies installation and maintenance processes, reducing downtime and improving overall operational efficiency. The connector’s design also promotes a reliable electrical connection with minimal signal loss, making it an excellent choice for signal transmission applications where integrity and precision are paramount.

Additionally, the Push Pull Signal Connector is versatile and compatible with a wide range of cable sizes and configurations. This flexibility allows it to be easily integrated into various systems, from communication devices to industrial automation setups. Its circular design provides space-efficient connectivity while ensuring robust mechanical and electrical performance.

In summary, the Push Pull Circular Connector combines a durable copper alloy shell, exceptional leakage prevention, high impact resistance, and superior insulation properties to deliver a high-performance, dependable connector solution. Its IP50 protection grade and push-pull coupling design further enhance its usability across diverse applications. Whether used in industrial, aerospace, medical, or communication sectors, this connector stands out as a premium choice for those seeking reliability, ease of use, and long-lasting performance in their electrical connections.

Features:

• High-quality Push Pull Electrical Connector designed for reliable connections.
• Protection Grade: IP50, ensuring moderate protection against dust and contaminants.
• Wide temperature range for metal components: -55°C to +250°C, suitable for extreme environments.
• Plastic temperature range options:
  • PSU: -55°C to +150°C
  • PPSU: -55°C to +180°C
  • PEEK: -55°C to +250°C
• Durable shell material made of Copper Alloy for enhanced strength and conductivity.
• Excellent shielding effect with > 80 dB attenuation at 1 GHz and > 95 dB at 10 MHz, minimizing electromagnetic interference.
• Ideal as a Push Pull Cable Connector for various industrial and electronic applications.
• Designed to provide secure and quick connections with Push Pull Electrical Connector technology.

Technical Parameters:

Applications:

The LP Push Pull Connector, model number LP-PU007, is a highly reliable and versatile component designed for various industrial and commercial applications. Manufactured in China and certified with ISO-9001:2000, this Push Pull Coupling Connector ensures superior quality and consistent performance. It is available in both straight and right-angle orientations, making it adaptable to different installation requirements. The panel mount design further enhances its ease of integration into control panels, machinery, and other equipment.

This Push Pull Waterproof Connector is especially suitable for environments that demand high resistance to water, corrosion, and harsh chemicals. It boasts excellent disinfection resistance, withstanding up to 200 cycles for PEEK materials, over 100 cycles for PPSU, and 20 cycles for PSU, making it ideal for medical and laboratory equipment that require frequent sterilization. Additionally, its solvent corrosion resistance ranges from average to very good depending on the material, ensuring long-lasting durability in chemically aggressive environments.

In industrial settings where exposure to salt spray is common, such as marine or coastal applications, the LP-PU007 excels with a salt spray corrosion resistance exceeding 144 hours. This makes it an excellent choice for outdoor installations where environmental factors could otherwise degrade connector performance. The Push Pull Electrical Connector’s robust construction and reliable locking mechanism guarantee secure connections that withstand vibration and mechanical stress.

The LP Push Pull Connector is perfect for use in automation systems, robotics, instrumentation, and telecommunications equipment. Its quick connect and disconnect feature allows for efficient maintenance and replacement, reducing downtime and improving operational efficiency. With a minimum order quantity of 1000PCS and a competitive price of $0.08 per unit, it is well-suited for large-scale manufacturing and supply.

Packaging options include tubes and trays, facilitating organized storage and handling. The product is supplied with a delivery time of 7 to 10 days, supported by flexible payment terms such as T/T, Western Union, and L/C. With a supply ability of 100,000PCS, LP ensures a steady and reliable source for your connector needs.

Overall, the LP Push Pull Connector LP-PU007 is an excellent choice for applications requiring a durable, waterproof, and easy-to-use Push Pull Coupling Connector. Its combination of corrosion resistance, disinfection endurance, and versatile mounting options make it suitable for a wide range of occasions and scenarios in industries like healthcare, marine, automation, and telecommunications.

Customization:

Our LP Push Pull Electrical Connector, model number LP-PU007, is a high-quality Push Pull Cable Connector designed and manufactured in China. Certified with ISO-9001:2000, this product guarantees reliability and performance for your applications.

We offer product customization services with a minimum order quantity of 1000PCS, priced competitively at $0.08 per unit. The Push Pull Cable Connector comes with packaging options including Tube or Tray to suit your logistics needs.

The LP-PU007 features excellent shielding effect with > 80 dB at 1GHz and > 95 dB at 10MHz, ensuring superior signal integrity. It demonstrates solvent corrosion resistance levels of Average (PSU), Good (PPSU), and Very Good (PEEK), making it durable under various environmental conditions.

With a leakage rate (He) of less than 10⁻⁷ mbar·L·s⁻¹, and an anti-vibration performance rated at 10-2000Hz, 15g, this Push Pull Electrical Connector is ideal for panel mount installations requiring robust and reliable connections.

We maintain a strong supply ability of 100,000PCS and offer flexible payment terms including T/T, Western Union, and L/C. Delivery time is estimated between 7 to 10 days, ensuring prompt fulfillment of your customized orders.

Support and Services:

Our Push-Pull Connectors are designed to provide reliable and secure connections in a variety of demanding applications. For technical support, please ensure that you have the product model number and serial number available when seeking assistance. Our support team can provide guidance on installation, maintenance, troubleshooting, and compatibility issues.

We recommend regular inspection of the connectors for signs of wear or damage to maintain optimal performance. Cleaning should be performed using appropriate materials to avoid damaging the connector surfaces. Avoid exposure to harsh chemicals or environments that exceed the product’s specified operating conditions.

For service and repairs, please refer to the product warranty terms and conditions. Only authorized service centers should perform repairs to ensure compliance with safety and quality standards. Replacement parts and accessories are available to extend the life of your Push-Pull Connectors.

Detailed technical documentation, including datasheets, user manuals, and installation guides, are available to assist with proper usage and integration. For customized solutions or additional technical information, our engineering team is ready to support your specific requirements.
