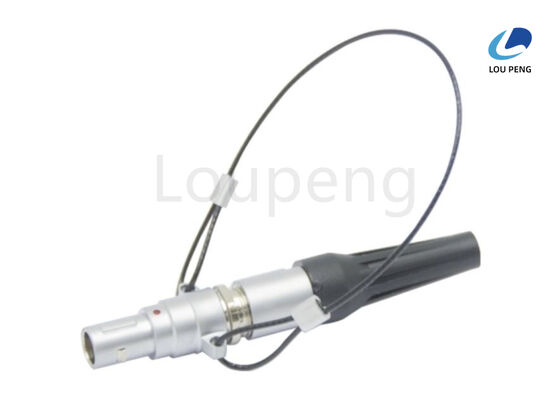

Impact Resistance 100g 6ms Push Pull Circular Connector Featuring PPS Insulation Material Suitable for Industrial Applications

Product Description:

The Push Pull Connector is an advanced and reliable solution designed for a wide range of industrial and electronic applications. Engineered to provide secure and efficient connections, this connector type stands out for its ease of use, durability, and high performance under demanding conditions. Specifically categorized as a Plug / Socket connector, the Push Pull Connector ensures quick and secure mating and unmating, which makes it an ideal choice for systems requiring frequent connection cycles without compromising reliability.

One of the defining features of the Push Pull Connector is its impressive temperature range. It is capable of operating efficiently within a temperature span of –20 °C to +100 °C for types 00 to 1b, and from –20 °C to +80 °C for types 2b to 5b. This broad temperature tolerance allows the Push Pull Signal Connector to be used in environments where thermal fluctuations are common, such as in automotive, aerospace, and industrial machinery applications. The ability to maintain performance without degradation across these temperature ranges ensures system stability and longevity.

Leakage rate is a crucial metric for connectors, particularly in applications where maintaining airtight or vacuum conditions is essential. The Push Pull Connector boasts a leakage rate (He) of less than 10⁻⁷ mbar·l·s⁻¹. This exceptionally low leakage rate guarantees minimal gas or fluid ingress, making the Push Pull Signal Connector suitable for medical, laboratory, and high-precision instrumentation applications where contamination must be avoided at all costs.

Durability and mechanical resilience are key considerations for connectors subjected to harsh operational environments. The Push Pull Connector demonstrates outstanding impact resistance, withstanding forces of up to 100g for 6 milliseconds. This high level of impact resistance means the connector can endure shocks and vibrations without losing its connection integrity, an essential attribute for mobile equipment, military applications, and machinery exposed to mechanical stress.

Another significant advantage of the Push Pull Signal Connector is its excellent disinfection resistance. The materials used in its construction include PSU, PPSU, and PEEK, each offering different levels of disinfection durability. The connector made from PSU can endure up to 20 disinfection cycles, PPSU variants surpass 100 disinfection cycles, and the PEEK models exceed 200 disinfection cycles. This high resistance to disinfection processes makes the Push Pull Connector particularly valuable in medical, pharmaceutical, and food processing industries, where stringent hygiene standards are mandatory.

Overall, the Push Pull Connector offers a combination of high performance, reliability, and versatility. Its plug/socket configuration facilitates effortless connection and disconnection, while the robust design ensures long-term operational stability. The low leakage rate and extensive temperature range make it suitable for sensitive and demanding environments. Additionally, its superior impact resistance and disinfection endurance extend its applicability to sectors requiring rugged and hygienic connectors.

In summary, the Push Pull Signal Connector represents a top-tier solution for applications demanding secure, durable, and hygienic electrical connections. Whether used in industrial automation, medical devices, aerospace systems, or any field where dependable and clean connectivity is paramount, this connector meets and exceeds expectations. Its technical specifications, including the broad temperature ranges, minimal leakage, impressive impact resistance, and exceptional disinfection resistance, solidify its position as a leading choice among push pull connectors available in the market today.

Features:

• Push Pull Circular Connector designed for reliable and secure connections
• Push Pull Electrical Connector with excellent anti-vibration performance (10-2000Hz, 15g)
• Operates in humidity levels up to 95% at 60 ℃
• Wide temperature range for plastic components:
  • -55°C to +150°C (PSU)
  • -55°C to +180°C (PPSU)
  • -55°C to +250°C (PEEK)
• Leakage rate (He) less than 10 ^-7 mbar·L/s ensuring airtight performance
• Salt spray corrosion resistance test exceeding 144 hours for durability
• Push Pull Locking Connector mechanism for quick and secure mating and unmating

Technical Parameters:

Applications:

The LP Push Pull Coupling Connector, model number LP-PU016, is a highly reliable and durable solution designed for various demanding applications. Manufactured in China and certified under ISO-9001:2000, this Push Pull Connector guarantees top-notch quality and performance. With a minimum order quantity of 1000PCS and a competitive price of 0.08 USD per unit, it is an ideal choice for mass production needs. The connectors are carefully packaged in tube or tray formats to ensure safe delivery within 7 to 10 days, supported by flexible payment terms including T/T, Western Union, and L/C. The supply ability of 100,000PCS ensures a steady availability for large-scale projects.

Designed for environments requiring excellent anti-vibration performance, the LP-PU016 Push Pull Cable Connector withstands vibrations ranging from 10 to 2000Hz with a force of up to 15g. This makes it particularly suitable for use in automotive, aerospace, and industrial machinery sectors where vibration resistance is critical. The copper alloy shell material not only provides robust mechanical protection but also delivers exceptional shielding effectiveness, exceeding 80 dB at 1GHz and 95 dB at 10MHz, which is vital for minimizing electromagnetic interference in communication and data transmission applications.

The environmental robustness of this Push Pull Connector is further enhanced by its solvent corrosion resistance, rated average for PSU, good for PPSU, and very good for PEEK materials. This ensures reliable performance in harsh chemical environments such as manufacturing plants, medical equipment, and outdoor installations. The LP-PU016 connector is also tested under environmental conditions of 20/80/21, confirming its resilience against temperature and humidity variations.

Typical application occasions for the LP Push Pull Coupling Connector include high-precision instrumentation, military communication devices, broadcast systems, and automation equipment where secure and quick connect-disconnect functionality is required. The push-pull mechanism facilitates easy and fast mating and unmating without the need for tools, making it ideal for scenarios demanding frequent maintenance or quick replacement.

In summary, the LP-PU016 Push Pull Cable Connector combines advanced materials, superior anti-vibration and shielding capabilities, and proven environmental resistance, making it an excellent choice for a broad range of applications. Whether you are designing complex electronic systems, rugged industrial machinery, or sophisticated communication devices, this connector provides the reliability and performance needed to ensure seamless operation in challenging conditions.

Customization:

Introducing the LP Push Pull Coupling Connector, model number LP-PU016, proudly made in China and certified with ISO-9001:2000. Designed for reliable and efficient connections, this Push Pull Cable Connector offers excellent performance with a minimum order quantity of 1000PCS and a competitive price of $0.08 per unit.

Our Push Pull Quick Release Connector is available with Male Pin or Female Pin contact types, accommodating a temperature range from –20°C to +100°C (00 to 1b) and –20°C to +80°C (2b to 5b). It demonstrates strong solvent corrosion resistance, rated average for PSU, good for PPSU, and very good for PEEK materials.

Packaging options include Tube or Tray, ensuring safe and convenient handling. With a supply ability of 100,000PCS, we guarantee prompt delivery within 7 to 10 days. Payment terms are flexible, accepting T/T, Western Union, and L/C.

Additionally, the LP Push Pull Cable Connector has undergone rigorous environmental testing (20 / 80 / 21) and salt spray corrosion tests exceeding 144 hours, confirming its durability and long-lasting performance in demanding applications.

Choose the LP-PU016 Push Pull Coupling Connector for your connectivity needs, combining quality, reliability, and quick release functionality to enhance your projects.

Support and Services:

Our Push-Pull Connectors are designed to provide reliable and secure connections in demanding environments. For technical support, please ensure you have the product model number and specification details ready to facilitate efficient assistance.

Installation and maintenance guidelines are provided in the product manual to help you achieve optimal performance. It is recommended to follow these instructions closely to avoid damage and ensure longevity of the connector.

If you encounter any issues, our technical support team is available to assist with troubleshooting, product selection advice, and replacement parts. We are committed to providing prompt and effective solutions to minimize downtime.

Additionally, we offer customized services including connector assembly, testing, and certification to meet specific application requirements. Our engineering team can collaborate with you to develop tailored solutions enhancing your system integration.

For warranty claims and service inquiries, please refer to the warranty terms outlined in the product documentation. Proper documentation and proof of purchase may be required to process any service requests.

Packing and Shipping:

Our Push-Pull Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static bags and cushioned with foam inserts to prevent damage from shocks and vibrations. The connectors are then placed in sturdy, corrugated cardboard boxes that are clearly labeled with product information and handling instructions.

For shipping, we partner with reliable carriers to provide timely and secure delivery. Each package is tracked from our warehouse to your doorstep, ensuring transparency and peace of mind. We also offer expedited shipping options for urgent orders. Whether you are ordering a single unit or bulk quantities, we guarantee that your Push-Pull Connectors will arrive safely and on schedule.
