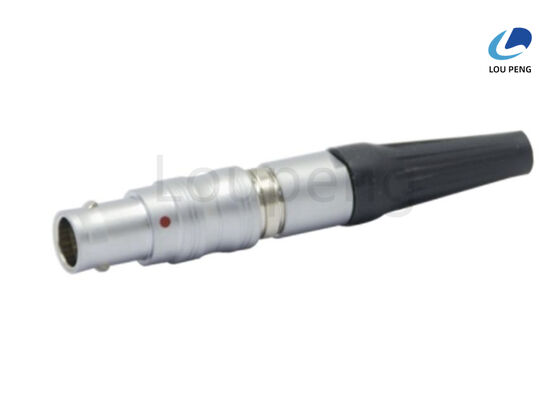

Leakage Rate He less than 10 to the power of minus 7 mbar L s 1 Push Pull Electrical Connector Featuring Impact Resistance 100g 6ms for Industrial

Product Description:

The Push Pull Connector is an advanced and reliable solution designed to meet the demanding requirements of modern electrical and signal transmission applications. This connector is widely recognized for its robust construction, superior performance, and ease of use, making it an ideal choice for industries ranging from aerospace and military to industrial automation and medical equipment. Featuring a push pull locking mechanism, this connector ensures quick, secure, and efficient connections, minimizing downtime and enhancing overall system reliability.

One of the standout features of this Push Pull Electrical Connector is its exceptionally low leakage rate, measured at less than 10 ^-7 mbar·L·s ^-1 (Helium leakage rate). This ultra-low leakage rate guarantees excellent airtight sealing, which is crucial in applications where maintaining an uncontaminated environment or preventing the ingress of dust and moisture is essential. The superior sealing capability of this connector makes it suitable for use in harsh and sensitive environments, ensuring consistent performance under challenging conditions.

The Push Pull Signal Connector is engineered with a durable copper alloy shell material, providing excellent mechanical strength, corrosion resistance, and electromagnetic shielding. The copper alloy shell not only enhances the connector’s durability but also contributes to its lightweight design, facilitating easier handling and installation without compromising robustness. This material choice ensures long-lasting performance, even in environments subjected to vibration, shocks, and extreme temperatures.

Environmental resilience is a critical aspect of the Push Pull Locking Connector. This product has undergone rigorous environmental testing, including exposure to temperatures of 50°C, 175°C, and 21°C, to ensure it can withstand various climatic conditions and operational stresses. Such extensive environmental testing guarantees that the connector maintains reliable electrical performance and mechanical integrity, regardless of the external environment.

Protection against dust and other particulate contaminants is vital for maintaining connector performance, and this Push Pull Connector boasts an IP50 protection grade. This rating indicates that the connector is protected against dust ingress to a degree that prevents any harmful accumulation inside the connector housing, ensuring stable and uninterrupted signal transmission. While not fully waterproof, the IP50 rating makes this connector suitable for many industrial and indoor applications where dust resistance is necessary.

Another key attribute of this connector is its versatile contact type options, available in both male pin and female pin configurations. This flexibility allows for easy integration into varied system designs, supporting a wide range of electrical and signal transmission needs. The reliable contact design ensures excellent conductivity, minimal contact resistance, and secure mating, which collectively contribute to the connector’s superior electrical performance.

The push pull locking mechanism is the hallmark of this connector, providing a quick and secure method to mate and unmate connections without the need for additional tools. This feature not only speeds up assembly and maintenance processes but also reduces the risk of accidental disconnections, enhancing overall system safety and reliability. The tactile feedback during engagement ensures users can confidently secure the connection, which is especially important in critical applications.

In summary, the Push Pull Electrical Connector is a high-performance, durable, and user-friendly solution designed to deliver exceptional sealing, environmental resistance, and electrical reliability. Its copper alloy shell, low helium leakage rate, IP50 protection grade, and flexible contact options make it an excellent choice for demanding applications requiring robust signal and power connections. Whether used as a Push Pull Signal Connector or a Push Pull Locking Connector, this product offers optimal performance, ease of use, and longevity, making it a preferred choice for engineers and designers worldwide.

Features:

• Product Name: Push-Pull Connector
• Operating Temperature Range: –20 °C to +100 °C (00 To 1b), –20 °C to +80 °C (2b To 5b)
• Environmental Experiment: 20 / 80 / 21
• Humidity Resistance: Up to 95% at 60 °C
• Disinfection Resistance: -20 Times (PSU), >100 Times (PPSU), >200 Times (PEEK)
• Leakage Rate (He): < 10 ^-7 mbar·L·s ^-1
• Types Available: Push Pull Circular Connector, Push Pull Metal Connector, Push Pull Electrical Connector

Technical Parameters:

Applications:

The LP Push Pull Connector, model LP-PU014, is a highly reliable and versatile connector designed to meet the demanding needs of various industrial and commercial applications. Manufactured in China and certified under ISO-9001:2000, this connector exemplifies quality and durability. Its robust shielding effect—greater than 80 dB at 1GHz and over 95 dB at 10MHz—ensures excellent signal integrity, making it ideal for sensitive electronic environments where interference must be minimized.

One of the main application occasions for the LP Push Pull Metal Connector is in telecommunications and data transmission systems. Thanks to its superior shielding and secure plug/socket design, it is extensively used in Push Pull Signal Connector roles to maintain stable and high-quality connections for signal cables. This makes it suitable for use in broadcast equipment, medical devices, and aerospace technology, where reliable signal transmission is critical.

The Push Pull Cable Connector’s temperature resilience—ranging from -55°C up to +250°C depending on the material used (PSU, PPSU, or PEEK plastics, and metal)—allows it to perform reliably in harsh environments. This temperature range makes it perfect for applications in automotive electronics, military equipment, and industrial machinery, where connectors must withstand extreme heat and cold without losing functionality.

In terms of supply and logistics, the LP-PU014 connector is available with a minimum order quantity of 1000 pieces, making it suitable for large-scale production runs. The packaging options include tube and tray formats, facilitating easy handling and inventory management. With a competitive price of $0.08 per piece and a delivery time of 7 to 10 days, businesses can efficiently incorporate these connectors into their manufacturing processes without long lead times or high costs.

Additionally, the LP Push Pull Connector supports flexible payment methods such as T/T, Western Union, and L/C, accommodating various customer preferences. Its environmental experiment rating of 20 / 80 / 21 ensures it meets strict standards for humidity and temperature cycling, further attesting to its robustness.

Overall, the LP-PU014 Push Pull Metal Connector is perfectly suited for industries requiring reliable, high-performance connection solutions. Whether deployed as a Push Pull Signal Connector in critical communication equipment or as a Push Pull Cable Connector in rugged industrial settings, this product offers exceptional shielding, temperature tolerance, and mechanical durability, fulfilling the demanding needs of modern electronics and electrical systems.

Customization:

LP brand offers high-quality Push Pull Connector, model number LP-PU014, manufactured in China with ISO-9001:2000 certification. Our Push Pull Cable Connector is designed for reliable performance with a connector type available in both plug and socket configurations. The insulation material used is PPS, ensuring durability and safety.

Our Push Pull Cable Connector features male pin and female pin contact types, providing secure and efficient connections. The leakage rate (He) is less than 10-7 mbar.L.s-1, and the mechanical operation exceeds 5000 cycles, guaranteeing long-lasting operation in demanding environments.

The minimum order quantity is 1000PCS, with a competitive price of 0.08 per unit. Packaging options include tube and tray to meet your specific requirements. We ensure a delivery time of 7 to 10 days, supported by flexible payment terms such as T/T, Western Union, and L/C.

With a supply ability of 100000PCS, LP is your trusted supplier for customized Push Pull Connector solutions, tailored to your project needs and quality standards.

Support and Services:

Our Push-Pull Connectors are designed for reliable and secure connections in a variety of applications. For technical support and services, we provide comprehensive assistance including installation guidance, troubleshooting, and maintenance tips to ensure optimal performance.

If you encounter any issues with your Push-Pull Connector, please refer to the product manual for detailed instructions on proper usage and care. Common troubleshooting steps include checking for proper alignment, ensuring connectors are fully engaged, and inspecting for any physical damage.

We also offer repair and replacement services for connectors that may have been damaged or are not functioning correctly. Our technical team is equipped to diagnose and resolve issues efficiently to minimize downtime.

For custom configurations or special requirements, our engineering support team can assist in tailoring the Push-Pull Connector solutions to meet your specific needs. We strive to provide high-quality support to help you maximize the reliability and longevity of your connectors.

Regular maintenance is recommended to maintain connector performance. This includes keeping the connectors clean, avoiding exposure to harsh environments, and performing routine inspections.

We are committed to providing excellent customer service and technical support to ensure your satisfaction with our Push-Pull Connector products.

Packing and Shipping:

Our Push-Pull Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually placed in anti-static packaging to prevent any damage from electrostatic discharge. The product is then securely fitted within a custom-molded foam insert inside a sturdy cardboard box to minimize movement and impact.

For shipping, we use reliable courier services that offer tracking and insurance options, ensuring your Push-Pull Connector arrives safely and on time. We also provide multiple shipping options to accommodate your delivery speed and budget preferences. International shipments are handled with care, adhering to all customs and regulatory requirements.

Upon receiving your Push-Pull Connector, please inspect the packaging for any signs of damage. If you notice any issues, contact our customer service team immediately for assistance. We are committed to delivering a high-quality product with excellent service.
