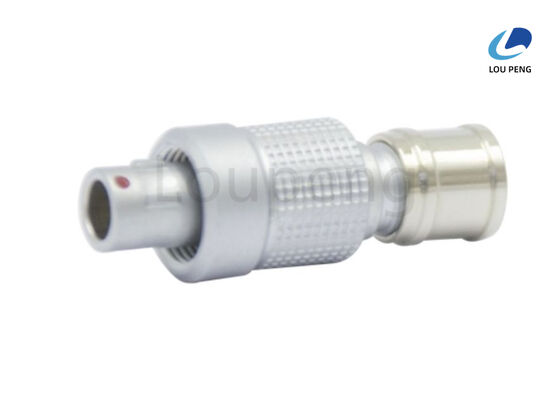

IP50 Protection Grade Push-Pull Connector in Straight or Right Angle Orientation Designed for Humidity Up To 95 Percent at 60 Degrees Celsius

Product Description:

The Push-Pull Connector is a highly reliable and versatile connection solution designed for demanding applications that require secure, quick, and efficient connectivity. This connector is engineered with precision, featuring both Male Pin and Female Pin contact types to accommodate a wide range of electrical and electronic devices. Its robust design ensures consistent performance and durability, making it an ideal choice for various industrial and commercial environments.

One of the standout features of the Push Pull Connector is its exceptional environmental resistance. It has been rigorously tested under stringent environmental experiments, withstanding conditions rated at 50, 175, and 21, which attest to its capability to perform reliably in harsh and challenging surroundings. This environmental resilience ensures that the connector maintains its integrity and function even when exposed to extreme conditions, making it suitable for outdoor and industrial applications.

Leakage rate is a critical factor in connector performance, especially for applications requiring airtight or vacuum conditions. The Push Pull Connector boasts an impressively low leakage rate of less than 10^-7 mbar·L·s^-1 (Helium test), highlighting its excellent sealing properties. This minimal leakage rate ensures that the connector effectively prevents the ingress of dust, moisture, and other contaminants, contributing to its reliability and longevity.

The temperature range of the Push Pull Connector is carefully designed to accommodate various operational environments. For connector types 00 to 1b, it operates efficiently between –20 °C and +100 °C, while for types 2b to 5b, the operational temperature range is from –20 °C to +80 °C. This broad temperature tolerance allows the connector to be used in environments with fluctuating temperatures without compromising performance or safety.

Durability and mechanical operation are critical for connectors that undergo frequent mating and unmating cycles. The Push Pull Connector excels in this domain, offering a mechanical operation lifespan of over 5000 cycles. This ensures that the connector can endure rigorous use over time without degradation in performance, making it a cost-effective and reliable solution for applications requiring repeated connections and disconnections.

Specifically designed as a Push Pull Metal Connector, this product combines the strength and durability of metal housing with the convenience of the push-pull locking mechanism. This design not only enhances mechanical stability but also simplifies the connection process, allowing for quick and secure engagement and disengagement. The metal construction provides excellent shielding against electromagnetic interference, which is crucial for maintaining signal integrity in sensitive electronic environments.

Additionally, the Push Pull Cable Connector variant is tailored to provide seamless cable integration, ensuring that cables are firmly and securely connected to the device. This connector is engineered to support various cable sizes and types, making it highly adaptable to different wiring requirements. Its ergonomic design facilitates easy handling and installation, reducing downtime and improving operational efficiency.

Another significant advantage of this connector is its Push Pull Waterproof Connector capability. The waterproof design ensures that the connector is protected against water ingress, which is essential for outdoor and marine applications where exposure to moisture is inevitable. The high-grade sealing materials and precision manufacturing guarantee that this connector remains watertight, preserving the integrity of the electrical connection even in wet conditions.

In summary, the Push Pull Connector is a comprehensive solution that combines robust mechanical design, environmental resilience, excellent sealing performance, and user-friendly operation. Its Male Pin and Female Pin contact types, low helium leakage rate, wide temperature range, and impressive mechanical operation cycles make it an indispensable component in various fields including industrial automation, medical devices, telecommunications, and more. Whether you require a Push Pull Metal Connector for enhanced durability, a Push Pull Cable Connector for flexible cable management, or a Push Pull Waterproof Connector for harsh environmental protection, this product delivers exceptional performance and reliability that meets the highest industry standards.

Features:

• Push Pull Waterproof Connector with high humidity resistance up to 95% at 60℃
• Durable Push Pull Signal Connector designed for over 5000 mechanical operations
• Excellent Anti Vibration Performance ranging from 10-2000Hz at 15g
• Protection Grade of IP50 ensures reliable performance in challenging environments
• Available in both Straight and Right Angle orientations for versatile applications
• Robust Push Pull Metal Connector construction for enhanced durability and strength

Technical Parameters:

This Push Pull Signal Connector, also known as Push Pull Quick Release Connector or Push Pull Electrical Connector, offers reliable performance across various demanding applications.

Applications:

The LP Push Pull Connector, model number LP-PU017, is a highly reliable and versatile push pull electrical connector designed to meet the demanding requirements of various industrial and commercial applications. Manufactured in China and certified with ISO-9001:2000, this connector ensures quality and durability, making it an excellent choice for sectors that require secure and efficient electrical connections.

One of the primary application occasions for the LP Push Pull Quick Release Connector is in medical equipment. The quick release feature allows for rapid and secure connections and disconnections, which is crucial in medical environments where equipment needs to be frequently changed or serviced without compromising safety. Hospitals and medical device manufacturers often rely on these connectors for diagnostic machines, patient monitoring systems, and surgical instruments.

In the telecommunications industry, the LP-PU017 Push Pull Connector is widely used for connecting cables in networking equipment, fiber optics, and other communication devices. Its robust copper alloy shell material provides excellent corrosion resistance, as evidenced by the salt spray corrosion test of over 144 hours, ensuring long-term reliability even in harsh or humid environments with up to 95% humidity at 60 ℃.

The industrial automation sector benefits greatly from the push pull electrical connector’s secure locking mechanism and ease of use. Machines, sensors, and control panels often require connectors that can withstand environmental stress, such as the environmental experiment ratings of 20 / 80 / 21. The push pull quick release feature allows for fast maintenance and replacement, minimizing downtime in production lines and manufacturing plants.

Additionally, the LP Push Pull Connector is ideal for aerospace and military applications where ruggedness and secure connections are imperative. The connector’s plug/socket design supports efficient power and signal transmission under extreme conditions. Its packaging options, including tubes and trays, facilitate bulk orders with a minimum order quantity of 1000PCS, suitable for large-scale projects.

With a competitive price of $0.08 per piece and a supply ability of 100,000PCS, LP's push pull connectors offer an economical and reliable solution. The delivery time ranges from 7 to 10 days, with flexible payment terms such as T/T, Western Union, and L/C, making it convenient for global customers to source these connectors for various applications.

In summary, the LP-PU017 Push Pull Quick Release Connector is perfectly suited for medical, telecommunications, industrial automation, aerospace, and military scenarios. Its durable copper alloy shell, excellent corrosion resistance, and quick-release capability ensure dependable performance in diverse environmental conditions, making it a trusted choice across multiple industries.

Customization:

LP brand offers high-quality Push Pull Metal Connector, model number LP-PU017, manufactured in China with ISO-9001:2000 certification. Our Push Pull Cable Connector features superior shielding effect of > 80 DB at 1GHz and > 95 DB at 10MHz, ensuring excellent signal integrity. With a minimum order quantity of 1000PCS and a competitive price of $0.08 per unit, this Push Pull Signal Connector is ideal for various applications.

We provide flexible packaging options including tube and tray, and maintain a supply ability of 100,000PCS with a delivery time of 7 to 10 days. Payment terms accepted are T/T, Western Union, and L/C for your convenience. The connector is available in male pin or female pin contact types, using high-quality PPS insulation material for durability.

Designed to withstand harsh environments, the Push Pull Connector supports a wide temperature range depending on the plastic material used: -55°C to +150°C (PSU), -55°C to +180°C (PPSU), and -55°C to +250°C (PEEK). Additionally, it offers excellent anti-vibration performance from 10-2000Hz with 15g resistance, ensuring reliable operation in demanding conditions.

Customize your Push Pull Metal Connector with LP to meet your specific requirements and benefit from our expertise in producing reliable and efficient Push Pull Cable Connectors and Push Pull Signal Connectors.

Support and Services:

Our Push-Pull Connectors are designed for reliable and secure connections in a variety of applications. For technical support, please refer to the product manual for detailed installation instructions, maintenance guidelines, and troubleshooting tips. Ensure that connectors are properly aligned before mating to avoid damage. Regularly inspect connectors for wear or damage and replace any components as necessary to maintain optimal performance. For additional services, we offer customization options, including cable assembly and connector modification to meet specific requirements. Comprehensive testing services are available to verify connector performance under various environmental conditions. Our technical support team is dedicated to providing prompt and effective assistance to ensure your Push-Pull Connector operates flawlessly in your application.

Packing and Shipping:

Our Push-Pull Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static bags and cushioned with foam inserts to prevent any damage from shocks or vibrations. The packaging box is sturdy and labeled with handling instructions to maintain product integrity.

For shipping, we use reliable carriers that offer tracking and insurance options. Orders are processed promptly and shipped within 1-2 business days. Whether shipping domestically or internationally, we ensure that the Push-Pull Connectors arrive safely and on time, ready for immediate use.
