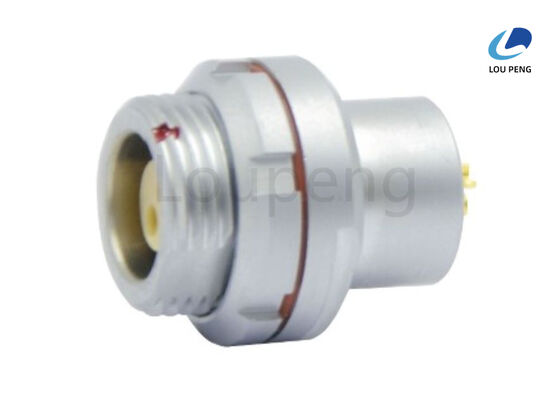

Plug Socket Push Pull Coupling Connector Featuring IP50 Protection Grade Ensuring Safe and Stable Electrical Connections

Product Description:

The Push Pull Signal Connector is an advanced and reliable solution designed for a wide range of industrial and electronic applications. Renowned for its robust construction and exceptional performance, this Push Pull Circular Connector offers unparalleled ease of use combined with high durability, making it the preferred choice for professionals seeking efficient and secure signal connections.

One of the standout features of the Push Pull Signal Connector is its impressive temperature range capability. It operates efficiently within temperatures ranging from –20 °C to +100 °C for models 00 to 1b, and –20 °C to +80 °C for models 2b to 5b. This broad temperature tolerance ensures that the connector performs reliably in various environmental conditions, from cold storage facilities to high-temperature industrial settings, providing consistent signal transmission without degradation.

Durability is a critical aspect of any connector, and the Push Pull Signal Connector excels in this area with its remarkable impact resistance. It can withstand shocks up to 100g for 6 milliseconds, ensuring that sudden impacts or vibrations do not compromise the integrity of the connection. This makes the Push Pull Circular Connector highly suitable for use in environments where mechanical shocks are common, such as automotive, aerospace, and heavy machinery applications.

Corrosion resistance is another key attribute of this connector. The Push Pull Signal Connector has passed rigorous salt spray corrosion tests exceeding 144 hours, demonstrating its ability to resist harsh corrosive environments. This level of corrosion resistance guarantees long-term reliability and longevity, particularly in marine, outdoor, and industrial applications where exposure to moisture and salt is prevalent.

Signal integrity is paramount, and the Push Pull Signal Connector delivers exceptional shielding performance. It provides shielding effectiveness greater than 80 dB at 1 GHz and more than 95 dB at 10 MHz. This high degree of electromagnetic interference (EMI) shielding ensures that signals remain clean and free from external noise and interference, which is critical for maintaining the quality and accuracy of data transmission in sensitive electronic systems.

The insulation material used in the Push Pull Circular Connector is PPS (Polyphenylene Sulfide), a high-performance thermoplastic known for its excellent mechanical strength, thermal stability, and chemical resistance. PPS insulation contributes to the connector's overall robustness and reliability, ensuring safe and stable operation even under demanding conditions.

In summary, the Push Pull Signal Connector combines durability, environmental resilience, and superior signal shielding in a compact and easy-to-use design. Its wide temperature range, high impact resistance, outstanding corrosion protection, and excellent shielding effectiveness make it an ideal choice for applications requiring dependable and secure signal connections. Whether used in industrial automation, instrumentation, telecommunications, or other high-performance fields, this Push Pull Circular Connector stands out as a dependable component engineered to meet the stringent demands of modern technology.

Features:

• Product Name: Push-Pull Connector
• Mechanical Operation: > 5000 Times for reliable and durable use
• Insulation Material: High-quality PPS ensuring excellent insulation
• Shell Material: Durable Copper Alloy for enhanced strength
• Impact Resistance: Withstands 100g 6ms impacts for robust performance
• Anti Vibration Performance: Effective from 10-2000Hz at 15g to maintain stability
• Features Push Pull Coupling Connector design for easy and secure connections
• Push Pull Waterproof Connector capability ensures protection against moisture
• Constructed as a Push Pull Metal Connector for superior durability and conductivity

Technical Parameters:

Applications:

The LP Push Pull Connector, model number LP-PU018, is a versatile and reliable solution designed for various application occasions and scenarios. Manufactured in China and certified with ISO-9001:2000, this connector guarantees top-notch quality and durability. Its robust design and excellent electrical performance make it ideal for demanding environments where secure and quick connections are essential.

One of the primary application occasions for the LP Push Pull Connector is in industrial automation systems. The connector’s outstanding leakage rate of less than 10-7mbar·L.s-1 ensures stable signal transmission with minimal interference, which is crucial for maintaining the integrity of data in automated machinery. Additionally, its impact resistance of 100g 6ms allows it to withstand harsh mechanical shocks, making it suitable for heavy-duty equipment in manufacturing plants.

The Push Pull Metal Connector variant of the LP-PU018 is widely used in aerospace and defense industries. Its excellent temperature resistance, ranging from -55°C to +250°C depending on the plastic material (PSU, PPSU, PEEK), makes it capable of performing reliably under extreme thermal conditions. This feature is vital for avionics and military communication systems that operate across varied and challenging climates.

In the medical field, the Push Pull Signal Connector is frequently utilized due to its compact size and secure locking mechanism, which prevents accidental disconnection during critical procedures. The connector’s environmental experiment ratings (20 / 80 / 21 and 50 / 175 / 21) demonstrate its ability to maintain performance under humidity and temperature cycling, ensuring reliability in medical devices and diagnostic equipment.

Other typical scenarios include telecommunications, where the LP Push Pull Connector supports high-speed data transmission with minimal signal loss, and transportation systems, where robust connectors are needed to endure vibration and temperature fluctuations. The product’s packaging options, available in tube or tray formats, and a minimum order quantity of 1000PCS accommodate large-scale deployments, while the competitive price of $0.08 per piece and a supply ability of 100,000PCS enable cost-effective procurement.

With a delivery time of 7 to 10 days and flexible payment terms including T/T, Western Union, and L/C, the LP-PU018 Push Pull Connector offers a balanced combination of performance, reliability, and convenience. Whether used as a Push Pull Metal Connector or a Push Pull Signal Connector, it is an excellent choice for professionals seeking dependable connections in challenging environments.

Customization:

Our Push Pull Connector product, model number LP-PU018, is manufactured by the trusted brand LP in China. Certified with ISO-9001:2000, this Push Pull Locking Connector guarantees high quality and reliability for various industrial applications.

We offer customization services for both Plug and Socket connector types, with contact options including Male Pin and Female Pin, ensuring compatibility with your specific needs. The Push Pull Quick Release Connector is designed for durability, with mechanical operation exceeding 5000 cycles, providing long-lasting performance.

This connector exhibits excellent solvent corrosion resistance, rated as Average with PSU, Good with PPSU, and Very Good with PEEK materials. It can withstand humidity levels up to 95% at 60 ℃, making it suitable for challenging environmental conditions.

Our minimum order quantity is 1000PCS, and we can supply up to 100,000PCS to meet large-scale demands. The product is priced at $0.08 per piece, with packaging options available in Tube or Tray formats for secure and convenient shipping.

Delivery time is prompt, typically within 7 to 10 days. We accept flexible payment terms including T/T, Western Union, and L/C, facilitating smooth and efficient transactions.

Choose our Push Pull Connector customization services to benefit from a reliable Push Pull Locking Connector and Push Pull Quick Release Connector solution tailored to your requirements.

Support and Services:

Our Push-Pull Connector product is designed for reliable and secure connections in various applications. For technical support, please refer to the product manual for detailed installation and maintenance instructions. Ensure that connectors are properly aligned before mating to avoid damage. Regular inspection and cleaning of contacts will help maintain optimal performance. If you experience any issues with the connector, verify compatibility with your equipment and check for any physical damage.

We offer comprehensive services including product customization, repair, and replacement options. Our technical support team is available to assist with troubleshooting and to provide guidance on integration into your systems. For detailed technical specifications, CAD models, and application notes, please visit our official website or product portal.

Maintaining the Push-Pull Connector according to the recommended guidelines will enhance durability and ensure consistent performance in demanding environments. Always store connectors in a clean, dry place when not in use, and avoid exposure to extreme temperatures or corrosive substances.

For further assistance and detailed service information, please consult the product documentation or reach out through the appropriate support channels provided by your distributor or sales representative.

Packing and Shipping:

Our Push-Pull Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually wrapped in anti-static material to prevent any damage from electrostatic discharge. The wrapped product is then placed in a sturdy, cushioned box designed to absorb shocks and vibrations.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. We offer various shipping methods including standard, expedited, and overnight services to meet your needs. All shipments are thoroughly inspected before dispatch to ensure you receive your Push-Pull Connector in perfect condition.
