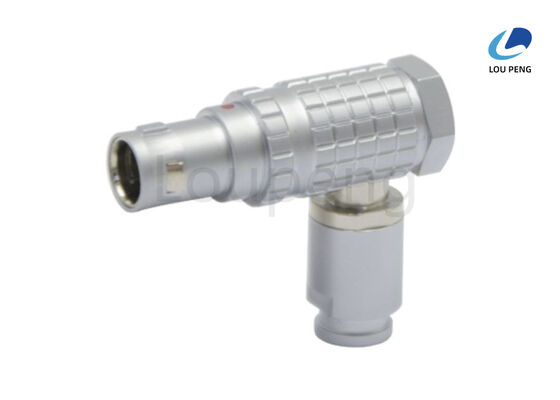

Temperature Range Meta Minus 55 Degrees Celsius to Plus 250 Degrees Celsius Push Pull Connector Offering Performance in Extreme Conditions

Product Description:

The Push Pull Connector is a highly reliable and versatile solution designed for various industrial and electronic applications, offering exceptional performance and durability. This connector type is widely recognized as a Push Pull Cable Connector, Push Pull Circular Connector, and Push Pull Signal Connector, making it an ideal choice for users seeking secure and efficient cable connections with easy mating and unmating capabilities.

One of the standout features of this Push Pull Connector is its impressive impact resistance. Engineered to withstand shocks up to 100g for 6 milliseconds, it ensures stable and uninterrupted signal transmission even in environments subject to sudden vibrations or mechanical impacts. This robustness makes it suitable for use in harsh operational conditions, including industrial automation, medical devices, and military equipment, where reliability is paramount.

The Push Pull Connector is designed for panel mount installation, providing a secure and stable mounting option that simplifies integration into various devices and systems. The panel mount type enhances the overall structural integrity of the connection and allows for easy access and maintenance, which is crucial in complex electronic assemblies where quick connector engagement and disengagement are necessary.

Insulation is a critical factor in connector performance, and this Push Pull Connector excels by utilizing PPS (Polyphenylene Sulfide) as the insulation material. PPS is known for its excellent thermal stability, chemical resistance, and mechanical strength, which contribute to the connector’s long service life and dependable operation. The use of PPS insulation helps maintain signal integrity and prevents electrical failures caused by environmental factors.

The connector is engineered to operate efficiently under a wide range of environmental conditions. It can sustain humidity levels of up to 95% at 60°C, making it suitable for use in humid and potentially corrosive atmospheres without compromising performance. This high humidity tolerance ensures that the connector remains functional and safe in challenging climates, expanding its application scope to outdoor and marine environments.

Temperature tolerance is another critical attribute of the Push Pull Connector. The connector offers an extensive temperature range for its plastic components, accommodating various polymers to meet different operational requirements. Specifically, the temperature range for PSU (Polysulfone) plastic parts is from -55°C to +150°C, for PPSU (Polyphenylsulfone) it spans from -55°C to +180°C, and for PEEK (Polyether Ketone), it extends from -55°C up to a remarkable +250°C. These broad temperature specifications enable the connector to perform reliably in both extremely cold and high-temperature environments, making it suitable for aerospace, automotive, and other high-demand sectors.

As a Push Pull Circular Connector, the design incorporates a circular configuration that enhances ease of connection and disconnection while providing a compact and robust interface. This circular form factor is advantageous for space-constrained applications and supports multiple contact arrangements, facilitating versatile signal transmission and power supply options within a single connector housing.

Additionally, the Push Pull Signal Connector functionality ensures that signal integrity is preserved, minimizing electromagnetic interference and signal loss. This makes it an excellent choice for transmitting sensitive data signals in communication systems, instrumentation, and control devices where clean and reliable signal paths are essential.

In summary, the Push Pull Connector combines exceptional mechanical resilience, advanced insulation materials, and broad environmental tolerances to deliver a high-performance connection solution. Whether you require a Push Pull Cable Connector for rugged industrial use, a Push Pull Circular Connector for compact and reliable interfaces, or a Push Pull Signal Connector for maintaining signal fidelity, this product offers unmatched versatility and durability. Its panel mount design, high impact resistance, humidity tolerance, and wide temperature range make it a dependable choice for demanding applications across numerous industries.

Features:

• Product Name: Push-Pull Connector
• Connector Type: Plug / Socket
• Impact Resistance: 100g 6ms
• Leakage Rate (He): < 10 ^-7 mbar·L/s
• Contact Type: Male Pin / Female Pin
• Humidity Resistance: Up To 95% At 60℃
• Features Push Pull Locking Connector mechanism for secure connections
• Durable Push Pull Circular Connector design suitable for various applications
• Constructed as a robust Push Pull Metal Connector ensuring longevity and reliability

Technical Parameters:

Applications:

The LP Push Pull Circular Connector, model number LP-PU015, is a high-quality push pull electrical connector designed and manufactured in China with ISO-9001:2000 certification. This connector is ideal for various application occasions and scenarios where reliable and secure electrical connections are crucial. Its robust copper alloy shell material ensures excellent durability and corrosion resistance, making it suitable for demanding environments.

This push pull circular connector is widely used in industrial automation, medical devices, telecommunications, and instrumentation due to its ease of use and secure locking mechanism. The push pull design allows for quick and effortless connections and disconnections, which is essential in applications requiring frequent maintenance or component replacement. The connector’s plug/socket type offers versatility in configuring systems for different electrical setups.

The LP-PU015 model boasts a remarkable temperature range, with plastic components made from PSU (-55°C to +150°C), PPSU (-55°C to +180°C), and PEEK (-55°C to +250°C). This wide temperature tolerance makes the push pull circular connector suitable for applications in harsh environments, such as aerospace, automotive, and outdoor equipment, where temperature fluctuations are common. Additionally, the connector exhibits excellent disinfection resistance, with PSU rated for 20 times, PPSU for over 100 times, and PEEK for over 200 times, making it an excellent choice for medical and laboratory equipment that requires frequent sterilization.

With a mechanical operation durability of over 5000 cycles, the LP push pull electrical connector guarantees long-lasting performance and reliability, reducing downtime and maintenance costs in critical systems. The product is supplied in convenient tube or tray packaging, facilitating efficient handling and storage. Customers can order a minimum quantity of 1000 pieces at a competitive price of 0.08 per unit, with a supply capacity of up to 100,000 pieces and a delivery time of 7 to 10 days.

Payment terms are flexible, including T/T, Western Union, and L/C, accommodating various international trade requirements. Overall, the LP Push Pull Circular Connector LP-PU015 is a highly dependable solution for applications demanding secure, durable, and easy-to-use electrical connections across diverse industries and challenging environments.

Customization:

LP brand Push Pull Coupling Connector, model number LP-PU015, is a high-quality product originating from China and certified with ISO-9001:2000. This Push Pull Signal Connector is designed with a copper alloy shell material, ensuring durability and excellent anti-vibration performance ranging from 10-2000Hz at 15g. It offers a low leakage rate (He) of less than 10-7mbar·L·s-1, making it highly reliable for various applications.

The Push Pull Signal Connector supports a wide temperature range from -55°C to +250°C and exhibits solvent corrosion resistance rated as average (PSU), good (PPSU), and very good (PEEK). It is available with packaging options including tube and tray, and the minimum order quantity is 1000PCS, priced competitively at 0.08 per unit.

Our supply ability reaches up to 100,000PCS, ensuring timely delivery within 7 to 10 days. Payment terms include T/T, Western Union, and L/C, providing flexible options for customers. Choose the LP-PU015 Push Pull Coupling Connector for reliable, customizable solutions in your signal connection needs.

Support and Services:

Our Push-Pull Connector product is designed to provide reliable and secure connections in a variety of applications. For technical support, please ensure that you have the product model number and any relevant details about your usage scenario ready.

We offer comprehensive troubleshooting guides and user manuals to help you install, operate, and maintain your Push-Pull Connectors effectively. Common issues such as connection instability, wear and tear, or compatibility concerns are addressed in these resources.

Should you require further assistance, our technical support team is available to provide expert advice on product selection, customization options, and integration into your systems. We also provide repair and replacement services to ensure minimal downtime.

For optimal performance, always follow the recommended installation procedures and environmental conditions outlined in the product documentation. Regular inspection and cleaning of the connectors will help maintain their functionality and extend their service life.

Additionally, we offer training sessions and workshops for users seeking deeper knowledge about Push-Pull Connector technology and best practices.

Your satisfaction and uninterrupted operation are our priorities. Please refer to our support resources for detailed information and assistance.

Packing and Shipping:

Our Push-Pull Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually placed in anti-static bags to prevent damage from electrostatic discharge. The connectors are then securely packed in sturdy, cushioned boxes to avoid any physical impact or abrasion.

For shipping, we use reliable courier services that provide tracking and insurance options. We ensure timely dispatch and delivery, with all packages clearly labeled with handling instructions to maintain product integrity. Whether shipping domestically or internationally, our packaging and shipping processes are designed to guarantee that your Push-Pull Connector arrives safely and in perfect working condition.
