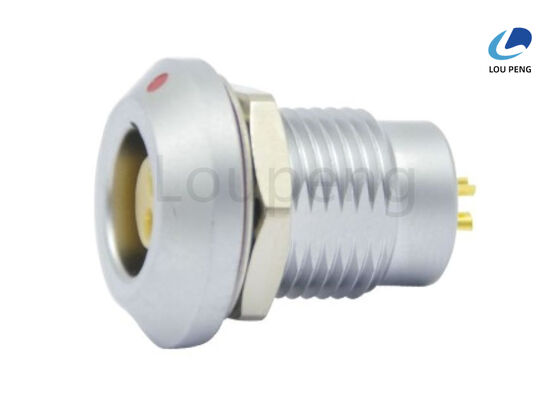

Leakage Rate Less Than 10-7mbar L s-1 Push-Pull Connector With Solvent Corrosion Resistance PPSU And Anti Vibration Performance 10-2000Hz 15g

Product Description:

The Push Pull Connector is an advanced and reliable solution designed for secure and efficient electrical connections in various demanding applications. Engineered with precision, this connector features a panel mount type, allowing easy integration into equipment and systems where stable, robust connections are essential. Its design incorporates both plug and socket connector types, ensuring versatile compatibility and convenience in establishing connections and disconnections without compromising performance.

One of the standout features of the Push Pull Connector is its exceptional temperature tolerance, making it suitable for use in extreme environments. The connector supports a broad operating temperature range from -55°C up to +250°C. This wide temperature range ensures that the Push Pull Coupling Connector can perform reliably even under harsh conditions, such as industrial settings, automotive applications, aerospace, and other high-demand environments where temperature fluctuations are common.

The shell material of the Push Pull Coupling Connector is crafted from a high-quality copper alloy. This material choice offers excellent conductivity, mechanical strength, and corrosion resistance, which are critical factors in maintaining signal integrity and durability over prolonged use. The copper alloy shell not only protects the internal components from environmental stress but also contributes to the overall robustness and longevity of the connector.

In addition to the metal shell, the Push Pull Connector features plastic components made from different advanced polymers, each providing varying degrees of temperature resistance. These plastics include PSU, PPSU, and PEEK, each selected to meet specific application requirements. PSU plastic components maintain stable performance from -55°C to +150°C, making them well-suited for moderately high-temperature environments. PPSU components extend this range from -55°C to +180°C, offering enhanced thermal resistance and mechanical durability. For the most demanding thermal applications, PEEK plastic parts provide exceptional performance, withstanding temperatures as high as +250°C. This variety in plastic materials allows users to select the most appropriate Push Pull Coupling Connector variant tailored to their specific operating conditions.

The Push Pull Connector’s coupling mechanism is designed for ease of use and reliability. The push-pull coupling system enables quick and secure mating and unmating of connectors with a simple push to engage and pull to release motion. This intuitive mechanism minimizes the risk of accidental disconnection, enhances operational efficiency, and reduces the time required for maintenance or reconfiguration. The design also ensures consistent and stable electrical contact, which is crucial for applications requiring uninterrupted signal transmission or power delivery.

Overall, the Push Pull Connector represents a perfect combination of durability, functionality, and adaptability. Its panel mount configuration allows for secure installation on various equipment panels, while the plug and socket options provide flexibility in system design. The use of copper alloy shells combined with high-performance plastics like PSU, PPSU, and PEEK ensures that the connector can withstand extreme temperatures and harsh environmental conditions without degradation.

In summary, whether you are looking for a connector solution for industrial machinery, aerospace technology, medical devices, or high-performance electronics, the Push Pull Coupling Connector offers a reliable, high-quality option. Its robust construction, wide temperature range, and user-friendly push-pull coupling mechanism make it an ideal choice for applications that demand secure, durable, and efficient electrical connections.

Features:

• Product Name: Push-Pull Connector
• Contact Type: Male Pin / Female Pin
• Impact Resistance: 100g 6ms
• Environmental Experiment: 20 / 80 / 21
• Shielding Effect: > 80 dB at 1GHz, > 95 dB at 10MHz
• Orientation: Straight / Right Angle
• Reliable Push Pull Cable Connector for secure connections
• Durable Push Pull Electrical Connector suitable for various applications
• Efficient Push Pull Locking Connector ensuring quick and safe locking mechanism

Technical Parameters:

This Push Pull Signal Connector is designed for reliable and quick connection, featuring a Push Pull Quick Release Connector mechanism. Ideal as a Push Pull Cable Connector, it offers excellent environmental resistance and protection.

Applications:

The LP Push Pull Connector, model number LP-PU019, is a highly reliable and versatile component designed for various industrial and commercial applications. As a Push Pull Cable Connector, it offers secure and quick connections, making it ideal for scenarios where frequent plugging and unplugging are required without compromising signal integrity. Manufactured in China and certified under ISO-9001:2000, this connector guarantees high quality and consistent performance.

One of the primary application occasions for the LP-PU019 Push Pull Coupling Connector is in telecommunications and data transmission systems. Its excellent shielding effect, exceeding 80 dB at 1 GHz and 95 dB at 10 MHz, ensures minimal interference, which is critical in high-frequency signal environments. This makes it perfect for use in network equipment, broadcasting devices, and other communication infrastructures that demand stable and reliable connections.

In industrial automation and control systems, the Push Pull Electrical Connector is widely used due to its robust panel mount design and mechanical operation durability of over 5000 cycles. It can withstand temperature ranges from –20 °C to +100 °C (for 00 to 1b) and –20 °C to +80 °C (for 2b to 5b), making it suitable for harsh environments such as manufacturing plants, robotics, and heavy machinery where temperature fluctuations and mechanical stress are common.

Medical equipment and instrumentation also benefit from the LP-PU019 connector’s secure push-pull coupling mechanism, which ensures safe and quick disconnections without accidental detachment. The connector’s plug/socket type configuration facilitates seamless integration into panel-mounted systems, contributing to compact and efficient device designs.

Additionally, the LP Push Pull Connector’s packaging options, including tube and tray, support bulk ordering with a minimum order quantity of 1000 pieces, making it an economical choice for large-scale projects. Priced competitively at 0.08 USD per unit and backed by a supply ability of 100,000 pieces, it is well-suited for OEM manufacturers and system integrators. Delivery within 7 to 10 days and flexible payment terms such as T/T, Western Union, and L/C add to the convenience of procurement.

In summary, the LP-PU019 Push Pull Cable Connector excels in applications ranging from telecommunications, industrial automation, medical devices, to various electronic systems requiring reliable, quick-connect solutions with excellent shielding and mechanical resilience. Its ISO-certified quality, durable construction, and efficient supply chain support make it a preferred choice for professionals seeking high-performance Push Pull Coupling Connectors and Push Pull Electrical Connectors.

Customization:

Our LP brand Push Pull Cable Connector, model number LP-PU019, is a high-quality Push Pull Metal Connector designed and manufactured in China. Certified with ISO-9001:2000, this Push Pull Electrical Connector ensures reliability and durability for various applications.

We offer customization services with a minimum order quantity of 1000PCS, priced competitively at $0.08 per unit. The connectors are available with a copper alloy shell material, providing excellent strength and corrosion resistance. They come with a protection grade of IP50, suitable for different environmental conditions.

Customers can choose between straight or right angle orientations and mounting types are panel mount for ease of installation. The temperature range for these connectors varies from –20 °C to +100 °C (00 to 1b) and –20 °C to +80 °C (2b to 5b), accommodating diverse operational needs.

Packaging options include tube or tray to ensure safe and organized delivery. With a supply ability of 100,000PCS, we guarantee prompt delivery within 7 to 10 days. Payment terms accepted are T/T, Western Union, and L/C for customer convenience.

Trust our Push Pull Cable Connector, the ultimate Push Pull Metal Connector and Push Pull Electrical Connector, to meet your project requirements with superior quality and efficient service.

Support and Services:

Our Push-Pull Connectors are designed for reliable and secure connections in a variety of industrial and electronic applications. For technical support, please refer to the product datasheet and user manual available on our website. These documents provide detailed information on installation, operation, and maintenance procedures to ensure optimal performance.

If you encounter any issues with the Push-Pull Connector, verify that the connector is properly mated and locked. Check for any signs of damage or wear on the contacts and housing. Ensure that the connector is compatible with your equipment specifications and that environmental conditions meet the product’s operating requirements.

We offer comprehensive repair and replacement services for defective or damaged Push-Pull Connectors. Our service team is equipped to handle warranty claims and provide expert guidance on product upgrades and custom configurations.

For additional technical assistance, troubleshooting tips, and to access software tools related to the Push-Pull Connector, please visit our online support portal. Here you can find FAQs, technical bulletins, and instructional videos to help you get the most out of your connector solution.

We are committed to providing exceptional service and support to ensure your satisfaction with our Push-Pull Connectors. Please consult the product documentation for detailed specifications and handling instructions to maximize the lifespan and reliability of your connectors.

Packing and Shipping:

Our Push-Pull Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in an anti-static bag to prevent damage from electrostatic discharge. The connectors are then securely placed in a custom-designed foam insert within a sturdy cardboard box, providing cushioning and preventing movement.

For bulk orders, multiple units are packed in reinforced cartons with additional padding to safeguard against shocks and vibrations. All packaging materials are environmentally friendly and comply with international shipping standards.

We offer worldwide shipping with reliable carriers, ensuring timely delivery. Each shipment is tracked and insured for your peace of mind. Upon receiving your Push-Pull Connector, please inspect the package for any signs of damage and contact our customer service immediately if any issues are found.
