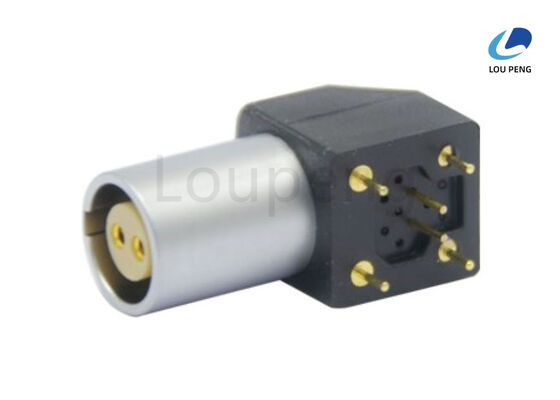

Salt Spray Corrosion Test Exceeding 144h Push Pull Connector Made With Copper Alloy Shell Material And PPS Insulation Material Providing Connections

Product Description:

The Push Pull Connector is an advanced and highly reliable connector designed to meet the demanding requirements of modern electrical and electronic applications. Engineered with precision and durability in mind, this connector offers exceptional performance in various environments, making it an ideal choice for industries such as telecommunications, medical devices, industrial automation, and aerospace. The Push Pull Connector is available in both plug and socket types, providing versatile options for different configurations and ensuring seamless connectivity in complex systems.

One of the standout features of this product is its robust Push Pull Locking mechanism, which guarantees a secure and stable connection. Unlike traditional connectors that rely on screws or clips, the Push Pull Locking Connector allows for quick and effortless mating and unmating by simply pushing the connector into place or pulling it to release. This feature not only saves valuable time during installation and maintenance but also reduces the risk of connection failures due to accidental disconnection. The locking mechanism is designed to withstand repeated cycles without compromising the integrity of the connection, ensuring long-term reliability in critical applications.

In addition to its locking capabilities, this Push Pull Connector is engineered with a high protection grade of IP50. While it offers protection against solid objects larger than 1 millimeter, it is primarily designed for indoor or controlled environments where moisture and dust intrusion are minimal. However, for applications requiring enhanced environmental resistance, the Push Pull Waterproof Connector variant is available. This version provides superior sealing to protect the internal contacts from water ingress, making it suitable for outdoor or harsh conditions where reliability is paramount.

Shielding effectiveness is another critical aspect of the Push Pull Cable Connector. It boasts an outstanding shielding effect of greater than 80 dB at 1 GHz and over 95 dB at 10 MHz, which significantly reduces electromagnetic interference (EMI) and radio-frequency interference (RFI). This high level of shielding ensures signal integrity and minimizes noise, which is essential for sensitive electronic equipment and high-frequency communication systems. The superior shielding performance of the Push Pull Connector helps maintain data accuracy and enhances overall system stability.

The connector’s environmental resilience is demonstrated through rigorous testing, adhering to the 50 / 175 / 21 standard. This means the connector can reliably operate within a temperature range of -50°C to +175°C, with a duration of 21 days under specified test conditions. Such a broad temperature tolerance makes the Push Pull Connector suitable for use in extreme environments, including industrial machinery, automotive systems, and aerospace applications, where temperature fluctuations can be severe.

Designed for easy integration, the Push Pull Connector features a panel mount configuration, enabling secure and stable attachment to control panels, enclosures, or equipment housings. The panel mount type ensures that the connector remains firmly in place during operation, providing a reliable interface point for cables and devices. This mounting style simplifies installation and maintenance while maintaining the overall structural integrity of the system.

In summary, the Push Pull Connector is a versatile, high-performance solution tailored to meet the stringent demands of contemporary connectivity needs. Whether you require the convenience of a Push Pull Locking Connector, the durability of a Push Pull Waterproof Connector, or the reliability of a Push Pull Cable Connector with superior shielding and environmental tolerance, this product delivers on all fronts. Its IP50 protection grade, exceptional EMI shielding, extensive temperature range compliance, and user-friendly panel mount design combine to offer a connector that excels in both functionality and durability. For applications demanding quick, secure connections and robust performance, the Push Pull Connector stands out as a top choice.

Features:

• Product Name: Push-Pull Connector
• Disinfection Resistance: -20 Times (PSU), >100 Times (PPSU), >200 Times (PEEK)
• Temperature Range: –20 °C to +100 °C (00 To 1b), –20 °C to +80 °C (2b To 5b)
• Protection Grade: IP50
• Environmental Experiment: 50 / 175 / 21
• Salt Spray Corrosion Test: >144 hours
• Features Push Pull Circular Connector design for reliable connections
• Equipped with Push Pull Locking Connector mechanism for secure attachment
• Built as a Push Pull Waterproof Connector ensuring protection against moisture

Technical Parameters:

Applications:

The LP Push Pull Connector, model number LP-PU006, is a highly reliable and versatile Push Pull Waterproof Connector designed for a wide range of application occasions and scenarios. Manufactured in China and certified under ISO-9001:2000, this Push Pull Coupling Connector combines durability, precision, and ease of use, making it an ideal choice for industries requiring secure and waterproof connections.

One of the primary application occasions for the LP Push Pull Waterproof Connector is in harsh environmental conditions where temperature resistance is critical. With its insulation materials made of high-performance PPS and plastic temperature ranges spanning from -55°C to +250°C (depending on the specific material such as PSU, PPSU, or PEEK), this connector performs exceptionally well in automotive, aerospace, and industrial machinery environments. Whether exposed to extreme cold or high heat, it maintains a reliable connection and resists deformation or failure.

This Push Pull Coupling Connector is also highly suitable for use in outdoor telecommunications and networking equipment, where waterproof performance is essential to prevent moisture ingress. Its leakage rate of less than 10-7mbar.L.s-1 ensures excellent sealing capability, protecting sensitive electronic components from water, dust, and contaminants. The Push Pull Waterproof Connector’s robust design supports quick and secure mating and demating, which is crucial for maintenance and rapid deployment in field applications.

In medical and laboratory equipment, the LP-PU006 Push Pull Connector provides a dependable solution for connections that must withstand sterilization and repeated use. The environmental experiments rating of 20/80/21 and 50/175/21 confirms its ability to endure rigorous testing conditions, making it suitable for devices requiring stringent hygiene and reliability standards.

For manufacturers and distributors, the LP Push Pull Waterproof Connector offers a competitive edge with a minimum order quantity of 1000PCS, a supply ability of 100,000PCS, and a price point of 0.08 per unit. Packaging options such as tube or tray ensure efficient handling and protection during delivery, which typically takes 7 to 10 days. Flexible payment terms including T/T, Western Union, and L/C further facilitate smooth transactions.

Overall, the LP-PU006 Push Pull Connector is designed to meet diverse industry needs where waterproof, temperature-resistant, and secure connections are paramount. Its combination of advanced materials, environmental resilience, and user-friendly design makes it an excellent choice across sectors such as automotive, aerospace, telecommunications, medical, and industrial automation.

Customization:

Introducing the LP Push Pull Circular Connector, model number LP-PU006, designed and manufactured in China with ISO-9001:2000 certification. This Push Pull Signal Connector offers exceptional performance with a temperature range from -55°C to +250°C, ensuring reliable operation in extreme conditions.

The Push Pull Locking Connector features a robust shielding effect of over 80 dB at 1GHz and more than 95 dB at 10MHz, providing excellent signal integrity. Its anti-vibration performance supports frequencies from 10 to 2000Hz with 15g acceleration, making it ideal for demanding environments.

Available in both plug and socket connector types, this panel mount connector comes packaged in tubes or trays for efficient handling. With a minimum order quantity of 1000PCS and a competitive price of $0.08 per unit, LP ensures a supply ability of up to 100,000PCS.

Delivery time is typically between 7 to 10 days, and payment can be made via T/T, Western Union, or L/C, offering flexible terms to suit your needs. Customize your Push Pull Circular Connector with LP for reliable, high-quality connectivity solutions.

Support and Services:

Our Push-Pull Connectors are designed to provide reliable and secure connections in a variety of demanding applications. For technical support, please refer to the product manual for installation guidelines, maintenance tips, and troubleshooting procedures.

Ensure connectors are properly aligned before mating to prevent damage to the pins and sockets. Regularly inspect connectors for signs of wear or contamination and clean with appropriate solvents if necessary.

If you experience any connectivity issues, verify that the connectors are fully engaged and locked. Check for any bent or damaged contacts and replace components as needed.

For custom configurations or specialized applications, consult our technical datasheets and application notes to select the appropriate Push-Pull Connector model and accessories.

Our support team is available to assist with product specifications, compatibility inquiries, and technical problem-solving to ensure optimal performance of your Push-Pull Connector system.

Packing and Shipping:

Our Push-Pull Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually wrapped in anti-static material and placed in a sturdy, cushioned box to prevent any damage. The packaging is designed to maintain the integrity and functionality of the connector until it reaches the customer.

For shipping, we use reliable courier services that offer tracking and timely delivery. We dispatch orders promptly and provide customers with tracking information to monitor their shipment. International shipping options are also available, with packaging tailored to meet specific regulatory requirements and to withstand longer transit times.
