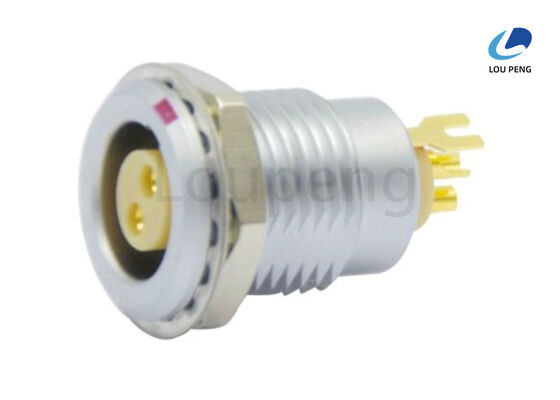

Mechanical Operation Greater Than 5000 Times Push Pull Electrical Connector Copper Alloy Shell Material Ensuring Electrical Connectivity

Product Description:

The Push Pull Connector is a highly reliable and versatile solution designed for demanding applications that require secure and efficient connections. Featuring a panel mount mounting type, this connector ensures easy installation and stable attachment to various equipment and devices. Its robust design makes it ideal for use in environments where durability and performance are critical, including industrial machinery, medical devices, and aerospace systems.

One of the standout features of this Push Pull Circular Connector is its exceptional temperature range capability. It operates reliably within a wide temperature range from –55°C to +250°C, accommodating extreme environmental conditions. More specifically, the temperature range varies depending on the specific connector variant: from –20°C to +100°C for 00 to 1b versions and from –20°C to +80°C for 2b to 5b versions. This flexibility makes the Push Pull Locking Connector suitable for applications that experience harsh thermal fluctuations, ensuring consistent performance without degradation.

The Push Pull Coupling Connector is engineered to provide superior anti-vibration performance, withstanding vibrations from 10 Hz to 2000 Hz at a force of 15g. This capability is crucial for maintaining signal integrity and mechanical stability in environments prone to shocks and vibrations, such as transportation systems, military equipment, and heavy industrial machinery. The connector’s design minimizes the risk of connection failures due to mechanical stress, thereby enhancing system reliability and safety.

Designed as both plug and socket connector types, the Push Pull Connector system offers versatile connectivity options to meet various application needs. The push-pull locking mechanism allows for quick and secure mating and unmating, which simplifies maintenance and reduces downtime. This locking system ensures a firm connection that resists accidental disconnection, while also allowing for fast and easy releases when needed. Such features make this connector an excellent choice for applications where frequent connection cycles are required without compromising reliability.

In addition to its mechanical and environmental robustness, the Push Pull Circular Connector is also known for its compact and ergonomic design. This facilitates integration into tight spaces and complex assemblies without sacrificing performance. The connector’s construction materials and precision engineering contribute to its long service life and resistance to corrosion, further enhancing its suitability for use in challenging conditions.

Overall, the Push Pull Locking Connector represents a high-performance solution for users seeking a dependable and durable connector with outstanding environmental tolerance and vibration resistance. Whether used in panel mount applications or integrated into complex systems requiring both plug and socket configurations, this Push Pull Coupling Connector delivers reliable electrical connections and ease of use. Its blend of advanced features and rugged design makes it an indispensable component in modern electronic and electrical systems, ensuring consistent operation even in the most demanding environments.

Features:

• Product Name: Push-Pull Connector
• Operating Temperature Range: –20 °C to +100 °C (00 to 1b), –20 °C to +80 °C (2b to 5b)
• Plastic Temperature Range: -55°C to +150°C (PSU), -55°C to +180°C (PPSU), -55°C to +250°C (PEEK)
• Shielding Effect: > 80 dB at 1 GHz, > 95 dB at 10 MHz
• Protection Grade: IP50
• Contact Type: Male Pin / Female Pin
• Suitable for applications requiring a reliable Push Pull Cable Connector
• Designed as a durable Push Pull Electrical Connector
• Features easy and secure connection with Push Pull Quick Release Connector mechanism

Technical Parameters:

Applications:

The LP Push-Pull Connector, model number LP-PU005, is a highly reliable and versatile component designed for various demanding applications. Manufactured in China and certified under ISO-9001:2000 standards, this connector guarantees exceptional quality and performance. With a minimum order quantity of 1000PCS and a competitive price of 0.08 per piece, it is an ideal choice for bulk procurement. The product is conveniently packaged in tubes or trays, ensuring safe and organized delivery within 7 to 10 days. Payment terms include T/T, Western Union, and L/C, supporting flexible transaction options. LP’s supply ability of 100,000PCS ensures steady availability for large-scale projects.

The Push Pull Signal Connector is widely used in industries requiring secure and efficient signal transmission. Its push-pull quick release mechanism allows for fast and effortless connection and disconnection, making it suitable for environments where frequent maintenance or equipment changes occur. The waterproof design of the Push Pull Waterproof Connector ensures reliable operation even in harsh outdoor or wet conditions, providing excellent protection against moisture and dust ingress.

Thanks to its outstanding material properties, the LP-PU005 connector exhibits remarkable disinfection resistance, withstanding up to 20 cycles with PSU, over 100 cycles with PPSU, and more than 200 cycles with PEEK. This makes it ideal for medical and laboratory equipment where sterilization is crucial. The connector also passes rigorous salt spray corrosion tests exceeding 144 hours, demonstrating its durability in corrosive environments such as marine or chemical processing industries.

In addition to corrosion resistance, the Push Pull Quick Release Connector boasts impressive impact resistance, enduring shocks of 100g for 6 milliseconds without performance degradation. It operates reliably in extreme humidity conditions of up to 95% at 60°C and within a broad temperature range from -55°C to +250°C, making it suitable for aerospace, automotive, and industrial applications subjected to fluctuating and challenging environmental conditions.

Overall, the LP Push-Pull Connector LP-PU005 is perfectly suited for scenarios requiring quick, secure, and waterproof connections with high durability and environmental resistance. Its applications include medical devices, industrial automation, military equipment, outdoor communication systems, and any other fields where reliable signal connection and fast maintenance are essential. The combination of quality, performance, and cost-effectiveness makes it a preferred solution for engineers and manufacturers worldwide.

Customization:

Our LP brand Push Pull Coupling Connectors (Model Number: LP-PU005) are manufactured in China and certified with ISO-9001:2000, ensuring high quality and reliability. Designed as Push Pull Quick Release Connectors, these Push Pull Connectors feature a durable copper alloy shell material, capable of withstanding temperatures ranging from -55°C to +250°C depending on the plastic used (PSU, PPSU, PEEK).

With a minimum order quantity of 1000PCS and a competitive price of $0.08 per unit, these connectors are ideal for large scale applications. We package the connectors in tubes or trays to ensure safe delivery, with a supply ability of up to 100,000PCS and a delivery time of 7 to 10 days. Payment terms include T/T, Western Union, and L/C for your convenience.

Our Push Pull Connector products are designed to perform reliably in harsh environments, supporting humidity up to 95% at 60°C and passing salt spray corrosion tests exceeding 144 hours. Available in both plug and socket connector types, the LP-PU005 series offers versatility and robust performance for your connectivity needs.

Support and Services:

Our Push-Pull Connectors are designed to provide reliable and secure connections in a variety of applications. For technical support, please ensure that you have the product model number and specifications ready when seeking assistance. Our support team can help with installation guidance, troubleshooting, and maintenance tips to ensure optimal performance.

We recommend regular inspection of the connectors for any signs of wear or damage. Clean the connectors with appropriate tools and avoid exposure to harsh environmental conditions to prolong their lifespan. Replacement parts and accessories are available to maintain the integrity of your connection system.

For service inquiries, our team can assist with repair services, product upgrades, and warranty information. We strive to provide prompt and effective solutions to minimize downtime and maintain your operational efficiency.

Detailed user manuals and technical datasheets are available to help you understand the specifications and proper usage of the Push-Pull Connectors. Please refer to these documents for comprehensive information on installation procedures and safety precautions.

Packing and Shipping:

Our Push-Pull Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually wrapped in anti-static material and securely placed in a custom-designed foam insert to prevent any movement or damage.

The connectors are then boxed in sturdy, corrugated cardboard packaging that meets international shipping standards. For bulk orders, multiple units are packed in larger cartons with additional cushioning to safeguard against impact.

We offer reliable shipping options worldwide, including expedited and standard delivery services. All shipments are tracked and insured to guarantee safe and timely arrival at your destination.

Upon receiving your Push-Pull Connectors, please inspect the packaging for any signs of damage before opening. If any issues are found, contact our customer service immediately for assistance.
