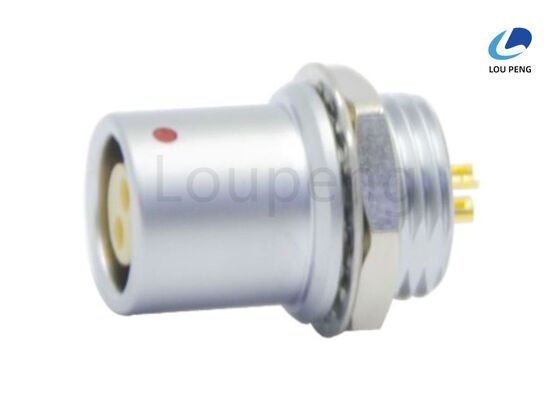

PPS Insulation Material Push Pull Connector Straight Right Angle Shielding Effect Greater Than 80 DB At 1GHz Durable Electrical Connection

Product Description:

The Push Pull Circular Connector is a highly reliable and versatile solution designed to meet the demanding needs of various industrial and electronic applications. This Push Pull Connector is engineered to provide secure and efficient connections, ensuring optimal performance and durability in environments where stability and ease of use are paramount. With its robust design and superior features, the Push Pull Cable Connector stands out as an excellent choice for professionals seeking dependable connectivity solutions.

One of the key attributes of this Push Pull Circular Connector is its connector type, available as both plug and socket options. This dual availability allows for flexible integration into different systems, accommodating various connection requirements. Whether you need to establish a connection from a device to a cable or between two pieces of equipment, the plug and socket configuration ensures seamless compatibility and ease of installation.

Protection and durability are critical factors in connector performance, and this Push Pull Connector excels with an IP50 protection grade. While it offers solid protection against dust ingress, it maintains excellent functionality in environments where contamination control is vital but exposure to liquids is minimal. This makes the Push Pull Cable Connector suitable for indoor applications or controlled environments where dust prevention is necessary to maintain connection integrity.

The mounting type of this connector is panel mount, which provides a secure and stable attachment to panels or equipment housings. Panel mounting facilitates easy installation and maintenance, allowing users to integrate the connector into fixed positions with confidence that the connection will remain stable even under mechanical stress or vibration. This mounting approach is widely appreciated in applications such as control panels, instrumentation, and communication devices.

Contact type is a crucial consideration for electrical connectors, and this Push Pull Circular Connector offers both male pin and female pin contact options. These contact types ensure reliable electrical conductivity and secure mating between connectors. The male pin contacts are designed to fit precisely into female pin counterparts, creating a solid and consistent electrical connection that minimizes signal loss and enhances overall system performance. This versatility in contact types also allows users to customize their setups according to specific wiring and design needs.

Another notable feature of this Push Pull Connector is the orientation options available: straight and right angle. The straight orientation is ideal for applications where space is ample and a direct connection is preferred, providing a straightforward path for cables. On the other hand, the right angle orientation is perfect for tight spaces or configurations that require cable routing in a perpendicular direction to the panel or device. This flexibility in orientation helps optimize space usage and cable management, making the Push Pull Cable Connector adaptable to a wide range of installation scenarios.

Overall, the Push Pull Circular Connector combines robust construction, ease of use, and versatile design to deliver a high-performance connectivity solution. Its combination of plug/socket connector types, IP50 protection grade, panel mount installation, male/female pin contacts, and straight/right angle orientations makes it suitable for a broad spectrum of applications, from industrial machinery to communication equipment and beyond. The secure push-pull locking mechanism ensures quick and reliable mating and unmating, reducing downtime and enhancing operational efficiency.

In summary, if you are searching for a dependable Push Pull Connector that offers flexibility, durability, and ease of installation, this Push Pull Circular Connector is an excellent choice. It provides secure electrical connections with versatile configurations that cater to your specific application needs, making it a vital component in modern electrical and electronic systems. Whether you need a plug or socket, straight or right angle, male or female pin, this Push Pull Cable Connector is engineered to deliver outstanding performance and reliability.

Features:

• Product Name: Push-Pull Connector
• Orientation: Straight / Right Angle options available
• Connector Type: Plug / Socket
• Mounting Type: Panel Mount
• Disinfection Resistance: -20 Times (PSU), >100 Times (PPSU), >200 Times (PEEK)
• Shell Material: Copper Alloy
• Features a reliable Push Pull Waterproof Connector design
• Durable Push Pull Cable Connector suitable for various applications
• High-quality Push Pull Metal Connector ensuring robust performance

Technical Parameters:

Applications:

The LP Push Pull Connector, model number LP-PU004, is a highly reliable and versatile Push Pull Signal Connector designed and manufactured in China. With ISO-9001:2000 certification, this connector ensures top-quality standards, making it an ideal choice for various industry applications. The LP Push Pull Locking Connector is engineered to provide secure connections with a leakage rate of less than 10-7 mbar·L·s-1, guaranteeing airtight and stable performance in demanding environments.

Thanks to its excellent shielding effect, exceeding 80 dB at 1 GHz and more than 95 dB at 10 MHz, the LP Push Pull Signal Connector is perfect for applications requiring robust electromagnetic interference (EMI) protection. This makes it suitable for use in communication equipment, medical devices, aerospace systems, and industrial machinery where signal integrity is critical.

The connector is available in both plug and socket types, offering flexibility for integration into various systems. Its solvent corrosion resistance varies by material: average resistance with PSU, good resistance with PPSU, and very good resistance with PEEK, making it adaptable to different chemical environments. Moreover, the disinfection resistance capability is impressive, with PSU rated for 20 cycles, PPSU for more than 100 cycles, and PEEK for over 200 cycles, making this connector highly suitable for medical and laboratory equipment that require frequent sterilization.

Packaged conveniently in tubes or trays, the LP Push Pull Locking Connector supports a minimum order quantity of 1000 pieces at a competitive price of $0.08 per piece. The supply ability is strong with up to 100,000 pieces available, and delivery time ranges from 7 to 10 days. Payment terms are flexible, including T/T, Western Union, and L/C, facilitating smooth transactions for global customers.

Typical application occasions and scenarios for the LP-PU004 Push Pull Signal Connector include use in high-frequency communication systems, precision instrumentation, medical diagnostic equipment, and industrial automation where secure, quick connection and disconnection are vital. Its robust design and high shielding make it suitable for outdoor and harsh environments, while its excellent disinfection resistance ensures reliability in sterile settings such as hospitals and laboratories. Overall, the LP Push Pull Connector is an excellent solution for industries seeking durable, high-performance connectors with outstanding shielding and corrosion resistance capabilities.

Customization:

Introducing the LP brand Push Pull Waterproof Connector, model number LP-PU004, proudly made in China and certified with ISO-9001:2000. This Push Pull Electrical Connector is designed to meet high standards with a minimum order quantity of 1000PCS and a competitive price of $0.08 per unit. Packaging options include Tube and Tray, ensuring safe and convenient delivery within 7 to 10 days.

Our Push Pull Coupling Connector offers excellent disinfection resistance, withstanding up to -20 times for PSU, over 100 times for PPSU, and more than 200 times for PEEK materials. It is available in both Straight and Right Angle orientations to suit diverse application needs. The connector has passed rigorous salt spray corrosion tests exceeding 144 hours, guaranteeing long-lasting durability in harsh environments.

Designed for extreme conditions, the temperature range for the plastic materials spans from -55°C to +150°C for PSU, -55°C to +180°C for PPSU, and -55°C to +250°C for PEEK. Additionally, the connector boasts superior anti-vibration performance, handling frequencies from 10 to 2000Hz with 15g acceleration, making it ideal for demanding industrial applications.

With a robust supply ability of 100,000PCS, we accept payments through T/T, Western Union, and L/C, ensuring a smooth and flexible purchasing process. Choose the LP-PU001 Push Pull Waterproof Connector for reliable, high-performance Push Pull Electrical Connector solutions tailored to your customization needs.

Support and Services:

For technical support regarding the Push-Pull Connector product, please refer to the detailed product documentation and user manuals provided with the product. Our support team is available to assist with installation guidance, troubleshooting, maintenance tips, and compatibility inquiries. We recommend ensuring that the connectors are handled with care during installation to maintain optimal performance and longevity. For best results, use only recommended accessories and replacement parts. Should you encounter any issues or require further assistance, please consult the troubleshooting section of the manual or visit our online support portal for FAQs and additional resources.

Packing and Shipping:

Our Push-Pull Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually wrapped in anti-static material and securely placed in a custom-designed foam insert to prevent any movement or damage.

The connectors are then packed into sturdy, corrugated cardboard boxes that provide excellent durability and cushioning. For larger orders, multiple boxes are consolidated into a reinforced outer carton to facilitate safe handling and shipping.

We offer a variety of shipping options to meet your needs, including standard ground shipping, expedited air freight, and international delivery. All shipments are tracked and insured to guarantee timely and secure arrival.

Before dispatch, every Push-Pull Connector undergoes a thorough quality inspection to ensure it meets our high standards, giving you confidence in the product you receive.
