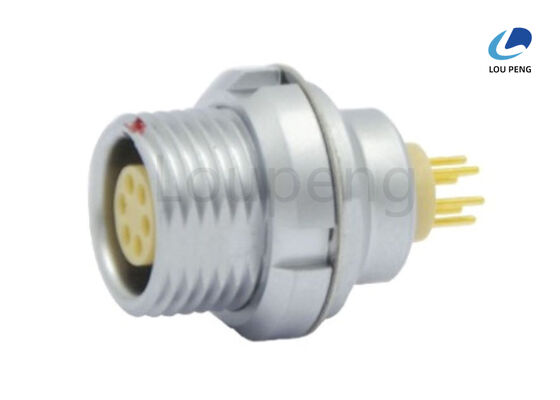

Temperature Range Meta -55°C to 250°C Push-Pull Connector Male Pin Female Pin Providing Secure and Electrical Connections

Product Description:

The Push Pull Electrical Connector is a highly reliable and durable solution designed to meet the demanding requirements of modern electronic and electrical applications. Engineered with precision, this connector offers exceptional performance in environments where vibration, impact, and environmental factors pose significant challenges. Whether used in industrial machinery, medical devices, or communication systems, the Push Pull Electrical Connector ensures secure and stable connections that are essential for uninterrupted signal transmission and power delivery.

One of the standout features of this Push Pull Electrical Connector is its superior anti-vibration performance. It is rigorously tested to withstand vibration frequencies ranging from 10 to 2000Hz with an acceleration force of up to 15g. This capability makes it ideal for use in applications subject to continuous or intermittent vibrations, such as automotive systems, aerospace electronics, and heavy equipment. The connector’s robust design effectively minimizes signal loss and connection instability caused by mechanical oscillations, thereby enhancing the overall reliability of the connected system.

Environmental resilience is another critical attribute of the Push Pull Signal Connector. It complies with stringent environmental testing standards, specifically the 20 / 80 / 21 test conditions, which simulate exposure to varying temperature and humidity levels. This ensures that the connector maintains optimal functionality in harsh conditions, including extreme heat, moisture, and corrosive atmospheres. Such environmental durability makes it suitable for outdoor installations, military applications, and other scenarios where exposure to adverse elements is unavoidable.

Impact resistance is a vital consideration for connectors used in rugged environments, and the Push Pull Electrical Connector excels in this regard. It can endure impact forces of up to 100g for 6 milliseconds without compromising its structural integrity or electrical performance. This high level of impact resistance protects the internal contacts and housing from damage due to sudden shocks or drops, making it a dependable choice for portable devices, field equipment, and other applications prone to mechanical stress.

The mounting type of this connector is panel mount, which facilitates easy and secure installation on equipment surfaces. Panel mounting provides a stable and permanent fixing method, reducing the risk of connector loosening or disconnection during operation. This feature also streamlines maintenance and replacement procedures, as connectors can be quickly accessed and serviced without dismantling the entire assembly.

The Push Pull Electrical Connector is available in plug and socket configurations, allowing for versatile connectivity options to suit various system designs. The plug connector is designed for insertion into the corresponding socket, creating a reliable and quick-release connection mechanism. This push-pull locking system ensures that the connector remains firmly mated under operational stresses but can be disengaged effortlessly when required. This functionality is particularly advantageous in environments where frequent connection and disconnection are necessary, such as in test equipment, modular systems, and medical instrumentation.

In summary, the Push Pull Signal Connector is an advanced connector solution that combines excellent anti-vibration performance, environmental endurance, and impact resistance with practical mounting and connection features. Its panel mount design, along with plug and socket options, provides flexibility and ease of use, making it an ideal choice for a wide range of applications requiring reliable and secure electrical connections. By choosing this Push Pull Electrical Connector, users benefit from enhanced system robustness, reduced downtime, and improved overall performance, ensuring that critical signals and power are transmitted without interruption even in the most challenging conditions.

Features:

• Push Pull Electrical Connector with reliable push-pull locking mechanism
• Available as Push Pull Metal Connector for enhanced durability
• Solvent Corrosion Resistance: Average (PSU), Good (PPSU), Very Good (PEEK)
• Salt Spray Corrosion Test resistance greater than 144 hours
• Low Leakage Rate (He): less than 10 ^-7 mbar·L·s ^-1
• High Impact Resistance: withstands 100g impact for 6 milliseconds
• Mechanical Operation durability exceeding 5000 cycles
• Designed for secure and efficient connections in various applications

Technical Parameters:

Applications:

The LP Push Pull Quick Release Connector, model LP-PU002, is a highly reliable and versatile Push Pull Circular Connector designed for a wide range of application occasions and scenarios. Manufactured in China and certified under ISO-9001:2000, this Push Pull Metal Connector offers exceptional performance and durability, making it an ideal choice for industries requiring secure, quick, and efficient connections.

One of the primary application occasions for the LP-PU002 Push Pull Connector is in industrial automation and machinery. Its robust design, featuring panel mount installation and mechanical operation endurance exceeding 5000 cycles, ensures long-term reliability in harsh environments. The connector’s excellent anti-vibration performance, tested at 10-2000Hz with 15g force, makes it suitable for heavy-duty equipment subject to constant mechanical stress and vibrations.

In the medical and healthcare sector, the LP Push Pull Quick Release Connector stands out due to its impressive disinfection resistance. Depending on the material—PSU, PPSU, or PEEK—the connector can withstand from 20 to over 200 disinfection cycles, ensuring safety and hygiene compliance. This makes it perfect for medical devices, diagnostic equipment, and other healthcare applications where sterility and quick assembly/disassembly are crucial.

Another key scenario for this Push Pull Circular Connector is in aerospace and defense applications. The connector’s environmental experiment certification at 20 / 80 / 21 indicates its capability to perform reliably under extreme temperature and humidity conditions. Combined with its metal construction, the LP-PU002 is well-suited for aerospace systems, military communication devices, and rugged outdoor instrumentation that require secure and rapid connection solutions.

The LP brand’s commitment to quality and efficiency is also reflected in its supply chain capabilities. With a minimum order quantity of 1000PCS and a supply ability of up to 100,000PCS, the LP-PU002 Push Pull Metal Connector can be delivered within 7 to 10 days. The product is conveniently packaged in tubes or trays to ensure safe transport and ease of handling. Flexible payment terms such as T/T, Western Union, and L/C facilitate smooth transactions worldwide.

In summary, the LP Push Pull Quick Release Connector LP-PU002 is designed to meet the demanding needs of various industries including industrial automation, medical, aerospace, and defense. Its superior mechanical and environmental performance, combined with efficient supply and competitive pricing at $0.08 per unit, make it an outstanding choice for applications requiring a reliable, fast, and secure connection solution.

Customization:

Our LP Push Pull Connector (Model Number: LP-PU002) offers reliable and durable performance, designed and manufactured in China with ISO-9001:2000 certification to ensure the highest quality standards. This Push Pull Electrical Connector is made from premium copper alloy shell material, providing excellent protection with an IP50 rating and outstanding resistance to corrosion, verified by a salt spray corrosion test of over 144 hours.

With a mechanical operation life exceeding 5000 cycles and a wide temperature range from -55°C to +250°C, this Push Pull Electrical Connector is ideal for demanding industrial applications. We offer flexible product customization services including packaging options such as tube or tray to suit your logistics needs.

The minimum order quantity for customization is 1000PCS, with a competitive price of $0.08 per piece. Our supply ability can meet large volume demands up to 100,000PCS with a delivery time of 7 to 10 days. Payment terms include T/T, Western Union, and L/C, ensuring convenience and security for all transactions.

Choose the LP Push Pull Connector for your next project to benefit from high-quality craftsmanship, reliable performance, and excellent customization services tailored to your specific requirements.

Support and Services:

Our Push-Pull Connector product is designed for reliable and secure connections in various industrial and electronic applications. For technical support, please refer to the detailed product datasheets and installation guides available on our website. These documents provide comprehensive information on specifications, wiring instructions, and maintenance tips to ensure optimal performance.

If you encounter any issues during installation or operation, first verify that the connector is compatible with your system and that all connections are properly secured. Regular inspection and cleaning of the connectors can prevent common problems such as signal loss or mechanical wear.

For advanced troubleshooting, consult the troubleshooting section in the product manual, which covers common faults and recommended corrective actions. Additionally, our online knowledge base offers FAQs, video tutorials, and software tools to assist with configuration and diagnostics.

We also provide professional services including custom configuration, repair, and replacement options to minimize downtime and maintain system integrity. Our technical team is committed to supporting you throughout the product lifecycle to ensure maximum satisfaction and performance.

Packing and Shipping:

Our Push-Pull Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static bags to prevent any damage from electrostatic discharge. The connectors are then securely placed in custom-designed foam inserts within sturdy cardboard boxes to minimize movement and impact.

For shipping, we use reliable carriers that provide tracking and insurance options to guarantee safe and timely delivery. Bulk orders are packed in reinforced cartons with additional cushioning materials to protect against rough handling. We also offer expedited shipping services upon request to meet urgent project deadlines.

All shipments include detailed packing lists and product documentation to facilitate easy inspection and installation upon arrival. Our commitment to quality packaging and shipping ensures that your Push-Pull Connectors arrive in perfect condition, ready for immediate use.
