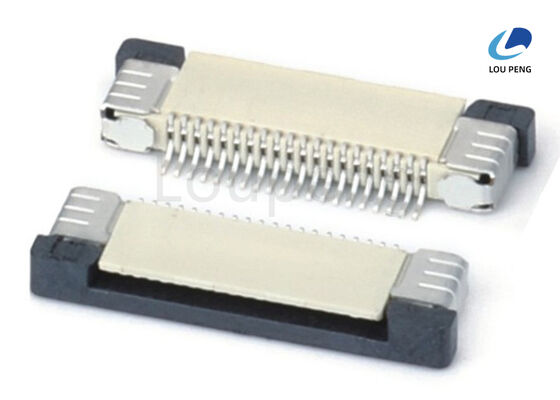

0.5mm Pitch Flexible Printed Circuit Connector Durable Up To 20 Cycles Connection Solutions for Electronic Assemblies and Devices

Product Description:

The FPC / FFC Connector is a highly reliable and versatile solution designed for various electronic applications, providing efficient and secure connections between flexible printed circuits (FPC) and flexible flat cables (FFC). Known for its superior performance and robust construction, this connector is ideal for use in compact and high-density electronic devices where space-saving and dependable connectivity are critical.

One of the standout features of this connector is its current rating of 0.5 Amps, ensuring stable electrical performance for low-power applications. This rating makes it suitable for a wide range of consumer electronics, automotive systems, medical devices, and industrial equipment that require consistent and safe electrical connections without the risk of overheating or power loss.

Available in two classic color options, Gray and Black, the FPC / FFC Connector offers aesthetic flexibility to match different design requirements and product styles. These color choices not only contribute to the visual appeal but also make it easier to identify and organize connections during assembly and maintenance processes.

The locking mechanism of the connector is one of its most critical components, featuring both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) options. The ZIF design allows for effortless insertion and removal of the FPC or FFC without exerting excessive force, reducing the risk of damage to the delicate flexible circuits. On the other hand, the LIF variant provides a secure lock with minimal insertion force, balancing ease of use with reliable mechanical retention. These locking mechanisms ensure that the connection remains stable even under vibrations or mechanical stress, enhancing the overall durability of the device.

Durability is another key attribute of the FPC / FFC Connector, with an impressive rating of up to 20,000 mating cycles. This high cycle count guarantees long-lasting performance, making the connector suitable for applications that require frequent assembly and disassembly, such as testing environments, modular devices, or systems that undergo regular maintenance. The robust construction ensures that the connector maintains its mechanical and electrical integrity over extended periods of use.

The locker's material is crafted from PPS (Polyphenylene Sulfide), which complies with UL94V-0 standards for flame retardancy and meets RoHS environmental compliance requirements. This material choice not only provides excellent mechanical strength and thermal stability but also ensures safety and environmental responsibility in manufacturing and usage. The PPS UL94V-0 rated material contributes to the connector’s ability to withstand harsh operating conditions and maintain performance in demanding environments.

As a versatile component, the FPC / FFC Connector is commonly used as an FPC Board to Board Connector, facilitating direct connections between two flexible printed circuit boards without the need for additional cabling. This capability simplifies circuit design and reduces assembly complexity, leading to more compact and lightweight electronic products.

Additionally, it serves as an FFC Cable Assembly Connector, enabling secure and reliable connections between flexible flat cables and other electronic components. This function is essential in applications where flexible wiring solutions are necessary to accommodate tight spaces or to allow movement without compromising connectivity.

Moreover, the connector is widely recognized as an FFC Flexible Circuit Connector, specifically engineered to support flexible circuit technologies. Its design ensures excellent electrical contact and mechanical stability, vital for flexible circuits that undergo bending and flexing during operation.

In summary, the FPC / FFC Connector offers a comprehensive solution for flexible circuit interconnections, combining a modest current rating of 0.5 Amps, durable construction capable of withstanding up to 20,000 mating cycles, and a choice between ZIF and LIF locking mechanisms. Its PPS UL94V-0 RoHS-compliant locker material enhances safety and environmental standards, while the availability in Gray and Black colors provides aesthetic and organizational flexibility. Whether used as an FPC Board to Board Connector, FFC Cable Assembly Connector, or FFC Flexible Circuit Connector, this product ensures reliable and efficient electrical connections in a wide array of modern electronic applications.

Features:

• Product Name: FPC / FFC Connector
• Connector Types: FPC Electronic Connector Type, FPC Board to Board Connector, FFC Flexible Flat Cable Connector
• Plating Options: Gold Plating or Tin Plated for reliable conductivity and corrosion resistance
• Locking Mechanism: Available in ZIF (Zero Insertion Force) and LIF (Low Insertion Force) types for easy and secure cable connection
• Insulator Resistance: Minimum 500 Megohms ensuring excellent electrical insulation
• Insulation Material: Made from high-quality LCP (Liquid Crystal Polymer) or Nylon 6T UL94V-0, compliant with RoHS standards
• Sample Availability: Free samples available for testing and evaluation

Technical Parameters:

Applications:

The LP-FPC026, a high-quality Flexible Flat Cable Interface connector, is an essential component in modern electronic assemblies. Manufactured in China by the reputable LP brand and certified under ISO-9001:2000 standards, this FFC Flexible Circuit Connector ensures reliable performance and durability across various applications. Its design caters to both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) connector types, providing flexibility and ease of use in diverse electronic environments.

This FFC Flexible Circuit Connector is widely applied in scenarios where space-saving, lightweight, and flexible connections are crucial. Commonly used in consumer electronics such as laptops, smartphones, tablets, and wearable devices, the LP-FPC026 enables efficient and compact internal wiring. It also finds significant use in automotive electronics for dashboard displays, infotainment systems, and instrument clusters, where its high insulator resistance of 500 Megohms minimum ensures stable signal transmission under harsh conditions.

Industrial equipment benefits from the LP-FPC026’s robust construction, featuring a PPS UL94V-0 RoHS-compliant loeker material and gold or tin plating options that provide excellent corrosion resistance and electrical conductivity. The phosphor bronze solder tab enhances solderability, making this connector ideal for automated assembly lines and mass production. With a minimum order quantity of 1000PCS and a competitive price of 0.03 USD per unit, it suits manufacturers requiring large volumes without compromising quality.

Packaging options include reels and tubes, facilitating easy handling and integration into manufacturing processes. The supply ability of 100,000PCS and a delivery time of 8 to 12 days support timely project completions. Payment terms such as T/T, Western Union, and L/C offer flexible financing options to accommodate various business needs.

In summary, the LP-FPC026 FFC Flexible Circuit Connector is ideal for applications demanding reliable, compact, and flexible cable connections. Its certification, material quality, and design features make it suitable for electronics, automotive, industrial machinery, and other sectors where efficient Flexible Flat Cable Interface solutions are necessary.

Customization:

Introducing the LP-FPC026, a high-quality FPC Board to Board Connector designed and manufactured by LP in China. This Flat Flexible Cable Connector is certified with ISO-9001:2000, ensuring reliable performance and quality assurance.

Our Flexible Flat Cable Interface supports a wide range of specifications with 2 to 50 pins, accommodating various design requirements. The connector offers multiple pitch options including 0.5mm, 1.0mm, 1.25mm, and 1.27mm, making it versatile for different applications.

The LP-FPC026 features both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) connector types, with a current rating of 0.5 Amps and a maximum contact resistance of 20 milliohms, ensuring stable electrical connections.

We provide flexible product customization services with a minimum order quantity of 1000PCS, priced competitively at $0.03 per piece. Packaging options include reels and tubes to suit your logistics needs.

With a supply ability of 100,000PCS and a delivery time of 8 to 12 days, we ensure timely fulfillment of your orders. Payment terms accepted are T/T, Western Union, and L/C, providing convenience and security for your transactions.

Choose LP-FPC026 for your FPC Board to Board Connector and Flat Flexible Cable Connector needs, and benefit from customizable, reliable Flexible Flat Cable Interfaces tailored to your specifications.
