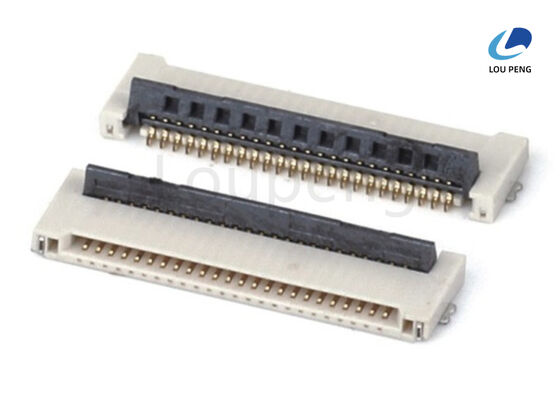

Phosphor Bronze Solder Tab FPC FFC Connector 2 To 50 Pins Flexible Printed Circuit Cable Connector Electrical Connection

Product Description:

The FPC / FFC Connector is an essential component designed to provide reliable and efficient connections in various electronic applications. This connector is specifically engineered for use with FFC Flexible Circuit Connectors, FPC Board to Board Connectors, and FFC Cable Assembly Connectors, delivering excellent performance and durability in compact and high-density electronic devices.

One of the standout features of this FPC / FFC Connector is its robust dielectric withstanding capability. It can withstand an AC voltage of up to 500V, ensuring high insulation resistance and safety during operation. This characteristic makes it suitable for applications where electrical isolation and prevention of short circuits are critical, enhancing the overall reliability of the electronic system.

The connector incorporates advanced locking mechanisms, available in both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) types. The ZIF locking mechanism allows the flexible flat cable or flexible printed circuit to be inserted without applying significant force, reducing the risk of damage to delicate cable contacts and improving assembly efficiency. Meanwhile, the LIF mechanism provides a slightly higher insertion force for applications where a more secure connection is necessary, offering versatility to meet different design requirements.

Thermal resistance is another important attribute of this connector. It can withstand maximum processing temperatures of up to 230°C for durations between 30 to 60 seconds, and even withstands short exposures to 260°C for up to 10 seconds. This thermal tolerance makes it compatible with common soldering and reflow processes used in modern electronic manufacturing, ensuring the connector maintains its integrity and performance during assembly.

The electrical current rating of the FPC / FFC Connector is rated at 0.5 Amps, which is ideal for low-power applications typically found in consumer electronics, communication devices, and industrial equipment. This rating ensures that the connector can handle standard signal and power transmission needs without overheating or performance degradation.

Additionally, the product offers the convenience of free samples, allowing designers and engineers to test and evaluate the connector in their specific applications before committing to large-scale production. This sample availability helps reduce development time and ensures compatibility with the intended FFC Flexible Circuit Connector or FPC Board to Board Connector systems.

Designed with precision and reliability in mind, this connector supports seamless integration with FFC cable assemblies, enabling flexible and compact wiring solutions in constrained spaces. Its compatibility with FFC Cable Assembly Connectors ensures that it can be used in diverse configurations, providing flexibility in design and application.

Overall, the FPC / FFC Connector is a high-quality, versatile solution for establishing secure and efficient electrical connections in modern electronic devices. It combines strong dielectric resistance, adaptable locking mechanisms, thermal stability, and appropriate current handling capabilities to meet the demanding requirements of contemporary electronic manufacturing and assembly processes. Whether used as an FFC Flexible Circuit Connector, an FPC Board to Board Connector, or as part of an FFC Cable Assembly Connector setup, this product delivers consistent performance and reliability, making it an excellent choice for engineers and designers worldwide.

Features:

• Product Name: FPC / FFC Connector
• Locking Material: PPS UL94V-0 RoHS compliant
• Solder Tab: Made of Phosphor Bronze for durability
• Plating Options: Gold Plating or Tin Plated for reliable conductivity
• Mounting Type: Supports Surface Mount Technology (SMT) and Through Hole Technology (THT)
• Contact Resistance: Maximum 20 milliohms for efficient signal transmission
• Ideal for use as a Flat Flexible Cable Connector
• Designed to serve as a Flexible Flat Cable Interface
• Compatible with Flexible Printed Circuit Connector applications

Technical Parameters:

Applications:

The LP-FPC023, a high-quality FPC / FFC Connector manufactured in China, is an essential component widely used in various electronic applications requiring reliable and durable connections. Certified under ISO-9001:2000, this product guarantees excellent quality and performance, making it ideal for both industrial and consumer electronics. Its robust dielectric withstanding capacity of AC 500V ensures safety and stability in demanding environments.

One of the primary application occasions for the LP-FPC023 is in the assembly of FFC Flexible Circuit Connectors, where it facilitates seamless connections between flexible printed circuits and rigid circuit boards. This connector’s compatibility with both Surface Mount Technology (SMT) and Through Hole Technology (THT) offers versatility during manufacturing, allowing for diverse mounting options based on specific device requirements. Its operating temperature range from -40°C to +105°C and max processing temperature tolerance up to 230°C (for 30-60 seconds) and 260°C (for 10 seconds) make it suitable for high-temperature soldering processes, ensuring reliable performance even under thermal stress.

In scenarios involving FFC Cable Assembly Connectors, the LP-FPC023 excels by providing up to 20,000 mating cycles durability, which is crucial for applications that demand frequent connection and disconnection without compromising signal integrity. This makes it highly suitable for use in consumer electronics such as laptops, cameras, and mobile devices, where flexible printed circuit connectors are essential for compact and lightweight designs. Additionally, the connector’s packaging options, including reels and tubes, support efficient automated assembly lines, enhancing production speed and reducing handling damage.

The LP-FPC023’s minimum order quantity of 1000PCS and a competitive price of $0.03 per unit make it an economical choice for large-scale manufacturing. With a supply ability of 100,000PCS and a delivery time of 8 to 12 days, manufacturers can rely on timely procurement to meet production schedules. Flexible payment terms including T/T, Western Union, and L/C further facilitate smooth business transactions.

In summary, the LP-FPC023 Flexible Printed Circuit Connector is perfect for various product application scenarios requiring reliable, durable, and high-performance FFC Flexible Circuit Connectors. Whether used in consumer electronics, automotive systems, or industrial equipment, this connector ensures stable electrical connections, efficient assembly, and long-lasting durability, making it an indispensable component in modern electronic design and manufacturing.

Customization:

Introducing the LP-FPC023 Flexible Printed Circuit Connector, a high-quality FPC Ribbon Cable Connector designed and manufactured by LP in China. This Flat Printed Cable Connector is certified under ISO-9001:2000, ensuring reliable performance and quality assurance.

Our LP-FPC023 model features a current rating of 0.5 Amps with an insulator resistance of 500 Megohms minimum, providing excellent electrical performance. It incorporates a locking mechanism available in both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) types, allowing for easy and secure connections.

The connector supports a maximum processing temperature of 230°C for 30 to 60 seconds and 260°C for 10 seconds, making it suitable for various soldering processes. It is plated with either gold plating or tin plating to ensure durability and reliable conductivity.

We offer a minimum order quantity of 1000PCS, with a competitive price of $0.03 per unit. The packaging options include reels or tubes, tailored to your logistical needs. Delivery time ranges from 8 to 12 days, backed by a supply ability of 100,000PCS to meet large volume demands.

Our payment terms are flexible, accepting T/T, Western Union, and L/C to accommodate global customers. Choose LP's LP-FPC023 Flexible Printed Circuit Connector for your next project and experience superior quality and service in FPC Ribbon Cable Connectors and Flat Printed Cable Connectors.
