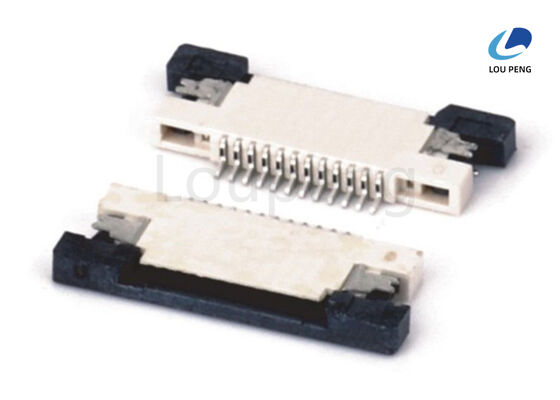

PPS UL94V0 RoHS FFC Flexible Flat Cable Connector 0.5Amps Current Rating Electrical Connection for Industrial Applications

Product Description:

The FPC / FFC Connector is a highly reliable and versatile Flat Printed Cable Connector designed to meet the demanding requirements of modern electronic devices. This connector type is available in both Zero Insertion Force (ZIF) and Low Insertion Force (LIF) configurations, providing excellent flexibility and ease of use for various applications. Whether you need to connect delicate circuits or require frequent mating and unmating, this connector ensures secure and efficient connections with minimal wear and tear.

Constructed with premium contact materials such as Copper Alloy and Phosphor Bronze, the FPC Ribbon Cable Connector offers outstanding electrical conductivity and mechanical strength. These materials ensure low contact resistance, with a maximum of 20 milliohms, which is critical for maintaining signal integrity and reducing power loss in high-speed and precision electronic assemblies. The use of advanced contact materials also contributes to the connector’s durability and long-term performance.

Durability is a significant feature of this FPC Ribbon Cable Connector, as it can withstand up to 20,000 mating cycles. This impressive endurance makes it ideal for applications where connectors are frequently connected and disconnected, such as in testing environments, portable devices, and equipment requiring regular maintenance. The robust design and high-quality materials prevent contact degradation and maintain consistent performance throughout the connector’s lifespan.

The insulation materials used in the FPC / FFC Connector further enhance its reliability and safety. Utilizing Liquid Crystal Polymer (LCP) and Nylon 6T materials rated to UL94V-0 standards, the connector offers excellent thermal stability, flame retardance, and resistance to environmental stresses. These insulation materials comply with RoHS regulations, ensuring the connector is environmentally friendly and safe for use in consumer electronics, automotive, industrial, and medical applications.

Thanks to its compact and efficient design, this Flat Printed Cable Connector is suitable for a wide range of industries, including telecommunications, computing, automotive electronics, and consumer gadgets. It provides a secure connection for Flexible Printed Circuits (FPC) and Flat Flexible Cables (FFC), making it an essential component for modern electronic interconnections. The connector supports fine pitch configurations, allowing for high-density wiring and space-saving layouts in electronic assemblies.

In summary, the FPC Ribbon Cable Connector is an advanced solution for connecting flat printed cables with reliability and ease. Its ZIF and LIF connector types offer user-friendly operation, while the copper alloy and phosphor bronze contacts guarantee excellent electrical performance with minimal resistance. The connector’s ability to endure up to 20,000 mating cycles ensures longevity, and the use of LCP and Nylon 6T insulation materials provides superior thermal and flame resistance, all while adhering to RoHS compliance. This makes the FPC / FFC Connector an ideal choice for a broad spectrum of applications requiring durable, efficient, and environmentally responsible cable connections.

Features:

• Product Name: FPC / FFC Connector
• Contact Material: Copper Alloy / Phosphor Bronze
• Mounting Type: Surface Mount Technology (SMT) / Through Hole Technology (THT)
• Sample: Free
• Solder Tab Material: Phosphor Bronze
• Color Options: Gray / Black
• Compatible with FFC Flexible Circuit Connector applications
• Ideal for FFC Cable Assembly Connector solutions
• Designed as a Flexible Printed Circuit Connector for reliable connections

Technical Parameters:

Applications:

The LP-FPC020, a high-quality Flexible Printed Circuit Connector from the reputable LP brand, is designed to meet the demanding needs of various electronic applications. Originating from China and certified under ISO-9001:2000 standards, this connector ensures reliable performance and superior quality assurance. With a minimum order quantity of 1000PCS and a competitive price of 0.03 USD per piece, it is an ideal choice for manufacturers and designers seeking cost-effective yet dependable connection solutions.

This FPC Board to Board Connector is engineered with versatility in mind, offering pitch options of 0.5mm, 1.0mm, 1.25mm, and 1.27mm to accommodate a wide range of flexible circuit designs. It supports both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) connector types, making it suitable for applications where ease of assembly and maintenance is critical. The connector’s contact resistance is maintained at a maximum of 20 milliohms, ensuring stable electrical connections and minimal signal loss.

Durability is a standout feature of the LP-FPC020, capable of withstanding up to 20,000 mating cycles. This durability makes it perfect for devices that require frequent assembly and disassembly or high-reliability connectivity over an extended product lifespan. Additionally, the connector can endure maximum processing temperatures of 230°C for 30 to 60 seconds, and up to 260°C for short durations of 10 seconds, making it compatible with standard reflow soldering processes used in modern electronics manufacturing.

Packaging options, including reels and tubes, facilitate efficient handling and automated assembly, supporting high-volume production environments. With a supply ability of 100,000PCS and a delivery time frame of 8 to 12 days, LP ensures prompt fulfillment to meet urgent production schedules. Payment terms are flexible, accepting T/T, Western Union, and L/C, accommodating a variety of purchasing preferences.

The LP-FPC020 Flexible Printed Circuit Connector, including the FFC Flexible Circuit Connector variant, finds extensive application in consumer electronics, automotive systems, medical devices, and industrial equipment. Its ability to bridge FPC boards and offer reliable, low-resistance connections makes it indispensable in compact, high-performance electronic assemblies such as smartphones, tablets, laptops, wearable devices, and advanced instrumentation. Whether used in prototype development or large-scale manufacturing, this connector provides a robust, efficient solution for flexible circuit connectivity needs.

Customization:

Introducing the LP-FPC020, a premium FPC / FFC Connector designed and manufactured by LP in China. This product is certified under ISO-9001:2000, ensuring high quality and reliability.

The LP-FPC020 connector supports a number of positions ranging from 2 to 50 pins, making it versatile for various applications. It features a contact resistance of 20 max and a dielectric withstanding voltage of AC 500V, guaranteeing stable electrical performance.

With a durability rating of up to 20,000 mating cycles, this ZIF / LIF connector type offers excellent longevity for repeated connections. The connector is suitable for FFC Flexible Flat Cable Connector, FFC Flexible Circuit Connector, and FPC Board to Board Connector applications.

We offer product customization services with a minimum order quantity of 1000PCS. The price per unit is 0.03 USD. Packaging options include reel and tubes to meet your logistical preferences.

Our supply ability is up to 100,000PCS, and the delivery time ranges from 8 to 12 days. Payment terms accepted are T/T, Western Union, and L/C, providing flexible options for your convenience.

Support and Services:

For technical support and services related to FPC/FFC connectors, please ensure that you have the product specifications, part number, and application details ready when seeking assistance. Our support team can provide guidance on product selection, compatibility, installation procedures, and troubleshooting.

We offer comprehensive technical documentation, including datasheets, application notes, and design guidelines to help you optimize connector performance in your projects. Customization options and sample requests can also be discussed through our support services.

In addition, we provide training and consultation services to assist with integration and ensure reliable connectivity solutions for your applications. For warranty information and repair services, please refer to the product terms and conditions.

Our commitment is to deliver prompt and effective support to ensure your FPC/FFC connector applications meet the highest standards of quality and reliability.

Packing and Shipping:

Product Packaging:

Each FPC / FFC connector is carefully packaged to ensure protection during transit. The connectors are placed in anti-static trays or tubes to prevent any damage or electrostatic discharge. These trays are then securely packed into sturdy cartons with cushioning materials to avoid any impact or vibration damage.

Packaging is labeled with product details including part number, quantity, and batch number for easy identification and traceability.

Shipping:

We offer reliable shipping options to ensure timely delivery of your FPC / FFC connectors. Products are shipped via trusted carriers with tracking information provided. Depending on your location and order size, shipping methods include air freight, sea freight, or courier services.

All shipments are handled with care and comply with international shipping regulations to guarantee the safe arrival of your order.
