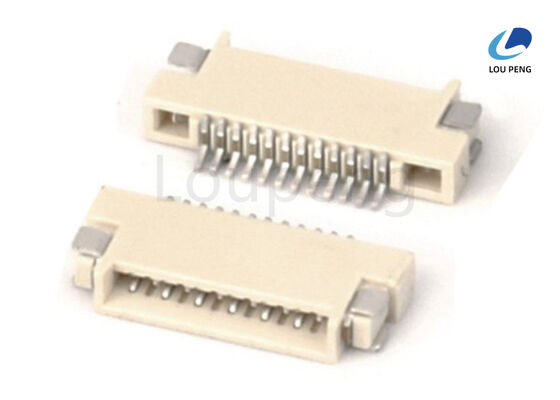

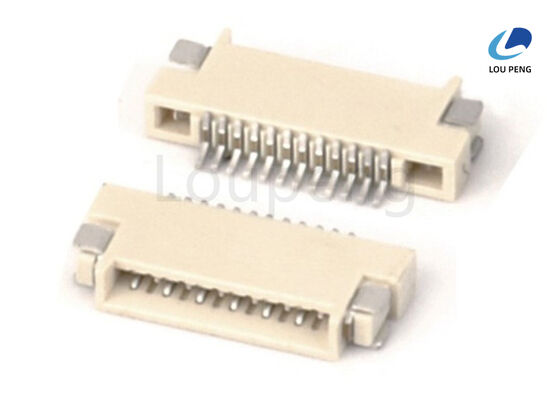

Gray FPC FFC Connector Flexible Flat Cable Connector Suitable for Compact Electronic Devices and Industrial Applications

Product Description:

The FPC / FFC Connector is a highly reliable and versatile component designed for connecting flexible printed circuits and flat printed cables in a wide range of electronic applications. Known commonly as the FPC Ribbon Cable Connector or Flat Printed Cable Connector, this product provides an efficient and durable interface solution for Flexible Flat Cable Interface requirements, ensuring stable electrical connections and excellent performance over extended periods.

One of the standout features of this connector is its exceptional durability. Engineered to withstand up to 20,000 mating cycles, it offers long-lasting service life even in demanding environments where frequent connection and disconnection are necessary. This durability significantly reduces the maintenance and replacement costs, making it an ideal choice for industrial, automotive, consumer electronics, and telecommunications applications.

The contact material used in this connector is a high-quality copper alloy combined with phosphor bronze, which ensures optimal electrical conductivity and mechanical strength. This combination enhances the connector's resistance to wear, corrosion, and oxidation, further contributing to its longevity and reliability in various operating conditions.

Designed to operate efficiently in a wide temperature range, the FPC / FFC Connector can function seamlessly from -40°C to +105°C. This broad operating temperature range makes it suitable for use in harsh environments, including outdoor and automotive applications, where temperature fluctuations can be extreme. The connector maintains stable contact resistance and mechanical integrity throughout this range, ensuring consistent performance regardless of environmental conditions.

With the capability to accommodate from 2 to 50 pins, this connector provides flexibility in design and functionality. Whether the application requires a minimal number of connections or a complex multi-pin interface, the FPC Ribbon Cable Connector can be tailored to meet specific needs. This range of positions supports various signal and power transmission requirements, making it a versatile choice for diverse electronic assemblies.

In terms of thermal processing, the connector is designed to withstand maximum processing temperatures of 230°C for 30 to 60 seconds and can endure up to 260°C for short durations of around 10 seconds. This thermal tolerance ensures compatibility with standard soldering and reflow processes used in PCB assembly, enabling seamless integration into manufacturing lines without compromising connector integrity.

Overall, the FPC / FFC Connector delivers a robust and flexible solution for connecting flexible printed circuits and ribbon cables. Its combination of high durability, superior contact materials, wide operating temperature range, and adaptable pin configurations makes it an essential component in modern electronic devices. Whether used as a Flat Printed Cable Connector or a Flexible Flat Cable Interface, this connector guarantees reliable electrical performance and mechanical stability, meeting the rigorous demands of contemporary electronic designs.

Choosing this FPC Ribbon Cable Connector ensures that your flexible cable assemblies achieve optimal connectivity, longevity, and resistance to mechanical and environmental stresses. It is a trusted choice for engineers and designers seeking a dependable and efficient interconnection solution for flexible flat cables and printed circuit applications.

Features:

• Product Name: FPC / FFC Connector
• Connector Type: ZIF / LIF
• Insulator Resistance: 500 Megohms Min.
• Contact Material: Copper Alloy / Phosphor Bronze
• Dielectric Withstanding Voltage: AC 500V
• Sample: Free
• Suitable for FFC Flexible Circuit Connector applications
• Designed as an FPC Ribbon Cable Connector for reliable connections
• High-quality FFC Flexible Circuit Connector ensuring durability and performance

Technical Parameters:

Applications:

The LP-FPC025, a high-quality FPC / FFC Connector manufactured in China by the reputable brand LP, is designed to meet the demanding requirements of modern electronic applications. Certified under ISO-9001:2000, this connector guarantees reliability and excellent performance. It is ideal for use as an FPC Board to Board Connector, FFC Cable Assembly Connector, and Flat Printed Cable Connector, serving a wide range of industries and application scenarios.

This connector is particularly suitable for compact electronic devices where space optimization is critical. Its Surface Mount Technology (SMT) and Through Hole Technology (THT) mounting options provide versatile installation methods, enabling seamless integration into various printed circuit boards and cable assemblies. The LP-FPC025’s robust construction, featuring copper alloy and phosphor bronze contact materials and a phosphor bronze solder tab, ensures excellent electrical conductivity and durability. The insulator resistance of 500 Megohms minimum further enhances its reliability in maintaining signal integrity.

In consumer electronics, the LP-FPC025 is widely used in smartphones, tablets, laptops, and wearable devices where flexible flat cables and printed circuit boards need secure and efficient connections. Its compact size and high supply ability of up to 100,000 pieces make it an ideal choice for manufacturers requiring high-volume production without compromising quality. The connector’s loeker material, made of PPS UL94V-0 rated for flame retardance and compliance with RoHS standards, guarantees safety and environmental friendliness.

Additionally, the LP-FPC025 connector excels in automotive electronic systems, where it connects flat printed cables and flexible printed circuit boards in infotainment systems, dashboard controls, and sensor modules. Its packaging options, including reels and tubes, support automated assembly lines, reducing production time and costs. With a minimum order quantity of 1000PCS and competitive pricing at $0.03 per piece, it is cost-effective for large-scale procurement.

Industrial applications also benefit from this connector’s robust design and reliable performance. The LP-FPC025 is suitable for medical equipment, robotics, and communication devices that require stable, high-quality connections between flexible cables and circuit boards. Delivery times of 8 to 12 days and flexible payment terms such as T/T, Western Union, and L/C further facilitate smooth business transactions and supply chain management.

In summary, the LP-FPC025 FPC / FFC Connector is an excellent solution for numerous application occasions and scenarios, including consumer electronics, automotive systems, industrial equipment, and more. Its features—ranging from high insulator resistance, reliable contact materials, versatile mounting types, and compliance with international standards—make it a dependable choice for FPC Board to Board Connector, FFC Cable Assembly Connector, and Flat Printed Cable Connector needs.

Customization:

Our LP brand FPC / FFC Connector, model number LP-FPC025, is a high-quality Flexible Flat Cable Interface designed to meet diverse application needs. Manufactured in China and certified with ISO-9001:2000, this FPC Ribbon Cable Connector ensures reliable performance and durability.

We offer product customization services with a minimum order quantity of 1000PCS, priced competitively at $0.03 per unit. Packaging options include Reel or Tubes to suit your logistics preferences. Our supply ability reaches up to 100,000PCS, with a delivery time frame of 8 to 12 days.

The LP-FPC025 connector supports ZIF and LIF connector types, featuring gold plating or tin plating options. It withstands a maximum processing temperature of 230°C for 30 to 60 seconds, or 260°C for 10 seconds, ensuring excellent heat resistance. The contact resistance is maintained at a maximum of 20mΩ, and the dielectric withstanding voltage is AC 500V, guaranteeing reliable electrical insulation.

We accept flexible payment terms including T/T, Western Union, and L/C to facilitate smooth transactions. Trust our Flexible Flat Cable Interface and FPC Ribbon Cable Connector customization services to provide tailored solutions that meet your specific requirements.

Support and Services:

Our FPC/FFC connectors are designed to provide reliable and efficient connections for flexible printed circuits and flexible flat cables in a wide range of electronic applications. To ensure optimal performance and longevity of the connectors, proper handling, installation, and maintenance are essential.

When handling FPC/FFC connectors, avoid applying excessive force or bending the connector or cable beyond the recommended limits, as this can cause damage to the contacts or the housing. Always ensure that the connector is properly aligned with the mating component before insertion.

During installation, make sure that the locking mechanism is fully engaged to secure the cable in place. Incomplete locking can lead to intermittent connections or signal loss. Use appropriate tools if required, and follow the manufacturer's guidelines for insertion and extraction forces.

For maintenance, keep the connectors clean and free from dust, debris, or oxidation. Use a soft brush or compressed air to remove contaminants. Avoid using solvents or abrasive materials that may damage the contacts or insulating parts.

If you encounter any issues with the FPC/FFC connectors, such as poor connectivity or physical damage, inspect the connector and cable for signs of wear or defects. Replace any damaged components promptly to prevent system failures.

Our technical support team is available to provide assistance with product selection, application advice, troubleshooting, and custom requirements to ensure that you achieve the best results with our FPC/FFC connectors.

Packing and Shipping:

Product Packaging and Shipping for FPC / FFC Connector:

Each FPC / FFC connector is carefully packaged to ensure protection against damage during transit. The connectors are placed in anti-static bags to prevent electrostatic discharge, followed by secure placement in sturdy cardboard boxes. For bulk orders, connectors are organized in trays or reels according to customer specifications, providing additional protection and ease of handling.

Standard packaging includes inner boxes with desiccant packs to control moisture and maintain product integrity. Outer cartons are labeled with product information, quantity, and handling instructions to facilitate smooth logistics and inventory management.

Shipping options include air freight, sea freight, and express courier services, depending on the urgency and destination of the order. All shipments are tracked to ensure timely delivery and customer satisfaction.
