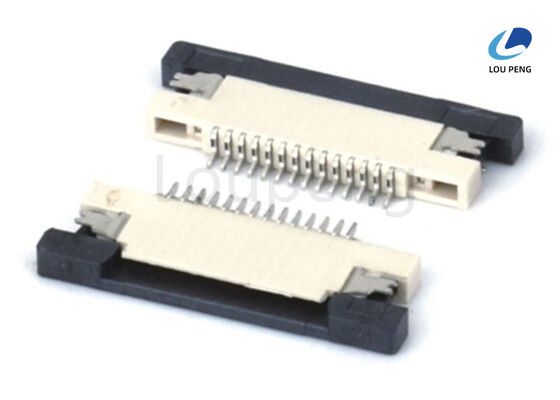

Copper Alloy Contact Material FPC Ribbon Cable Connector Durable Flexible Flat Flexible Printed Circuit Connector for Electronic Devices

Product Description:

The FPC / FFC Connector is a highly reliable and versatile component designed for seamless electrical connections in modern electronic devices. It serves as an essential interface for Flexible Flat Cable (FFC) and Flexible Printed Circuit (FPC) assemblies, facilitating efficient and compact board-to-board connections. This connector is widely utilized in various applications, including consumer electronics, automotive systems, medical equipment, and industrial machinery, where space-saving and high-performance connectivity solutions are crucial.

One of the standout features of this connector is its variety of pitch options, available in 0.5mm, 1.0mm, 1.25mm, and 1.27mm. This range ensures compatibility with a broad spectrum of FFC cable assembly connectors and FPC board to board connectors, catering to diverse design requirements and enabling high-density interconnections. The flexible pitch options allow engineers to optimize the connector layout according to their specific project needs, enhancing device miniaturization without compromising electrical performance.

The FPC / FFC Connector is engineered to withstand demanding processing conditions. It supports a maximum processing temperature of 230°C for 30 to 60 seconds, and can endure up to 260°C for 10 seconds. This high thermal tolerance ensures that the connector maintains its integrity and performance during soldering and reflow processes, making it compatible with various assembly techniques used in the electronics manufacturing industry. Such thermal resilience is critical for maintaining reliable connections and preventing damage during production.

Material quality plays a pivotal role in the performance and durability of connectors. This product incorporates contact materials made from copper alloy or phosphor bronze, both known for their excellent electrical conductivity and mechanical strength. These materials ensure low contact resistance and stable signal transmission, which are indispensable for maintaining signal integrity in high-speed data and power transmission. Moreover, the robust contact materials contribute to the connector’s long-lasting durability and resistance to wear and corrosion.

In terms of electrical performance, the FPC / FFC Connector is rated to handle a current of 0.5 Amps. This current rating is suitable for a wide range of low-power applications, providing reliable power delivery and signal transfer without overheating or degradation. The connector’s design optimizes contact pressure and electrical contact points to ensure consistent current flow and minimize the risk of connection failures.

Durability is another critical attribute of this connector. It is designed to endure up to 20,000 mating cycles, reflecting its exceptional mechanical robustness and long service life. This high durability makes it ideal for applications where connectors may need to be frequently connected and disconnected, such as in testing environments, modular electronic assemblies, or devices requiring periodic maintenance. The extended mating cycle capability reduces the need for frequent replacements, thereby lowering maintenance costs and improving overall product reliability.

In summary, the FPC / FFC Connector offers a perfect blend of compact design, reliable electrical performance, and mechanical durability. Its multiple pitch options, thermal resistance, superior contact materials, adequate current rating, and outstanding mating cycle durability make it a preferred choice for flexible flat cable interface applications. Whether used as an FFC cable assembly connector or an FPC board to board connector, this product delivers dependable connectivity solutions that meet the rigorous demands of today’s electronic devices and systems.

Features:

• Product Name: FPC / FFC Connector
• Type: Flat Printed Cable Connector, Flat Flexible Cable Connector, FFC Cable Assembly Connector
• Insulator Resistance: 500 Megohms Min.
• Sample: Free
• Plating Options: Gold Plating / Tin Plated
• Mounting Type: Surface Mount Technology (SMT) / Through Hole Technology (THT)
• Operating Temperature Range: -40°C To +105°C

Technical Parameters:

Applications:

The LP-FPC022, manufactured by LP in China, is a high-quality Flexible Flat Cable Interface designed to meet the demanding needs of modern electronic applications. Certified with ISO-9001:2000, this product guarantees superior reliability and performance. With a minimum order quantity of 1000PCS and a competitive price of 0.03 per unit, it offers excellent value for large-scale manufacturing projects. The packaging options include reel and tubes, ensuring safe and efficient handling during transportation and storage, with a delivery time frame of 8 to 12 days. Payment is flexible with terms including T/T, Western Union, and L/C, supported by a supply ability of up to 100000PCS to meet bulk demands.

The LP-FPC022 model serves as a versatile FPC Board to Board Connector, accommodating 2 to 50 pins, making it ideal for various electronic devices requiring compact and reliable connections. Its design incorporates premium materials such as PPS UL94V-0 for the loeker material and LCP (Liquid Crystal Polymer) or Nylon 6T UL94V-0 for insulation, all compliant with RoHS standards, ensuring environmental safety and durability. The connector is available with gold plating or tin plating options, enhancing conductivity and resistance to corrosion. Additionally, the locking mechanism can be chosen between ZIF (Zero Insertion Force) and LIF (Low Insertion Force), facilitating easy installation and maintenance without damaging the delicate flat flexible cables.

This Flat Flexible Cable Connector is commonly used in a wide range of application occasions and scenarios. It is extensively employed in consumer electronics such as smartphones, tablets, and laptops, where space-saving and high-performance interconnects are critical. In automotive electronics, it supports reliable connections in infotainment systems, navigation units, and advanced driver-assistance systems (ADAS). The connector is also vital in industrial equipment, including automation machinery and medical devices, where precision and durability are paramount. Furthermore, the LP-FPC022 is suitable for use in telecommunications, facilitating stable data transmission in networking hardware and communication devices.

In summary, the LP-FPC022 Flexible Flat Cable Interface and FPC Board to Board Connector is a robust and adaptable solution for various electronic interconnection needs. Its combination of quality materials, flexible locking mechanisms, and wide pin range makes it an excellent choice for engineers and manufacturers seeking dependable Flat Flexible Cable Connector solutions across multiple industries and application scenarios.

Customization:

Introducing the LP-FPC022 FPC / FFC Connector, a high-quality FFC Flexible Flat Cable Connector designed and manufactured by LP, a trusted brand from China. This product meets the ISO-9001:2000 certification standards, ensuring reliable quality and performance.

The LP-FPC022 model supports a number of positions ranging from 2 to 50 pins, making it highly versatile for various applications requiring a Flexible Flat Cable Interface. It features a solder tab made of phosphor bronze and offers plating options including gold plating and tin plated finishes for enhanced durability and conductivity.

With a dielectric withstanding voltage of AC 500V and an operating temperature range from -40°C to +105°C, this FFC Flexible Flat Cable Connector is suitable for demanding environments. The product is available in packaging options of reel or tubes, catering to different customer preferences and production needs.

We offer a minimum order quantity of 1000PCS at a competitive price of $0.03 per piece. The delivery time ranges between 8 to 12 days, supported by flexible payment terms including T/T, Western Union, and L/C. Our supply ability reaches up to 100,000PCS, ensuring steady availability for large-scale orders.

Choose the LP-FPC022 for your Flexible Flat Cable Interface needs and benefit from high-quality materials, precise manufacturing, and reliable service tailored to your product customization requirements.
