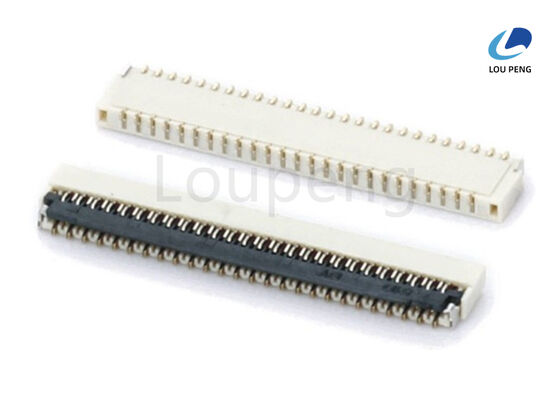

Number Of Positions 2 To 50 Pins FPC FFC Connector Featuring Pitch 05mm 10mm 125mm 127mm and Current Rating 05Amps Suitable for Flexible Circuits

Product Description:

The FPC / FFC Connector is a high-performance Flat Flexible Cable Connector designed to meet the demanding requirements of modern electronic applications. Engineered for reliability and durability, this connector is perfect for establishing secure and efficient connections in compact and flexible circuit designs. Whether you are working with consumer electronics, automotive systems, or industrial equipment, the FFC Flexible Circuit Connector offers exceptional functionality and long-lasting performance.

One of the standout features of this FFC Flexible Circuit Connector is its plating options. Available in both Gold Plating and Tin Plated finishes, the connector ensures excellent conductivity and resistance to corrosion. Gold plating provides superior signal integrity and low contact resistance, ideal for high-frequency or sensitive applications. On the other hand, the Tin Plated option offers a cost-effective solution without compromising on reliability, making it suitable for a wide range of general-purpose uses.

The connector supports a wide range of positions, accommodating from 2 to 50 pins. This versatility allows it to be seamlessly integrated into various designs, whether you require a minimal number of connections or a more complex arrangement. The pin count flexibility ensures that the Flat Flexible Cable Connector can cater to different circuit requirements, providing designers with the freedom to optimize their layouts efficiently.

Durability is a critical aspect of any connector used in flexible circuit applications, and this FFC Flexible Circuit Connector excels in this regard. It boasts an impressive durability rating of up to 20,000 mating cycles, ensuring long-term reliability even in applications involving frequent connection and disconnection. This high mating cycle capability reduces maintenance needs and enhances the overall lifespan of the electronic device it is incorporated into.

The locker's material is made from PPS (Polyphenylene Sulfide), which is UL94V-0 rated and RoHS compliant. This means the connector not only meets stringent fire safety standards but is also environmentally friendly, free from hazardous substances. The robust PPS material contributes to the connector’s mechanical strength, ensuring secure locking and stable performance under various operating conditions.

In addition to the mechanical and material advantages, the solder tabs of this Flat Flexible Cable Connector are crafted from high-quality Phosphor Bronze. This material is known for its excellent electrical conductivity, mechanical resilience, and resistance to wear and corrosion. The phosphor bronze solder tabs facilitate reliable soldering processes and maintain strong electrical connections, which are crucial for the overall integrity of the flexible circuit assembly.

Overall, the FPC / FFC Connector is an indispensable component for anyone looking to implement reliable and efficient flexible circuit connections. Its combination of durable materials, versatile pin configurations, and superior plating options make it a top choice for engineers and designers. Whether you need a robust connector for prototyping or a dependable solution for mass production, this Flat Flexible Cable Connector delivers consistent performance and quality.

Choosing this FFC Flexible Circuit Connector means investing in a product that enhances signal integrity, supports extensive mating cycles, and complies with environmental and safety standards. Its well-rounded features make it suitable for a broad spectrum of applications, including telecommunications, medical devices, consumer electronics, and automotive electronics. The FPC / FFC Connector truly represents the next level of flexible circuit connectivity, combining innovation with practicality.

Features:

• Product Name: FPC / FFC Connector
• Connector Type: ZIF / LIF
• Lockeer Material: PPS UL94V-0 RoHS compliant
• Contact Material: Copper Alloy / Phosphor Bronze
• Current Rating: 0.5 Amps
• Insulator Resistance: 500 Megohms Minimum
• Suitable for FFC Cable Assembly Connector applications
• Designed as a Flat Printed Cable Connector
• Supports Flexible Flat Cable Interface for reliable connections

Technical Parameters:

Applications:

The LP-FPC019, a premium Flat Flexible Cable Connector manufactured in China, represents a reliable and high-performance solution for various electronic applications. Certified with ISO-9001:2000, this connector guarantees quality and consistency, making it a preferred choice for industries requiring durable and efficient connectivity. With a minimum order quantity of 1000PCS and a competitive price of $0.03 per unit, it offers excellent value for large-scale production needs.

This FFC Flexible Flat Cable Connector is designed to support both Surface Mount Technology (SMT) and Through Hole Technology (THT), providing versatile mounting options to suit different PCB assembly processes. It can withstand a maximum processing temperature of 230°C for 30 to 60 seconds and up to 260°C for 10 seconds, ensuring compatibility with modern soldering techniques without compromising performance. The dielectric withstanding voltage is rated at AC 500V, ensuring safe operation in various electrical environments.

With a contact resistance of 20 milliohms max and durability supporting up to 20,000 mating cycles, the LP-FPC019 model ensures long-lasting and stable connections, which is critical for devices that require frequent connector engagements and disengagements. The packaging options of reel or tubes facilitate ease of handling and integration into automated production lines, enhancing efficiency and reducing downtime.

The LP-FPC019 FFC Flexible Circuit Connector is extensively used in consumer electronics, automotive electronics, medical devices, industrial control systems, and communication equipment. Its ability to connect flat flexible cables reliably makes it ideal for compact and lightweight electronic assemblies, such as laptops, smartphones, cameras, and wearable technology. Additionally, the connector’s robustness and resistance to high temperatures make it suitable for automotive applications where environmental conditions can be harsh.

Furthermore, this Flat Flexible Cable Connector is commonly applied in scenarios requiring high-density interconnections with limited space, such as in robotics, aerospace instruments, and advanced industrial machinery. Its high supply ability of 100,000PCS and a delivery time frame of 8 to 12 days ensure that manufacturers can meet tight production schedules without compromising on quality.

Payment terms including T/T, Western Union, and L/C provide flexible options for global customers, facilitating smooth transactions. Overall, the LP-FPC019 stands out as a cost-effective, reliable, and versatile FFC Flexible Flat Cable Connector option, perfectly suited for a wide range of applications requiring secure and efficient cable connections.

Customization:

Introducing the LP-FPC019, a high-quality Flat Printed Cable Connector designed and manufactured by LP in China. This FPC Board to Board Connector is certified under ISO-9001:2000, ensuring superior quality and reliability for your electronic applications.

Our FFC Flexible Circuit Connector comes with a minimum order quantity of 1000PCS, priced competitively at $0.03 per unit. The connectors are available in gray or black color, made from durable PPS material with UL94V-0 certification and RoHS compliance, guaranteeing safety and environmental standards.

The LP-FPC019 features ZIF and LIF connector types with positions ranging from 2 to 50 pins, suitable for a wide variety of flexible circuit connection needs. Packaging options include reel or tubes to facilitate efficient handling and assembly.

We offer a supply ability of 100,000PCS with a delivery time of 8 to 12 days. Payment terms include T/T, Western Union, and L/C to accommodate your preferred transaction method. Additionally, free samples are available for evaluation.

Choose LP's Flat Printed Cable Connector LP-FPC019 for your next project and experience reliable, customizable FPC Board to Board and FFC Flexible Circuit Connector solutions tailored to your requirements.
