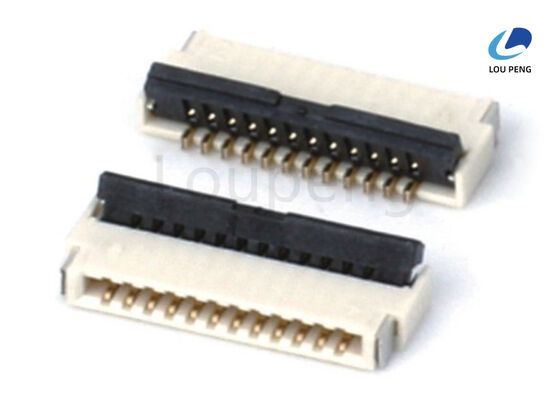

0.5mm Pitch FPC Board to Board Connector Gold Plating Electrical Connection Flexible Printed Circuit Interface

Product Description:

The FPC / FFC Connector is a highly reliable and versatile Flat Flexible Cable Connector designed to meet the demanding requirements of modern electronic applications. This connector is engineered to provide excellent electrical performance and mechanical stability, making it an ideal choice for connecting flexible flat cables and flexible printed circuits in a wide range of devices. With its advanced design and robust materials, the FPC / FFC Connector ensures secure and efficient signal transmission, contributing to the overall performance and durability of electronic assemblies.

One of the standout features of this product is its impressive thermal processing capability. The connector can withstand a maximum processing temperature of 230°C for 30 to 60 seconds, and it is also capable of enduring short-term exposure to 260°C for up to 10 seconds. This high thermal tolerance makes it suitable for various soldering processes, including Surface Mount Technology (SMT) and Through Hole Technology (THT), ensuring compatibility with different manufacturing techniques and assembly lines.

The locking mechanism of the FFC Flexible Circuit Connector is crafted from PPS (Polyphenylene Sulfide), a material known for its excellent heat resistance and mechanical strength. This material complies with UL94V-0 flame retardancy standards and meets RoHS requirements, reflecting the connector’s commitment to safety and environmental sustainability. The use of PPS ensures that the locking component remains durable and reliable even under harsh operating conditions, preventing accidental disconnections and maintaining stable connections.

For insulation, the connector utilizes high-quality materials such as Liquid Crystal Polymer (LCP) and Nylon 6T, both of which are certified to UL94V-0 standards and conform to RoHS regulations. LCP is renowned for its superior electrical properties, low moisture absorption, and outstanding thermal stability, making it an excellent choice for insulation in high-performance electronic connectors. Nylon 6T also provides robust insulation with excellent mechanical properties and chemical resistance. These materials collectively enhance the connector’s durability and ensure the integrity of the electrical signals transmitted through the flexible flat cable interface.

The FPC / FFC Connector supports both Surface Mount Technology (SMT) and Through Hole Technology (THT) mounting types. SMT mounting allows for compact and automated assembly on printed circuit boards, while THT provides strong mechanical support through holes drilled in the PCB. This dual compatibility offers flexibility in design and manufacturing, enabling engineers to select the most suitable mounting method for their specific application needs.

Additionally, customers can benefit from free samples of the FPC / FFC Connector, facilitating product evaluation and testing before committing to large-scale production. This customer-friendly approach helps designers and manufacturers to thoroughly assess the connector’s performance, compatibility, and quality, ensuring it meets all technical and operational requirements.

In summary, the FPC / FFC Connector is a premium Flat Flexible Cable Connector solution that combines high thermal resistance, superior materials, and versatile mounting options. Its robust PPS locking material, insulated with LCP or Nylon 6T, meets stringent safety and environmental standards, making it a dependable choice for various electronic devices. Whether used as an FFC Flexible Circuit Connector or as a flexible flat cable interface, this connector guarantees reliable electrical connections and mechanical stability, supporting the evolving needs of modern electronics.

Features:

• Product Name: FPC / FFC Connector
• Color Options: Gray / Black
• Contact Resistance: 20mΩ max.
• Locking Mechanism: ZIF (Zero Insertion Force) / LIF (Low Insertion Force)
• Insulator Resistance: 500 Megohms minimum
• Pitch Sizes Available: 0.5mm / 1.0mm / 1.25mm / 1.27mm
• Type: Flat Printed Cable Connector
• Compatible with FFC Flexible Circuit Connector applications
• Reliable Flat Printed Cable Connector solution for various electronic devices

Technical Parameters:

Applications:

The LP-FPC018, a premium FPC Electronic Connector Type, is designed to meet the demanding requirements of modern electronic applications. Manufactured by LP in China, this connector boasts ISO-9001:2000 certification, ensuring high quality and reliability in every unit. With a minimum order quantity of 1000PCS and a competitive price of $0.03 each, it is an ideal choice for large-scale production needs. The product is packaged carefully in reels or tubes, facilitating easy handling and assembly, and is delivered within 8 to 12 days, supported by flexible payment terms including T/T, Western Union, and L/C.

This FFC Flexible Circuit Connector is especially suitable for scenarios requiring compact, lightweight, and reliable electrical connections. Its pitch options of 0.5mm, 1.0mm, 1.25mm, and 1.27mm allow it to adapt to various design specifications, making it versatile across multiple industries. The connector’s insulator resistance of 500 Megohms minimum ensures excellent electrical insulation, while the copper alloy and phosphor bronze contact materials provide superior conductivity and durability. With a current rating of 0.5 Amps, it supports efficient power transmission in delicate electronic circuits.

Common application occasions for the LP-FPC018 include consumer electronics such as smartphones, tablets, and laptops, where space-saving and high-performance connectors are crucial. It is also widely used in automotive electronics, medical devices, and industrial control systems, where reliable and stable connections are essential for safety and functionality. The FPC Electronic Connector Type is perfect for connecting flexible printed circuits (FPC) to rigid printed circuit boards (PCB), enabling compact device designs and flexible assembly options.

Additionally, the LP-FPC018 FFC Flexible Circuit Connector is favored in prototyping and small-batch production due to the availability of free samples, which allows engineers to evaluate product compatibility and performance before committing to large orders. The supply ability of 100,000PCS ensures that manufacturers can meet both small and large volume demands efficiently. Whether used in consumer gadgets, automotive systems, or industrial equipment, the LP-FPC018 connector stands out as a reliable, cost-effective, and high-quality solution for flexible circuit connections.

Customization:

Introducing the LP-FPC018, a high-quality FPC Electronic Connector Type designed and manufactured by LP in China. Certified with ISO-9001:2000, this Flat Printed Cable Connector ensures reliable performance and durability for your electronic applications.

Our FFC Cable Assembly Connector features a locking mechanism available in both ZIF (Zero Insertion Force) and LIF (Low Insertion Force) options, accommodating from 2 to 50 pins to meet diverse connectivity needs. It operates efficiently within a temperature range of -40°C to +105°C and offers durability of up to 20,000 mating cycles, making it ideal for long-term use.

We provide flexible packaging options including reel and tubes, with a minimum order quantity of 1000PCS. The LP-FPC018 is competitively priced at $0.03 per piece, backed by a supply ability of 100,000PCS to ensure timely availability. Delivery time ranges between 8 to 12 days, with convenient payment terms including T/T, Western Union, and L/C.

Samples are available free of charge, allowing you to evaluate the quality and compatibility of our FPC Electronic Connector Type before placing bulk orders. Trust LP for your Flat Printed Cable Connector needs and experience superior performance and customization services tailored to your requirements.

Support and Services:

Our FPC/FFC Connectors are designed to provide reliable and high-performance connections for flexible printed circuits and flat flexible cables. To ensure optimal functionality and longevity of the connectors, we offer comprehensive technical support and services.

Technical support includes assistance with connector selection based on application requirements, guidance on proper handling and installation procedures, and troubleshooting advice to address any connection issues. Our team of experts is available to provide detailed product specifications, compatibility information, and customization options to meet unique project needs.

We also provide detailed documentation, including datasheets, application notes, and installation guides, to help users understand the product features and best practices. For customers requiring specialized solutions, we offer design support and collaboration to develop custom connector configurations.

In addition, our services encompass quality assurance and testing support to ensure that the connectors meet industry standards and customer expectations. We are committed to delivering prompt and effective support to maximize the performance and reliability of our FPC/FFC Connector products in your applications.
