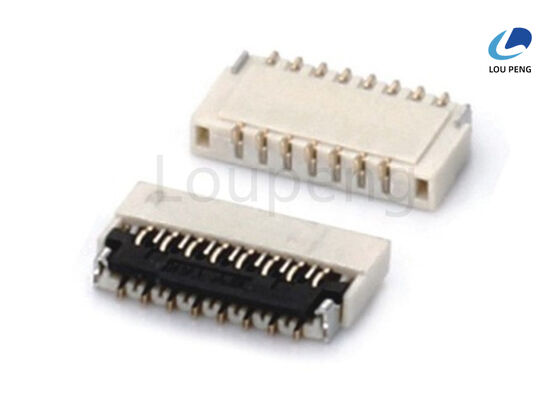

Copper Alloy Phosphor Bronze Contact Material FPC FFC Connector with Excellent 20max Contact Resistance and Pitch Options

Product Description:

The Flat Flexible Cable Connector, commonly referred to as the FPC Electronic Connector Type, is an essential component in modern electronic devices, providing reliable and efficient connectivity for flexible printed circuits. Designed to accommodate a wide range of applications, this connector supports both Surface Mount Technology (SMT) and Through Hole Technology (THT) mounting types, offering versatility to suit various assembly processes and design requirements. Whether your project demands a compact surface-mounted solution or a more robust through-hole connection, this connector adapts seamlessly to your needs.

With a number of positions ranging from 2 to 50 pins, the FPC / FFC Connector caters to diverse connectivity demands, enabling precise electrical connections in compact spaces. This broad pin range ensures compatibility with a multitude of electronic configurations, from simple two-pin connections to complex multi-pin arrangements, making it an invaluable component in sectors such as consumer electronics, automotive, telecommunications, and industrial equipment.

A standout feature of this connector is its high-quality solder tab made from phosphor bronze. This material is renowned for its excellent electrical conductivity, mechanical strength, and resistance to corrosion, ensuring long-lasting performance and durability. The phosphor bronze solder tab also facilitates secure soldering during assembly, enhancing the overall reliability of the connection and minimizing the risk of failure due to mechanical stress or environmental factors.

The connector is available in both Zero Insertion Force (ZIF) and Low Insertion Force (LIF) types, providing flexibility in user preference and application requirements. The ZIF connector type allows for effortless insertion and removal of the flat flexible cable without applying excessive force, significantly reducing wear and tear on the cable and connector contacts. This makes ZIF connectors ideal for applications that require frequent maintenance or cable replacement. On the other hand, the LIF connector type offers a balance between secure contact retention and ease of insertion, suitable for applications where occasional cable disconnects are necessary but with a slightly firmer hold.

One of the critical electrical characteristics of this FFC Flexible Circuit Connector is its high insulator resistance, rated at a minimum of 500 Megohms. This high insulation resistance ensures excellent electrical isolation between contacts, preventing leakage currents and maintaining signal integrity even in environments with high electrical noise or moisture. Such reliable insulation is vital for maintaining the performance and safety of sensitive electronic circuits, especially in precision instruments and critical communication devices.

Overall, the Flat Flexible Cable Connector embodies a perfect blend of versatility, durability, and electrical performance. Its compatibility with both SMT and THT mounting techniques allows designers and manufacturers to select the optimal assembly method for their products. The wide range of pin positions accommodates various circuit complexities, while the phosphor bronze solder tab guarantees mechanical and electrical robustness. The availability of both ZIF and LIF connector types offers tailored solutions depending on the frequency of cable handling and insertion force requirements.

In summary, the FPC / FFC Connector is a highly reliable and adaptable component that meets the rigorous demands of modern electronic assemblies. It delivers secure and efficient connections for flat flexible cables and flexible printed circuits, making it an indispensable component in the realm of electronic connectors. Whether deploying the FPC Electronic Connector Type in consumer gadgets, industrial machines, or automotive systems, users can trust this connector to provide consistent performance, ease of use, and long-term durability.

Features:

• Product Name: FPC / FFC Connector
• Suitable for Flexible Printed Circuit Connector applications
• Compatible with FPC Ribbon Cable Connector and FFC Cable Assembly Connector systems
• Plating options: Gold Plating or Tin Plated for enhanced conductivity and corrosion resistance
• Locking Mechanism: Available in ZIF (Zero Insertion Force) and LIF (Low Insertion Force) types for easy insertion and secure connection
• Insulator Resistance: Minimum 500 Megohms ensuring reliable insulation performance
• Contact Material: High-quality Copper Alloy or Phosphor Bronze for excellent electrical conductivity and durability
• Sample availability: Free samples provided for evaluation and testing

Technical Parameters:

Applications:

The LP-FPC017, a premium FPC / FFC Connector manufactured by LP in China, is widely recognized for its reliability and versatility in various electronic applications. Certified under ISO-9001:2000, this connector ensures top-notch quality and consistent performance. Designed with a phosphor bronze solder tab and contact materials made from copper alloy and phosphor bronze, the LP-FPC017 offers excellent conductivity and durability. Its pitch options of 0.5mm, 1.0mm, 1.25mm, and 1.27mm, combined with a current rating of 0.5 Amps, make it suitable for a broad range of low-current electronic devices operating under temperatures from -40°C to +105°C.

One of the primary application occasions for the LP-FPC017 is as an FPC Board to Board Connector in compact electronic devices where space optimization is crucial. It provides a reliable connection between flexible printed circuits, enabling seamless data and power transmission in devices such as smartphones, tablets, and wearable technology. The connector’s compact size and precise pitch options make it ideal for high-density circuit board assemblies, where efficient space utilization and secure connections are mandatory.

In addition, the LP-FPC017 serves as an FFC Cable Assembly Connector, facilitating connections between flat flexible cables and printed circuit boards in various consumer electronics, automotive systems, and industrial equipment. Its robust material composition and excellent soldering properties ensure stable electrical performance even in harsh environmental conditions, including temperature fluctuations and mechanical vibrations. This makes it an excellent choice for automotive infotainment systems, medical devices, and industrial control units.

Moreover, the LP-FPC017 is widely used as a Flat Flexible Cable Connector in home appliances, office equipment, and communication devices. Its packaging options, available in reels or tubes, support mass production needs with a minimum order quantity of 1000PCS and a supply ability of up to 100,000PCS. With a competitive price of 0.03 per piece and delivery time ranging from 8 to 12 days, the LP-FPC017 offers an economical and efficient solution for manufacturers seeking high-quality connectors. Payment terms including T/T, Western Union, and L/C provide flexible purchasing options to meet diverse client requirements.

Overall, the LP-FPC017 FPC / FFC Connector is a versatile and reliable component suitable for numerous electronic assembly scenarios. Its design and certifications make it an ideal choice for manufacturers aiming to achieve high performance and durability in their products, especially where flexible cable connections are essential.

Customization:

LP offers customized FPC Electronic Connector Type solutions with the model number LP-FPC017. Our Flat Printed Cable Connector is manufactured in China and holds the ISO-9001:2000 certification, ensuring high quality and reliability.

We provide a minimum order quantity of 1000PCS at a competitive price of $0.03 per unit. The packaging options include Reel or Tubes to suit your logistics needs. Delivery time is typically between 8 to 12 days.

Our supply ability reaches up to 100,000PCS, supporting large scale production requirements. Payment terms are flexible, accepting T/T, Western Union, and L/C.

The LP-FPC017 FPC Electronic Connector Type features durable construction with up to 20,000 mating cycles, operating efficiently in temperatures from -40°C to +105°C. The insulator resistance is a minimum of 500 Megohms, ensuring excellent electrical performance.

Available in ZIF and LIF connector types, the Flat Printed Cable Connector comes in gray or black colors to match your design specifications.
