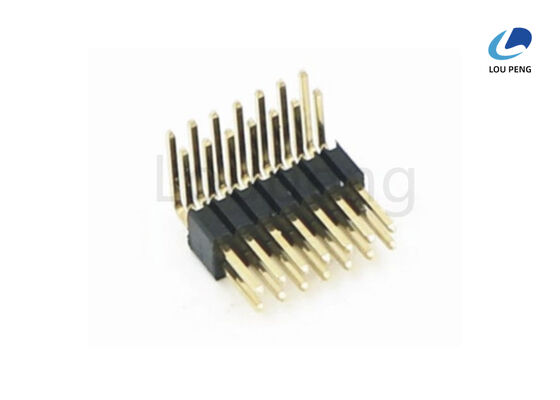

Male Pin Header Connector Featuring 3.0AMP Current Rating Suitable for Electronic Devices and Circuit Board Connections

Product Description:

The Pin Header Connector is a versatile and reliable component widely used in electronic assemblies for establishing secure electrical connections between printed circuit boards (PCBs) and other electronic parts. Designed with precision and durability in mind, this connector ensures consistent performance across various applications, making it an essential element in modern electronic devices.

One of the standout features of the Pin Header Connector is its availability in multiple pitch sizes, including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm. This range of pitch options allows designers and engineers to select the optimal spacing between pins to meet specific design requirements, optimize space on the PCB, and facilitate compatibility with different mating connectors and components.

The connector is offered in various types to accommodate diverse mounting and configuration needs. These types include Vertical, Right Angle, Surface Mount Technology (SMT), Single Row, Double Row, and Three Rows. The Vertical and Right Angle configurations provide flexibility in board layout and orientation, while the Surface Mount Pin Header type is specifically designed for surface mounting on PCBs, enhancing assembly efficiency and reliability. The availability of single, double, and triple row configurations further broadens the application scope, enabling higher pin counts and more complex circuit designs.

Durability is a critical aspect of any connector, and the Pin Header Connector excels in this regard with a rated durability of 100 cycles. This means that the connector can withstand at least 100 mating and unmating cycles without compromising its electrical and mechanical integrity. Such durability ensures long-term reliability in applications where connectors may need to be frequently connected and disconnected during maintenance, testing, or upgrades.

Electrical performance is another key attribute of this connector. The Pin Header Connector boasts a contact resistance of just 20 milliohms maximum, ensuring minimal electrical loss and high-quality signal transmission. Low contact resistance is vital for maintaining signal integrity and reducing power loss, especially in sensitive electronic circuits and high-frequency applications.

In terms of packaging, the Pin Header Connector is carefully packed in carton boxes, providing adequate protection during transportation and storage. This packaging method helps prevent damage, contamination, and deformation, ensuring that each connector arrives in optimal condition for immediate use in production lines or repair operations.

The Surface Mount Pin Header variant of this connector is particularly noteworthy for its compatibility with automated assembly processes. Designed to be mounted directly onto the surface of PCBs, the Surface Mount Pin Header facilitates rapid and accurate placement by pick-and-place machines, reducing assembly time and labor costs. This makes it an ideal choice for high-volume manufacturing environments where efficiency and precision are paramount.

Overall, the Pin Header Connector, including the Surface Mount Pin Header options, is a robust, adaptable, and high-performance solution for a wide range of electronic applications. Its diverse pitch sizes, mounting types, excellent durability, and low contact resistance make it suitable for use in consumer electronics, industrial equipment, automotive systems, and more. Whether you need a single row vertical connector for a compact device or a multi-row right angle connector for complex circuitry, this product line offers the flexibility and quality needed to meet demanding design and operational requirements.

Features:

• Product Name: PIN Header Connector
• Pin Material: Phosphor Bronze / Brass
• Insulation Resistance: 1000M Ohms Min
• Durability: 100 Cycles
• Available Types: Vertical, Right Angle, SMT, Single Row, Double Row, Three Rows
• Contact Resistance: 20 Milliohms Max
• Includes Right Angle Pin Header option for versatile PCB connections
• Designed as a PCB Mount Pin Header for reliable circuit board integration

Technical Parameters:

Applications:

The LP-P058 Pin Header Connector, manufactured by the reputable brand LP in China, is a versatile and reliable electronic component designed to meet the demands of various application occasions and scenarios. Certified under ISO-9001:2000, this connector guarantees high quality and consistent performance, making it an ideal choice for both industrial and consumer electronics.

This product is available in multiple types including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows, offering great flexibility for different circuit board designs. Among these, the Through Hole Pin Header and Single Row Pin Connector versions are particularly popular for their ease of installation and robust connection capabilities. The Single Row Pin Connector is widely used in situations where space is limited but reliable connectivity is critical, such as in compact electronic devices and control modules.

Thanks to its exceptional electrical properties, including a dielectric withstanding voltage of AC 500V and insulation resistance of 5000 megaohms minimum, the LP-P058 ensures excellent performance in high-voltage and high-frequency environments. The contact resistance is kept to a maximum of 20M Ohms, contributing to stable signal transmission and minimal power loss. The pins are crafted from high-quality Phosphor Bronze or Brass, which enhances durability, corrosion resistance, and conductivity.

The LP-P058 Pin Header Connector is widely applied in various electronic assemblies such as communication equipment, computer motherboards, industrial automation systems, and consumer electronics. Its adaptability to different packaging options including Reel, Tube, Tray, and Polybag allows for efficient handling and integration in automated production lines. With a minimum order quantity of 1000PCS and a competitive price point of 0.0001 per piece, it is well-suited for large-scale manufacturing needs.

Moreover, the product’s supply ability of 100,000PCS and a delivery time of 7 to 10 days ensures timely fulfillment of orders, supporting fast project turnaround. Payment terms are flexible, accommodating T/T, Western Union, and L/C, which facilitates smooth transactions for global customers. Whether used as a Through Hole Pin Header in robust industrial boards or as a Single Row Pin Connector in compact consumer gadgets, the LP-P058 offers dependable connectivity solutions for a wide range of electronic applications.

Customization:

Our PIN Header Connector product, branded as LP with model number LP-P058, offers extensive product customization services to meet your specific needs. Manufactured in China and certified with ISO-9001:2000, we ensure high-quality standards for every order.

We specialize in Straight Pin Header Connector and Single Row Pin Connector configurations, with options including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows types. The pitch sizes available are 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, allowing for precise compatibility with your applications.

Our Pin Header Connector supports pin numbers ranging from 2 to 40 pins and offers various plastics heights of 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 2.54mm to suit different design requirements. The contact material used is high-quality copper alloys, ensuring excellent conductivity and durability.

We provide flexible packaging options including Reel, Tube, Tray, and Polybag to accommodate your handling and storage preferences. Our minimum order quantity is 1000PCS, with a competitive price starting at 0.0001 per unit.

With a supply ability of 100,000PCS, we guarantee delivery within 7 to 10 days after order confirmation. Payment terms are convenient and include T/T, Western Union, and L/C to facilitate smooth transactions.

Choose LP’s PIN Header Connector for reliable, customizable pin header solutions that fit your project requirements perfectly.

Support and Services:

Our PIN Header Connectors are designed to provide reliable and secure connections in a wide range of electronic applications. For technical support, our team is available to assist with product selection, installation guidance, and troubleshooting to ensure optimal performance of your connectors.

We offer comprehensive services including custom configuration, testing, and quality assurance to meet your specific requirements. Our technical experts can provide detailed datasheets, application notes, and compatibility information to help you integrate our PIN Header Connectors seamlessly into your projects.

Should you require assistance with design integration or have any questions regarding the specifications and usage of our PIN Header Connectors, please refer to our online resources or contact our technical support team for prompt and professional service.

We are committed to supporting your success by delivering high-quality products and responsive technical services tailored to your needs.

Packing and Shipping:

Our PIN Header Connectors are securely packaged to ensure they reach you in perfect condition. Each connector is carefully placed in anti-static bags to protect against electrostatic discharge, then packed in sturdy boxes with cushioning materials to prevent damage during transit.

Shipping is handled promptly and efficiently, with options for standard and expedited delivery. We partner with reliable carriers to ensure timely and safe arrival of your order. Tracking information will be provided so you can monitor your shipment every step of the way.

Whether you are ordering a small quantity or bulk volumes, we guarantee secure packaging and reliable shipping to meet your business needs.
