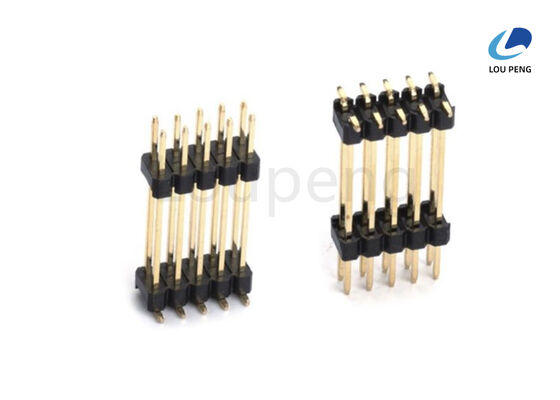

Retention Force 700g Min Through Hole Pin Header Phosphor Bronze Pin Material Ideal for Electronic Connector Applications

Product Description:

The Pin Header Connector is an essential component widely used in electronic assemblies for establishing secure and reliable electrical connections. Designed to provide excellent performance and durability, this connector is available in various configurations, including Through Hole Pin Header and Female Pin Header Connector types, catering to diverse application requirements. Engineered with precision, the Pin Header Connector offers a range of pitch options, including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, allowing for flexibility in circuit design and compatibility with various circuit boards and modules.

One of the standout features of this Pin Header Connector is its exceptionally low contact resistance, rated at a maximum of 20 milliohms. This low resistance ensures minimal signal loss and efficient power transmission, which is critical in high-performance electronic systems. The connector's contacts are made from high-quality copper alloys, known for their excellent electrical conductivity and mechanical strength. This choice of material guarantees reliable connections over extended periods, even under demanding operating conditions.

To further enhance durability and corrosion resistance, the contacts are plated with premium materials such as gold, tin, or nickel. Gold plating is particularly favored in applications where superior conductivity and resistance to oxidation are required, while tin and nickel plating offer cost-effective solutions with good protective properties. This plating variety allows users to select the optimal finish based on their specific environmental and electrical performance needs.

The Pin Header Connector is designed to withstand high dielectric stresses, boasting a dielectric strength of at least 1000 volts AC. This high dielectric strength ensures the connector can operate safely in environments with high voltage differentials, preventing electrical breakdown and maintaining insulation integrity. Such robust insulation capabilities make the connector suitable for use in industrial, automotive, telecommunications, and consumer electronics applications where safety and reliability are paramount.

Available in both Through Hole Pin Header and Female Pin Header Connector formats, this product line supports versatile mounting and mating options. Through Hole Pin Headers are ideal for applications requiring strong mechanical bonds and stable connections on printed circuit boards (PCBs), as their pins pass through the board and are soldered on the opposite side. Female Pin Header Connectors provide a convenient receptacle for male pins, facilitating easy assembly and disassembly, which is particularly useful in modular or serviceable electronic designs.

The variety of pitch sizes available in the Pin Header Connector range ensures compatibility with a wide array of electronic components and connectors. Whether designing compact, high-density boards with a 0.8mm pitch or more standard configurations like 2.54mm pitch suitable for prototyping and general use, this connector series accommodates diverse design needs. The precise pitch options also enable seamless integration with industry-standard headers and sockets, streamlining the development process.

In summary, the Pin Header Connector is a versatile, high-quality electrical connector designed to meet the rigorous demands of modern electronic devices. With its low contact resistance, robust copper alloy contacts, multiple plating options, high dielectric strength, and a diverse range of pitch sizes, it ensures reliable electrical connections and mechanical stability. Whether used as a Through Hole Pin Header or a Female Pin Header Connector, this product provides the performance and durability required for professional-grade electronic assemblies, making it an indispensable component in the electronics industry.

Features:

• Straight Pin Header Connector design for easy and reliable connections
• Available in gold, tin, and nickel plating options for enhanced durability
• Surface Mount Pin Header compatible for versatile PCB mounting
• High insulation resistance of 5000 megaohms minimum ensuring excellent electrical isolation
• Low contact resistance with a maximum of 20 milliohms for efficient signal transmission
• Strong retention force of 700g minimum for secure and stable connections
• Packed in a sturdy carton box to protect the Pin Header Connector during shipping and storage

Technical Parameters:

Applications:

The LP Pin Header Connector, model number LP-P052, is a versatile and reliable component designed for a wide range of electronic applications. Manufactured in China and certified under ISO-9001:2000 standards, this connector ensures high quality and consistent performance. Its availability in various plastics heights, including 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 2.54mm, makes it adaptable for different circuit board designs and requirements. The LP Pin Header Connector is ideal for use in both industrial and consumer electronics where dependable electrical connections are essential.

One of the common application scenarios for the LP-P052 Pin Header Connector is in printed circuit board (PCB) assemblies. The Right Angle Pin Header variant is especially useful in compact electronic devices where space optimization is critical, allowing connections to be made at a 90-degree angle to the board. This makes it perfect for use in devices like computers, communication equipment, and instrumentation, where board-to-board or wire-to-board connections are needed without increasing the device footprint.

The Through Hole Pin Header option provides robust mechanical stability and excellent electrical contact, making it suitable for environments subject to vibration or mechanical stress. This makes it an excellent choice for automotive electronics, industrial control systems, and other harsh environment applications. The connector’s insulator materials, including LCP, Nylon, PA6T, and PBT+30% glass fiber with UL94V-0 rating, ensure excellent durability and heat resistance, withstanding processing temperatures up to 260℃ for 10 seconds and dielectric withstanding voltage up to AC 500V.

In addition to industrial applications, the LP Pin Header Connector is widely used in consumer electronics such as home appliances, audio-visual equipment, and handheld devices. Its durability, rated at 100 cycles, ensures long-term reliability even with frequent mating and unmating cycles. Packaging options such as reel, tube, tray, and polybag facilitate easy handling and integration into automated assembly lines, enhancing production efficiency.

With a supply ability of 100,000PCS and a minimum order quantity of 1000PCS, the LP-P052 Pin Header Connector is available at an extremely competitive price point of 0.0001 per piece. Delivery is prompt, typically within 7 to 10 days, and flexible payment terms including T/T, Western Union, and L/C make procurement convenient for businesses worldwide. These attributes combine to make the LP Pin Header Connector a preferred choice for engineers and manufacturers seeking reliable, cost-effective connection solutions across various application occasions and scenarios.

Customization:

Introducing the LP-P052 Pin Header Connector, a high-quality Single Row Pin Connector designed for reliable electrical connections. Manufactured by LP in China, this product meets the stringent ISO-9001:2000 certification standards, ensuring superior quality and performance.

Our Pin Header Connector features a retention force of 700g minimum, providing secure and stable connections. The connector supports current ratings of 1.0AMP or 3.0AMP, making it suitable for various electronic applications. The pins are made from premium Phosphor Bronze or Brass, offering excellent conductivity and durability.

The LP-P052 Single Row Pin Connector is available with plating options including Gold, Tin, or Nickel, enhancing corrosion resistance and longevity. It boasts an insulation resistance of 5000 megaohms minimum, ensuring reliable insulation performance under different operating conditions.

We offer flexible packaging options such as Reel, Tube, Tray, or Polybag to meet diverse customer requirements. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per piece, we provide excellent value without compromising quality.

Our supply ability is robust, capable of delivering up to 100,000PCS, with a delivery time of 7 to 10 days. Payment terms are convenient and secure, including T/T, Western Union, and L/C options.

Choose the LP-P052 Single Row Pin Connector for your next project and benefit from a reliable, cost-effective solution tailored to your needs. Contact us today to customize your Pin Header Connector and experience our professional product customization services.
