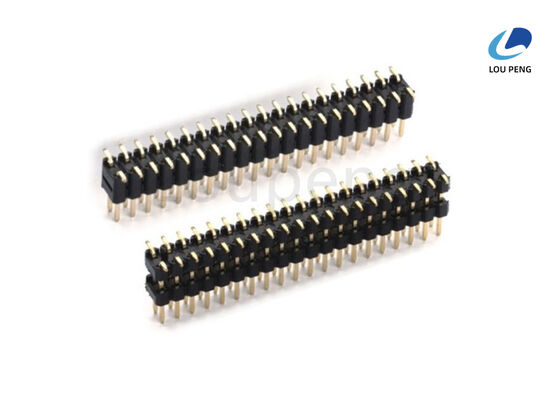

Gold Plating PIN Header Connector SMT Double Row Contact Resistance 20M Ohms Max Perfect for Compact and Circuit Board Assemblies

Product Description:

The PIN Header Connector is a versatile and essential component widely used in electronic assemblies for establishing reliable electrical connections between printed circuit boards (PCBs) and other components or devices. Designed to accommodate a variety of configurations, this connector is available in multiple types including Vertical, Right Angle, Surface Mount Technology (SMT), Single Row, Double Row, and even Three Rows, making it suitable for a broad range of applications and design requirements.

One of the primary variants of this product is the PCB Mount Pin Header, which is specifically engineered to be mounted directly onto the printed circuit board. This mounting style ensures a secure and stable connection, facilitating efficient signal transmission and power distribution. The PCB Mount Pin Header comes in various pin counts, ranging from as few as 2 pins to as many as 40 pins, providing flexibility for different circuit complexities and functionalities. Whether you need a minimal connection or a more extensive interface, this connector can be tailored to fit your needs.

Among the types available, the Straight Pin Header Connector, also known as a Single Row Pin Connector, is particularly popular due to its straightforward design and ease of use. This type features pins arranged in a single linear row, making it ideal for simple interconnections and straightforward PCB layouts. The single row configuration is perfect for applications where space is limited or where a simple, direct connection is required. It offers an efficient and cost-effective solution without compromising on performance or reliability.

In terms of electrical performance, the PIN Header Connector exhibits excellent insulation resistance with a minimum rating of 5000 megaohms. This high insulation resistance ensures that the connector maintains signal integrity by preventing unwanted current leakage and minimizing electrical noise. Additionally, the connector is designed to withstand dielectric stress, with a dielectric withstanding voltage of AC 500V. This capability guarantees safe operation under high voltage conditions, making it suitable for use in demanding electronic environments where reliability is paramount.

The manufacturing process and material quality are also critical aspects of this connector’s performance. The PIN Header Connector is capable of withstanding processing temperatures up to 260℃ for 10 seconds, which is essential for compatibility with modern reflow soldering techniques used in automated PCB assembly. This thermal endurance ensures that the connector maintains its structural integrity and electrical properties even after exposure to high-temperature soldering processes, resulting in a durable and long-lasting connection.

Available in configurations such as Double Row and Three Rows, the PIN Header Connector offers increased pin density for applications that require more complex interconnections without expanding the PCB footprint excessively. These multi-row options provide enhanced versatility, enabling designers to optimize space and improve connectivity in sophisticated electronic systems.

Whether you are designing consumer electronics, industrial equipment, or communication devices, the PIN Header Connector provides a reliable, high-quality solution for your PCB interconnection needs. Its range of types, excellent electrical properties, high insulation resistance, and robust processing temperature tolerance make it a preferred choice among engineers and manufacturers worldwide.

In summary, the PIN Header Connector, including variants such as the PCB Mount Pin Header, Straight Pin Header Connector, and Single Row Pin Connector, stands out as an indispensable component in modern electronics. Offering a wide array of pin counts from 2 to 40 pins, various mounting styles, and exceptional electrical and mechanical properties, this connector ensures dependable performance and ease of integration in virtually any electronic application.

Features:

• Product Name: PIN Header Connector
• Number of Pins: 2 to 40 Pins
• Pin Numbers: 2 to 40 Pins
• Contact Resistance: 20M Ohms Max
• Insulation Resistance: 1000M Ohms Min
• Insulator Materials: LCP, NYLON, PA6T, PBT+30%G.F (UL94V-0)
• Available as Through Hole Pin Header and Surface Mount Pin Header
• Single Row Pin Connector design

Technical Parameters:

Applications:

The LP brand Pin Header Connector, model number LP-P049, is a versatile and reliable connector solution originating from China. Certified with ISO-9001:2000, this connector is manufactured under strict quality control to ensure high performance and durability. With a wide range of pin numbers available, from 2 to 40 pins, it caters to various electronic design needs, making it an ideal choice for different application occasions and scenarios.

This Male Pin Header Connector is commonly used in electronics manufacturing, prototyping, and assembly processes where secure and stable connections are essential. Its through hole pin header design ensures excellent mechanical strength and durability, making it suitable for printed circuit boards (PCB) that require reliable soldering and robust electrical connections. The connector’s insulator options, including LCP, Nylon, PA6T, and PBT+30% glass fiber (UL94V-0 rated), provide excellent heat resistance and electrical insulation, which is critical for high-performance and safety-critical applications.

In industrial automation and control systems, the LP-P049 Male Pin Header Connector is widely applied to connect sensors, actuators, and controllers. Its contact resistance of 20M Ohms max ensures minimal signal loss and high signal integrity, which is crucial for precise data transmission and reliable system performance. Additionally, the connector’s plastic height options ranging from 1.0mm to 2.54mm allow for flexible design integration in compact or standard electronic devices.

In consumer electronics, this connector supports various devices such as computers, communication equipment, and home appliances, where Female Pin Header Connectors often mate with the male counterpart for modular and easy-to-maintain connections. The LP-P049’s packaging options—reel, tube, tray, and polybag—facilitate efficient handling and automated assembly, thus reducing production time and cost.

Furthermore, the availability of a minimum order quantity of 1000PCS at an extremely competitive price of 0.0001 USD per piece, combined with a supply ability of 100,000PCS and delivery time of 7 to 10 days, makes the LP-P049 connector an excellent choice for large-scale manufacturing projects. Payment terms such as T/T, Western Union, and L/C provide flexible and secure transaction options for global customers.

Overall, the LP-P049 Male Pin Header Connector and its compatible Female Pin Header Connector counterparts are indispensable in electronics manufacturing, embedded systems, industrial machinery, and consumer device applications. Their robust through hole pin header design, wide pin count range, and high-quality materials ensure reliable electrical connections and long-term performance in various demanding scenarios.

Customization:

LP offers customized Product Customization Services for the PIN Header Connector, model number LP-P049, proudly made in China and certified with ISO-9001:2000. Our Dual Row Pin Header and Male Pin Header Connector are available with the number of pins ranging from 2 to 40 pins, accommodating various application needs.

These Through Hole Pin Headers are manufactured using high-quality copper alloys for reliable contact and durability of up to 100 cycles. They support processing temperatures up to 260℃ for 10 seconds, ensuring excellent soldering performance.

The connectors come with multiple pitch options including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, allowing flexible design integration. Packaging is available in Reel, Tube, Tray, or Polybag formats to suit your shipping and handling preferences.

We maintain a supply ability of 100,000 PCS with a minimum order quantity of 1000 PCS. Pricing is competitive at 0.0001 per unit, with delivery times ranging from 7 to 10 days. Payment terms include T/T, Western Union, and L/C for your convenience.

Choose LP's PIN Header Connectors for high-quality, customizable solutions tailored to your electronic assembly requirements.

Support and Services:

Our PIN Header Connector product is supported by a dedicated technical support team committed to providing comprehensive assistance throughout the product lifecycle. We offer detailed product documentation, including datasheets, application notes, and installation guides to help you understand and utilize the connector effectively.

In addition to documentation, we provide expert engineering support to assist with product selection, customization, and troubleshooting, ensuring that the PIN Header Connector meets your specific application requirements. Our support services include design consultation, compatibility assessments, and recommendations for optimal usage.

We also offer repair and replacement services to maintain the reliability and performance of your PIN Header Connectors. Our quality assurance team continuously monitors product performance and incorporates feedback to enhance product design and durability.

Training sessions and webinars are available to educate customers on best practices for handling, installing, and maintaining PIN Header Connectors, ensuring maximum efficiency and safety in your operations.

By choosing our PIN Header Connector, you benefit from a comprehensive support system designed to facilitate seamless integration and long-term success in your projects.

Packing and Shipping:

Our PIN Header Connectors are securely packaged to ensure they arrive in perfect condition. Each connector is carefully placed in anti-static bags to protect against electrostatic discharge, then cushioned with foam padding or bubble wrap to prevent physical damage during transit. The packaging is labeled with product specifications for easy identification.

For shipping, we partner with reliable carriers to offer timely and safe delivery worldwide. Orders are processed promptly, and tracking information is provided to keep you updated throughout the shipping journey. Whether you require bulk shipments or small quantities, we ensure that your PIN Header Connectors are shipped efficiently and arrive on schedule.
