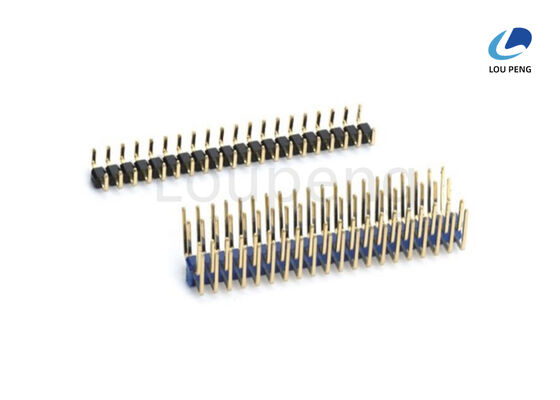

Retention Force 700g Min Pin Header Connector in Pitch 0.8mm 1.0mm 1.27mm 2.0mm 2.54mm with Insulation Resistance 5000 Megaohms Min

Product Description:

The Male Pin Header Connector is a versatile and reliable component widely used in electronic applications for establishing secure and efficient electrical connections. Designed with precision and manufactured from high-quality materials, this Pin Header Connector ensures optimal performance and durability in various environments. The contacts of this connector are made from superior copper alloys, which provide excellent conductivity and corrosion resistance, making it ideal for long-term use in demanding electronic circuits.

This Pin Header Connector is engineered to handle current ratings of either 1.0AMP or 3.0AMP, catering to a broad range of low to moderate power applications. Whether you are designing a simple circuit board or a complex electronic device, this connector can meet your current handling requirements effectively. The ability to support different current ratings also adds versatility, allowing users to select the appropriate specification based on their specific power needs.

One of the key components of this Male Pin Header Connector is its insulator, which is available in a variety of high-performance materials including LCP (Liquid Crystal Polymer), Nylon, PA6T (Polyamide 6T), and PBT+30% Glass Fiber (UL94V-0 rated). These materials provide excellent mechanical strength, thermal stability, and flame retardance, ensuring that the connector maintains its integrity and safety under various operating conditions. The UL94V-0 rating of the PBT+30% Glass Fiber insulator further guarantees that the connector complies with stringent safety standards, making it suitable for use in critical electronic devices.

In addition to its robust construction, the Pin Header Connector boasts a low contact resistance of 20 milliohms (20M Ohms) maximum, which is crucial for minimizing signal loss and maintaining the efficiency of electrical connections. Low contact resistance helps in reducing heat generation and power dissipation, thereby enhancing the overall reliability and longevity of the connected electronic components. This characteristic makes the connector especially beneficial in high-frequency signal transmission and sensitive electronic circuits.

For convenience and protection during shipping and storage, the Male Pin Header Connector is packed securely in carton boxes. This packaging method ensures that the connectors arrive in excellent condition, free from damage or contamination. It also facilitates easy handling, inventory management, and distribution for manufacturers and end-users alike.

The Pin Header Connector is widely used in various industries including consumer electronics, automotive, telecommunications, industrial automation, and computer hardware. Its compact design and standardized pin configuration make it compatible with a broad range of circuit boards and electronic modules. Whether utilized for prototyping, manufacturing, or repair, this connector provides a dependable and consistent connection solution.

In summary, the Male Pin Header Connector combines high-quality copper alloy contacts, versatile current ratings of 1.0AMP or 3.0AMP, advanced insulating materials such as LCP, Nylon, PA6T, and flame-retardant PBT+30% Glass Fiber, and low contact resistance of 20 milliohms maximum. Its secure carton box packing ensures safe delivery and handling. This Pin Header Connector is an excellent choice for engineers and designers looking for a durable, efficient, and safe connection component that meets industry standards and performance requirements.

Features:

• Product Name: PIN Header Connector
• Type: Through Hole Pin Header
• Style: Straight Pin Header Connector
• Contact Resistance: 20M Ohms Max
• Fire Protection Grade: UL94V-0
• Dielectric Strength: 1000 V AC Min
• Gender: Male
• Packing: Carton Box

Technical Parameters:

This Male Pin Header Connector is available as a Through Hole Pin Header and Right Angle Pin Header, suitable for various electronic applications.

Applications:

The LP brand PIN Header Connector, model number LP-P057, is a versatile and reliable component designed for a wide range of electronic applications. Manufactured in China and certified with ISO-9001:2000, this product guarantees high quality and consistent performance. Suitable for both industrial and consumer electronics, the LP-P057 excels in various application occasions and scenarios thanks to its robust design and multiple configuration options.

One of the key applications of the LP-P057 PIN Header Connector is in printed circuit board (PCB) assembly. As a PCB Mount Pin Header, it provides secure and stable connections between different circuit boards or components. This makes it ideal for use in electronic devices such as computers, communication equipment, industrial control systems, and consumer electronics, where reliable electrical connections are critical.

The connector supports a number of pins ranging from 2 to 40, allowing customization depending on the complexity of the electronic circuit. Its Single Row Pin Connector format is particularly advantageous for applications requiring compact and efficient connections without compromising durability. The right angle pin header variant further enhances versatility by enabling connections in tight spaces or where PCB layout demands angular mounting.

The LP-P057 PIN Header Connector is plated with gold, tin, or nickel, ensuring excellent conductivity and corrosion resistance. With a contact resistance of no more than 20 milliohms and a current rating of either 1.0 AMP or 3.0 AMP, it delivers dependable electrical performance in both low and moderate power applications. Additionally, it can withstand processing temperatures up to 260℃ for 10 seconds, making it compatible with standard soldering and assembly processes.

Packaging options such as reel, tube, tray, or polybag are available to meet different manufacturing needs, facilitating efficient handling and storage. With a supply ability of 100,000 PCS and a minimum order quantity of 1000 PCS, the LP-P057 connector is well-suited for both small and large-scale production runs. The product is competitively priced at 0.0001 per unit, offering cost-effective solutions without sacrificing quality.

Delivery times typically range from 7 to 10 days, and the company supports flexible payment terms including T/T, Western Union, and L/C, making procurement convenient for global customers. Overall, the LP-P057 PIN Header Connector is an excellent choice for engineers and manufacturers seeking a reliable Single Row Pin Connector, Right Angle Pin Header, or PCB Mount Pin Header for diverse electronic applications.

Customization:

Introducing the LP-P057 PIN Header Connector, a versatile product from the reputable brand LP, made in China with ISO-9001:2000 certification ensuring top quality and reliability. Our product customization services cater to your specific needs, offering both Right Angle Pin Header and Straight Pin Header Connector options to suit various applications.

With a current rating of 1.0AMP or 3.0AMP and contact resistance of 20 milliohms max, the LP-P057 guarantees excellent electrical performance. Available in configurations ranging from 2 to 40 pins, this Right Angle Pin Header is designed to meet diverse project requirements.

We offer flexible packaging options including Reel, Tube, Tray, and Polybag, all carefully packed in a sturdy carton box for safe delivery. Our minimum order quantity is 1000PCS, with a competitive price of 0.0001 per unit and a supply ability of 100000PCS to ensure timely fulfillment of your orders.

Delivery time is typically between 7 to 10 days, supported by convenient payment terms including T/T, Western Union, and L/C. Whether you require a male gender connector or specific pin configurations, our customization services for the Right Angle Pin Header and Straight Pin Header Connector are designed to provide the perfect solution for your electronic projects.
