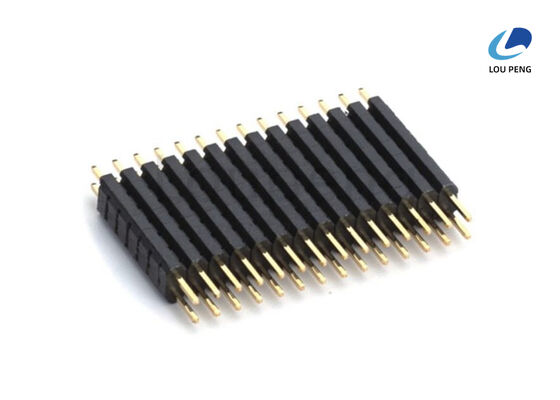

Gold Plating Dual Row Pin Header 2 To 40 Pins Versatile Connector Suitable for Multiple Electronic Applications

Product Description:

The PIN Header Connector is a versatile and reliable electronic component widely used in various electronic devices and circuit boards. Designed for efficient connectivity, this connector ensures stable and secure electrical connections, making it an essential component for both prototyping and production-level applications. The product is available in multiple configurations, including the Through Hole Pin Header and Female Pin Header Connector, catering to different design needs and preferences.

One of the standout features of this Pin Header Connector is its excellent insulation resistance, rated at a minimum of 1000M Ohms. This high insulation resistance ensures minimal leakage currents and enhances the overall safety and durability of the connector in various electrical environments. This characteristic is particularly important for applications where signal integrity and prevention of electrical interference are critical.

The connector is also designed to withstand high dielectric stress. It boasts a dielectric strength of at least 1000 V AC and a dielectric withstanding voltage of AC 500V. This means the connector can endure high voltage conditions without breaking down, making it suitable for use in demanding industrial and consumer electronics applications. The ability to handle such voltages ensures reliability and longevity, even under harsh operating conditions.

Current rating is another critical aspect of the PIN Header Connector’s performance. This product supports current ratings of 1.0 AMP or 3.0 AMP, providing flexibility depending on the power requirements of the application. Whether used in low-power signal transmission or higher power circuits, this connector ensures consistent performance without overheating or degradation, contributing to the overall efficiency and safety of the electronic system.

Contact resistance is a key parameter that affects the quality of electrical connections. The Pin Header Connector features a maximum contact resistance of 20 milliohms, which guarantees minimal voltage drop and excellent conductivity. Low contact resistance is essential for maintaining signal integrity and reducing power losses, making this connector ideal for high-performance and precision electronic applications.

The Through Hole Pin Header variant is designed for robust mechanical stability, as the pins pass through the PCB and are soldered on the opposite side, providing a strong physical connection. This type of mounting is preferred in applications where durability and mechanical strength are paramount, such as in automotive, industrial, and heavy-duty electronics. It also facilitates easier manual soldering and inspection, making it a popular choice among engineers and technicians.

On the other hand, the Female Pin Header Connector offers complementary functionality by providing a socket for male pin headers. This facilitates modular and flexible connections, allowing for easy assembly and disassembly of components. Female connectors are essential for creating detachable connections in electronic assemblies, enabling maintenance, upgrades, and customization without soldering.

In summary, the PIN Header Connector, available in Through Hole Pin Header and Female Pin Header Connector configurations, is a high-quality component designed to meet rigorous electrical and mechanical standards. With outstanding insulation resistance, high dielectric strength, reliable current ratings, and low contact resistance, this connector ensures dependable performance across a wide range of applications. Whether for industrial, consumer, or prototyping use, it provides the durability, safety, and efficiency required for modern electronic systems.

Features:

• Product Name: PIN Header Connector
• Type: Through Hole Pin Header
• Configuration: Straight Pin Header Connector
• Number of Pins: 2 to 40 Pins
• Insulation Resistance: 5000 Megaohms Minimum
• Dielectric Withstanding Voltage: AC 500V
• Fire Protection Grade: UL94V-0
• Retention Force: 700g Minimum

Technical Parameters:

Applications:

The LP-P056 Pin Header Connector by brand LP is a versatile and reliable component widely used in various electronic applications. Manufactured in China and certified under ISO-9001:2000, this connector ensures high-quality performance and durability. With a range of 2 to 40 pins, it caters to diverse connectivity needs, making it suitable for both simple and complex circuit designs.

One of the primary application occasions for the LP-P056 is in the assembly of Single Row Pin Connectors. These connectors are essential in compact electronic devices where space is limited, providing a stable and secure electrical connection. Their robust insulator materials, including LCP, Nylon, PA6T, and PBT+30%G.F (UL94V-0), guarantee excellent insulation resistance of 1000M Ohms minimum, which is critical in preventing electrical leakage and ensuring signal integrity.

In addition to single-row configurations, the LP-P056 is also widely used as a Female Pin Header Connector in various electronic modules. This type of connector is crucial for creating detachable and reusable connections between circuit boards and other components, facilitating easier maintenance and upgrades. The availability of plating options such as gold, tin, and nickel enhances corrosion resistance and conductivity, making these connectors ideal for high-frequency and high-reliability applications.

Dual Row Pin Header applications represent another significant scenario where the LP-P056 excels. These connectors are commonly employed in computer motherboards, industrial control systems, and communication equipment, where multiple signal lines need to be connected compactly and efficiently. The packaging options, including reel, tube, tray, and polybag, allow for flexible handling and integration into automated assembly lines.

With a minimum order quantity of 1000PCS and a competitive price point of 0.0001 per unit, the LP-P056 Pin Header Connector offers excellent value for manufacturers and suppliers. The supply ability of 100,000PCS ensures a steady availability, while the delivery time of 7 to 10 days meets the demands of rapid production cycles. Payment terms such as T/T, Western Union, and L/C provide convenient transaction options for international buyers.

Overall, the LP-P056 Pin Header Connector is ideal for various application occasions and scenarios, including consumer electronics, automotive, telecommunications, and industrial automation. Its reliable insulation, customizable pin configurations, and robust plating options make it a preferred choice for engineers and designers seeking dependable and high-performance connectors.

Customization:

LP offers customized Straight Pin Header Connector solutions under model number LP-P056, proudly manufactured in China with ISO-9001:2000 certification. Our Pin Header Connector products feature pin numbers ranging from 2 to 40 pins, designed as Single Row Pin Connectors with male gender configuration. The pins are made from high-quality Phosphor Bronze or Brass, ensuring durability up to 100 cycles and reliable operation in temperatures from -65°C to +125°C.

We provide flexible packaging options including Reel, Tube, Tray, and Polybag to meet your specific requirements. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, LP guarantees prompt delivery within 7 to 10 days. Our payment terms include T/T, Western Union, and L/C, supporting a supply ability of up to 100,000PCS to fulfill large-scale demands efficiently.

Choose LP’s Pin Header Connector customization services for high-quality, reliable Single Row Pin Connectors and Straight Pin Header Connectors tailored to your exact specifications.
