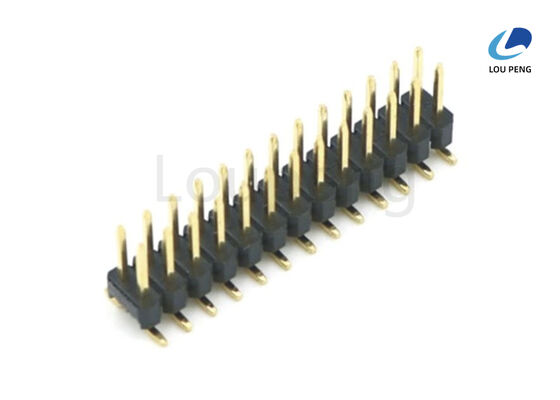

2 To 40 Pins Pin Header Connector Offering 260C Processing Temperature for 10 Seconds and 1000M Ohms Min Insulation Resistance Providing Stable Circuit Connections

Product Description:

The Surface Mount Pin Header is an essential component widely used in electronic devices for establishing reliable electrical connections between printed circuit boards (PCBs) and various electronic modules. This Pin Header Connector is designed with precision to ensure optimal performance, durability, and ease of installation, making it a preferred choice for engineers and manufacturers across different industries.

One of the standout features of this Surface Mount Pin Header is its versatility in pitch sizes, accommodating a range of applications. It is available in multiple pitch options including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm. This variety ensures compatibility with a wide array of PCB layouts and design requirements, allowing for flexibility in circuit design and assembly processes. Whether the need is for compact, high-density connections or more standard spacing, this Pin Header Connector meets those demands efficiently.

The construction of the Pin Header Connector emphasizes high-quality materials to guarantee excellent electrical conductivity and mechanical strength. The pin material options include Phosphor Bronze and Brass. Phosphor Bronze is known for its superior elasticity, corrosion resistance, and excellent conductivity, making it ideal for applications requiring sustained performance under mechanical stress. Brass, on the other hand, offers good conductivity and mechanical robustness, providing a cost-effective alternative without compromising reliability. These materials ensure the pins maintain strong and consistent contact with mating connectors, thereby enhancing signal integrity and overall device performance.

The insulator used in the Surface Mount Pin Header is equally critical to its functionality. This product employs high-grade insulating materials such as LCP (Liquid Crystal Polymer), Nylon, PA6T, and PBT with 30% Glass Fiber reinforcement (PBT+30%G.F). All these materials comply with UL94V-0 flame retardant standards, ensuring safety and durability even in demanding environments. LCP provides excellent dimensional stability and thermal resistance, Nylon offers flexibility and toughness, PA6T is known for its high mechanical strength and chemical resistance, while PBT+30%G.F enhances rigidity and heat resistance. This combination of insulating materials ensures the Pin Header Connector can withstand rigorous processing conditions and operational stresses.

Processing temperature is a crucial factor in the soldering and assembly of Surface Mount Pin Headers. This product is designed to endure a peak processing temperature of 260℃ for up to 10 seconds, aligning with standard reflow soldering profiles used in modern surface mount technology (SMT) assembly lines. This thermal resilience guarantees that the connector maintains its structural integrity and performance characteristics even after exposure to high-temperature soldering processes, reducing the risk of deformation or connection failure.

In terms of packaging, the Surface Mount Pin Header is supplied in sturdy carton boxes, ensuring safe transportation and storage. The carton box packaging provides adequate protection against physical damage, moisture, and contamination, preserving the quality of the connectors until they reach the production floor. This reliable packaging solution supports efficient inventory management and handling, facilitating smooth logistics and supply chain operations.

Overall, the Surface Mount Pin Header offers a combination of precision engineering, high-quality materials, and robust design features that make it an indispensable component for electronic assemblies. Its availability in multiple pitch sizes, coupled with durable pin and insulator materials, ensures compatibility and longevity in diverse applications. The ability to withstand high processing temperatures further enhances its suitability for contemporary SMT manufacturing processes. Packaged securely in carton boxes, this Pin Header Connector is ready to meet the demanding needs of modern electronic device fabrication.

Whether used in consumer electronics, industrial equipment, telecommunications, or automotive electronics, the Surface Mount Pin Header stands out as a reliable and efficient solution for creating dependable electrical connections. Its design and material composition emphasize performance, safety, and ease of use, making it a smart choice for engineers seeking to optimize their PCB assembly processes and product reliability.

Features:

• Product Name: PIN Header Connector
• Gender: Male
• Current Rating: 1.0AMP or 3.0AMP
• Fire Protection Grade: UL94V-0
• Contact Resistance: 20M Ohms Max
• Dielectric Withstanding Voltage: AC 500V
• Type: Dual Row Pin Header
• High-quality Pin Header Connector for reliable electrical connections
• Durable and efficient Pin Header Connector suitable for various applications

Technical Parameters:

Applications:

The LP-P053 Pin Header Connector, manufactured by LP in China, is an essential component widely used in various electronic applications. Certified under ISO-9001:2000, this Single Row Pin Connector ensures high reliability and consistent performance. With a contact resistance of 20 milliohms max and a fire protection grade of UL94V-0, it is designed to provide stable electrical connections in demanding environments.

One of the primary application occasions for the LP-P053 Pin Header Connector is in the assembly of printed circuit boards (PCBs) for consumer electronics. Devices such as computers, smartphones, and home appliances frequently utilize these connectors to establish secure and efficient connections between different circuit modules. Thanks to its plating options—gold, tin, or nickel—this connector offers excellent corrosion resistance and conductivity, making it ideal for high-frequency signal transmission and power delivery scenarios.

In industrial environments, the LP-P053 Single Row Pin Connector is often employed in automation equipment, control panels, and instrumentation. Its robust design, capable of withstanding a processing temperature of up to 260℃ for 10 seconds, guarantees durability during soldering processes. The connector’s packaging options, including reel, tube, tray, and polybag, cater to different manufacturing needs, facilitating automated assembly lines and reducing handling time.

The LP-P053 Pin Header Connector is also commonly used in telecommunications and networking devices, where reliable and fast connections are crucial. Its low contact resistance ensures minimal signal loss, improving overall device performance. Furthermore, the connector supports a supply ability of 100,000 pieces, with a minimum order quantity of 1,000 pieces, making it suitable for both small-scale and large-scale production runs.

From a logistics perspective, the product offers a competitive price of 0.0001 per piece and a delivery time frame of 7 to 10 days. Payment terms are flexible, including T/T, Western Union, and L/C, which facilitates smooth transactions globally. Overall, the LP-P053 Pin Header Connector is an excellent choice for manufacturers looking for a reliable, high-quality Single Row Pin Connector that meets rigorous industry standards and supports diverse application scenarios.

Customization:

LP brand offers high-quality PIN Header Connector model LP-P053, proudly made in China with ISO-9001:2000 certification. Our product customization services cater to a wide range of needs, providing Straight Pin Header Connector, Right Angle Pin Header, and Male Pin Header Connector types. You can choose from various insulator materials including LCP, NYLON, PA6T, and PBT+30%G.F (UL94V-0) to ensure durability and performance.

We offer pin numbers ranging from 2 to 40 pins, with options for Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows configurations. The connectors operate reliably in temperatures from -65°C to +125°C and have a durability rating of 100 cycles. Packaging options include Reel, Tube, Tray, or Polybag to meet your shipping and storage preferences.

Our minimum order quantity is 1000PCS, priced competitively at 0.0001 USD per unit, with a supply ability of 100,000PCS. Delivery time is typically 7 to 10 days, and payment terms are flexible, accepting T/T, Western Union, and L/C. Choose LP for your next project to get reliable, customizable PIN Header Connectors tailored to your specifications.

Support and Services:

Our PIN Header Connector product is designed to provide reliable and efficient electrical connections for a wide range of applications. For technical support, our team of experts is available to assist with product selection, installation guidance, troubleshooting, and customization options to meet your specific needs. We offer comprehensive services including detailed datasheets, application notes, and design assistance to ensure optimal performance of your connector solutions. Additionally, we provide warranty support and replacement services to guarantee customer satisfaction and product longevity. Please refer to the product documentation for detailed specifications and installation instructions.

Packing and Shipping:

Our PIN Header Connectors are carefully packaged to ensure maximum protection during transit. Each connector is placed in anti-static bags to prevent any electrostatic discharge damage. The connectors are then securely packed in sturdy cartons with cushioning materials to avoid any physical damage.

We offer reliable shipping options worldwide, with tracking available for all orders. Our logistics partners ensure timely delivery, and we provide estimated delivery times at checkout. For bulk orders, we recommend contacting our sales team to discuss customized packaging and shipping solutions.
