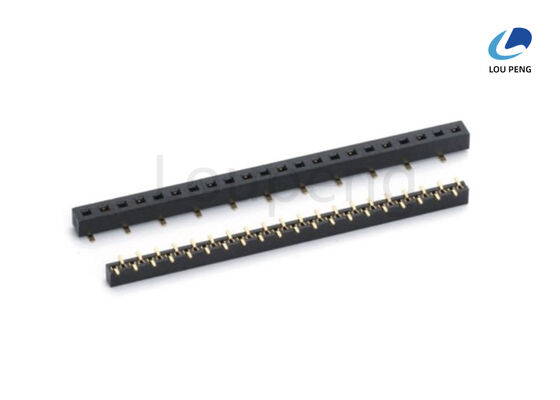

Usually Versatility Female Connector Header Pin Gold Plating Designed for Signal Transmission and Electrical Connectivity

Product Description:

The Female Header Connector is a high-quality, reliable component designed for various electronic applications, providing secure and efficient connections in circuit assemblies. This product is commonly known as a Female Inline Header Connector, Female Connector Header Pin, or Female Header Pin Connector, reflecting its versatile usage in different electronic setups. Engineered with precision, it ensures optimal electrical performance and mechanical stability, making it an essential part of many electronic devices and systems.

One of the standout features of this Female Header Connector is its insulator material. The insulator is made from premium-grade LCP (Liquid Crystal Polymer), Nylon, or PA6T, all meeting the UL94V-0 flammability rating. This ensures excellent heat resistance and flame retardant properties, making the connector safe and durable for use in demanding environments. The choice of insulator material contributes significantly to the connector's ability to maintain performance under thermal stress and mechanical strain.

Thermal resilience is a critical aspect of this Female Inline Header Connector. It can withstand a maximum processing temperature of 230℃ for 30 to 60 seconds, allowing for secure soldering during assembly without compromising the integrity of the connector. Additionally, it can tolerate brief exposure to 260℃ for up to 5 seconds, which is particularly useful during reflow soldering processes. This thermal endurance makes it suitable for modern manufacturing techniques and ensures a stable connection throughout the product’s lifecycle.

The mounting flexibility of this Female Connector Header Pin is another important attribute. It supports both Through Hole and Surface Mount Technology (SMT) mounting types, offering versatility for different PCB designs and assembly requirements. Whether the application demands a robust mechanical connection with Through Hole mounting or a more compact, automated process with SMT, this connector meets those needs effectively. This dual mounting capability expands its applicability across a wide range of electronic devices and circuit board configurations.

Plating options for the Female Header Pin Connector enhance both conductivity and corrosion resistance. The contacts can be plated in either gold or tin, depending on specific application requirements. Gold plating offers superior corrosion resistance and excellent electrical conductivity, making it ideal for high-reliability applications where long-term performance is critical. Tin plating, on the other hand, provides a cost-effective solution with good solderability and reasonable durability. These plating options ensure that the connector maintains low contact resistance and reliable electrical connections over time.

Speaking of electrical performance, the contact resistance of this Female Header Connector is maintained at a maximum of 30 milliohms. This low contact resistance is crucial for minimizing power loss and ensuring efficient signal transmission, which is vital for high-speed and sensitive electronic circuits. The design and materials used in the contacts contribute to this excellent electrical characteristic, promoting stable and consistent connections even under varying environmental conditions.

In summary, the Female Inline Header Connector, also known as the Female Connector Header Pin or Female Header Pin Connector, is a robust and versatile component tailored for modern electronic assemblies. Its high-quality insulator materials, excellent thermal endurance, flexible mounting options, and superior plating choices make it a reliable choice for engineers and manufacturers. With low contact resistance and exceptional durability, this connector guarantees long-lasting performance, making it an indispensable element in various electronic applications ranging from consumer electronics to industrial equipment.

Features:

• Product Name: Female Header Connector
• Contact Material: Copper Alloys
• Working Temperature Range: -40 ℃ to +105 ℃
• Contact Resistance: Maximum 30mΩ
• Available Pitch Options: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm
• Insulator Materials: LCP, Nylon, PA6T (UL94V-0 Rated)
• Also known as Female Inline Header Connector, Female Electrical Header Connector, and Female Header Pin Connector

Technical Parameters:

Applications:

The LP Female Header Connector, model number LP-FH025, is a versatile and reliable component widely used in various electronic and electrical applications. Manufactured in China and certified under ISO-9001:2000, this connector is designed to meet high-quality standards, ensuring durability and performance. With a supply ability of 100,000 PCS and a minimum order quantity of 1,000 PCS, the LP Female Electrical Header Connector is ideal for large-scale production and industrial use.

The Female Inline Header Connector is especially suitable for scenarios requiring secure and stable electrical connections. Its housing, made from Polyester (UL94V-0), combined with PA6T material reinforced with 30% glass fiber, provides excellent mechanical strength and heat resistance. The operating temperature range of -40° to +105° Celsius makes it perfect for use in harsh environments, including automotive electronics, industrial machinery, and consumer electronics, where temperature fluctuations are common.

Packaging options such as reels, tubes, trays, and polybags ensure the Female Wire Header Connector can be handled efficiently during manufacturing and assembly processes, reducing the risk of damage and facilitating automated installation. This product’s compact and robust design makes it an excellent choice for connecting wires and cables in circuit boards, control panels, and communication devices, offering reliable electrical connections with minimal signal loss.

The LP-FH025 Female Electrical Header Connector is commonly used in applications like telecommunications equipment, computer hardware, automotive wiring harnesses, and industrial automation systems. Its compliance with the PA6T standard guarantees high insulation resistance and flame retardancy, crucial for maintaining safety and performance in electrical systems.

Customers benefit from a competitive price point of 0.0001 per unit and flexible payment terms including T/T, Western Union, and L/C, making procurement straightforward and cost-effective. Delivery is prompt within 7 to 10 days, supported by efficient logistics and the use of the Openresty server system to manage orders smoothly. In summary, the LP Female Inline Header Connector is an essential component that ensures secure, durable, and efficient electrical connections across a broad range of industries and applications.

Customization:

Our Female Socket Header Connector, model LP-FH025, is a high-quality product from the trusted LP brand, manufactured in China. With ISO-9001:2000 certification, we ensure top-notch quality and reliability for every Female PCB Header Connector we produce.

We offer customization services with a minimum order quantity of 1000PCS, making it ideal for both small and large scale production. The Female PCB Header Connector is designed to operate efficiently within a working temperature range of -40 ℃ to +105 ℃, featuring a durable polyester (UL94V-0) housing and an insulation resistance of at least 1000MΩ.

Our product standard is PA6T, and it is available in various packaging options including Reel, Tube, Tray, and Polybag to meet your specific needs. We maintain a supply ability of 100000PCS, ensuring timely delivery within 7 to 10 days.

Pricing is competitive at 0.0001 USD per unit, with flexible payment terms including T/T, Western Union, and L/C. For further inquiries or customization requests, please contact COPPER ALLOYS, our dedicated support team.
