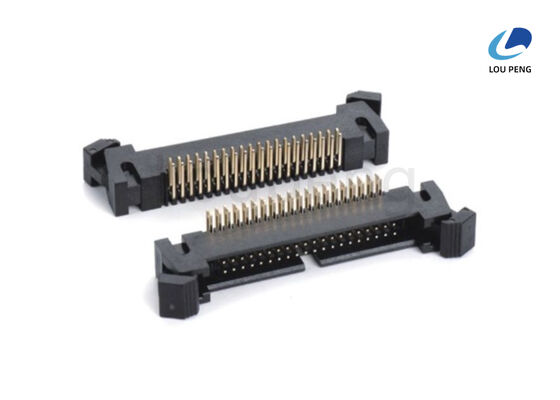

Surface Mount IDC Socket BOX Header Featuring AC 500V Dielectric Withstanding and 3A Per Contact Current Rating for Power Distribution

Product Description:

The IDC Socket / BOX Header product is a highly reliable and efficient connector solution designed to meet the demanding requirements of modern electronic applications. Engineered with precision, this connector type offers exceptional performance characteristics, making it an ideal choice for a wide range of electronic and electrical assemblies. The Box Header IDC Connector is specifically designed to provide secure and stable connections, ensuring consistent signal integrity and durability in various environments.

One of the standout features of the IDC Socket / BOX Header product is its outstanding insulation resistance. With a minimum insulation resistance of 1000M Ohms, this connector guarantees excellent electrical isolation between contacts, reducing the risk of short circuits and enhancing overall device safety. This high insulation resistance is crucial for applications where maintaining signal clarity and preventing electrical interference are paramount.

The mounting type of this IDC Box Header Connector is versatile, supporting both through-hole and surface mount configurations. This flexibility allows for seamless integration into different PCB designs and manufacturing processes, catering to diverse production needs. Through-hole mounting ensures robust mechanical strength, while surface mount technology (SMT) provides efficient space utilization on compact circuit boards. This adaptability makes the IDC Box Header Connector suitable for various electronic devices, from consumer electronics to industrial equipment.

Regarding electrical performance, the IDC Socket Connector Assembly boasts a dielectric withstanding voltage of AC 500V. This means the connector can safely withstand high voltage stress without breakdown or degradation, ensuring reliable operation even in challenging electrical environments. This characteristic is particularly important for industrial and automotive applications where voltage fluctuations and spikes are common.

Contact resistance is another critical parameter where this IDC Socket / BOX Header product excels. With a maximum contact resistance of 20M Ohms, the connector guarantees minimal signal loss and high conductivity. Low contact resistance ensures that electrical signals are transmitted efficiently, which is essential for maintaining data integrity and reducing power consumption in electronic circuits. This makes the IDC Socket Connector Assembly an excellent choice for applications requiring precise and stable electrical connections.

The current rating of the IDC Box Header Connector is rated at 3A per contact, indicating its capability to handle moderate power loads safely. This current capacity is sufficient for most signal and low-power power applications, making it a versatile solution for a broad spectrum of electronic devices. Whether used in communication equipment, computing devices, or control systems, this connector provides reliable current handling without compromising performance or safety.

In addition to its impressive electrical and mechanical features, the IDC Socket / BOX Header product is designed for ease of use and assembly. The insulation displacement contact (IDC) technology allows for quick and reliable wire termination without the need for stripping insulation, saving time and reducing assembly costs. This user-friendly design is particularly beneficial in high-volume manufacturing environments, where efficiency and consistency are critical.

The IDC Box Header Connector also offers durability and long service life due to its robust materials and construction. The connectors are typically made from high-quality plastics and metals that resist corrosion, wear, and environmental stress. This ensures that the IDC Socket Connector Assembly maintains its performance over extended periods, even in harsh conditions.

Overall, the IDC Socket / BOX Header product is a comprehensive connector solution that combines high insulation resistance, flexible mounting options, excellent dielectric properties, low contact resistance, and sufficient current rating. Its compatibility with standard industry specifications and ease of installation make it a preferred choice for engineers and designers seeking reliable and efficient interconnection solutions. The Box Header IDC Connector and IDC Box Header Connector are indispensable components in achieving secure, durable, and high-performance electronic assemblies.

Features:

• Product Name: IDC Socket / BOX Header
• Type: Vertical, Right Angle, SMT, Double Row
• Operating Temperature Range: -65°C To +125°C
• Current Rating: 3A Per Contact
• Color: Black (standard)
• Insulator Material: High Temperature Thermoplastic
• Compatible with IDC Cable Socket Connector applications
• Suitable for use as an IDC Ribbon Cable Socket
• Functions as an IDC Box Header Connector for various electronic devices

Technical Parameters:

Applications:

The LP brand presents the LP-BX021 model, a high-quality Insulation Displacement Contact (IDC) Socket and Box Header IDC Connector designed to meet diverse electronic connection needs. Originating from China and certified under ISO-9001:2000, this product guarantees reliability and superior performance in various applications. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, the LP-BX021 is an excellent choice for manufacturers and engineers requiring cost-effective and dependable connectors.

The LP-BX021 IDC Socket and Box Header is widely used in electronic manufacturing, telecommunications, industrial automation, and consumer electronics. Thanks to its multiple pitch options (0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm) and a versatile range of positions from 2 to 40, it easily adapts to various circuit board designs and wiring configurations. The Insulation Displacement Connector Socket ensures fast and secure wire connections without the need for stripping insulation, making it ideal for high-volume assembly lines and applications where time efficiency is crucial.

Its robust construction features a PA6T UL 94V-0 black insulator, providing excellent flame retardance and mechanical stability, while the contact resistance remains low at 20m Ohms max, ensuring consistent electrical conductivity. The dielectric withstanding voltage of AC 500V further guarantees insulation integrity and safety in demanding environments. These attributes make the LP-BX021 suitable for use in industrial control systems, automotive electronics, and communication equipment where reliability and safety are paramount.

The packaging options including Reel, Tube, Tray, and Polybag, cater to various handling and storage preferences, facilitating seamless integration into automated production processes. With a supply ability of 100,000PCS and a delivery time of 7 to 10 days, LP ensures prompt fulfillment of orders, supporting large-scale projects and urgent requirements. Payment terms such as T/T, Western Union, and L/C provide flexibility for international transactions.

In summary, the LP-BX021 Insulation Displacement Contact Socket and Box Header IDC Connector is an indispensable component in modern electronics, offering durability, ease of use, and high performance. It is perfectly suited for occasions and scenarios ranging from prototype development and small batch production to mass manufacturing in sectors like telecommunications, automotive, industrial automation, and consumer electronics.

Customization:

LP presents the LP-BX021 IDC Box Header Connector, a high-quality IDC Ribbon Cable Socket designed and manufactured in China. Certified with ISO-9001:2000, this product ensures superior reliability and performance for various electronic applications.

Our IDC Box Header Connector offers a wide range of customization options, including the number of positions from 2 to 40, with contact material made of durable Phosphor Bronze. It operates efficiently within a temperature range of -65°C to +125°C, making it suitable for diverse environments.

The product is available in multiple types such as Vertical, Right Angle, SMT, and Double Row, with versatile mounting options including Through Hole and Surface Mount. Packaging is flexible to meet your needs, offered in Reel, Tube, Tray, or Polybag formats.

With a minimum order quantity of 1000PCS and a competitive price starting at 0.0001 per unit, LP guarantees a supply ability of 100,000PCS. Delivery time is prompt, typically between 7 to 10 days, ensuring your project timelines are met efficiently.

We accept various payment terms including T/T, Western Union, and L/C to facilitate smooth transactions. Choose LP's LP-BX021 IDC Box Header Connector and IDC Ribbon Cable Socket for reliable, customizable connectivity solutions tailored to your exact requirements.

Support and Services:

Our IDC Socket / BOX Header products are designed to provide reliable and efficient connections for various electronic applications. For technical support, please refer to the product datasheets and installation manuals available on our website. These documents include detailed specifications, pin configurations, and recommended usage guidelines to ensure optimal performance.

If you require assistance with installation, troubleshooting, or customization of IDC Socket / BOX Header connectors, our technical support team is available to provide expert advice and solutions. We recommend verifying compatibility with your system requirements and reviewing the environmental and mechanical constraints outlined in the product documentation before deployment.

For service inquiries, including repair, replacement, or warranty claims, please ensure you have your product details and purchase information ready. Our support process aims to minimize downtime and maintain the integrity of your electronic assemblies.

We also offer additional services such as custom configurations, bulk order support, and technical training sessions to help you maximize the benefits of our IDC Socket / BOX Header products.

Packing and Shipping:

Product Packaging:

The IDC Socket / BOX Header is carefully packaged to ensure protection during transit. Each unit is placed in anti-static bags to prevent electrostatic discharge damage. Multiple units are then packed into sturdy cardboard boxes with adequate cushioning materials to minimize movement and impact. Packaging is labeled clearly with product details, quantity, and handling instructions.

Shipping:

We offer reliable shipping options to deliver the IDC Socket / BOX Header to your location safely and on time. Products are shipped via trusted carriers with tracking information provided for every order. Shipping methods include standard, expedited, and express delivery, depending on your requirements. International shipping is also available with proper customs documentation included.
